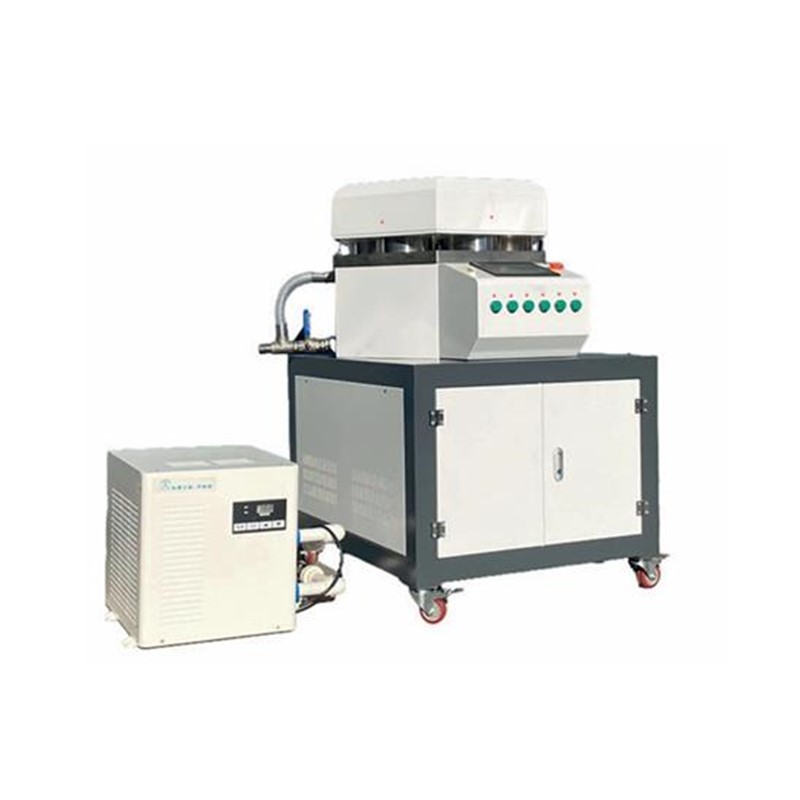

Abrasion Testing Machine for PE-UHMW

Abrasion Testing Machine for PE-UHMW

Standards

•  ISO15527

•  SH/T 1818-2017

• TCSTM 00173-2019

• DB51/T 2450—2018

Application

Abrasion tester is mainly for determination ultra-high molecular weight polyethylene (PE-UHMW) and PE-HD abrasion performance. It is an necessary testing machine for resin products manufacturers factory inspection, downstream processing enterprises entrance inspection and product comparison.

It is controlled by the microcomputer, the real-time rate of rotation and temperature can be accurately displayed on the panel, at the same time may do the countdown setting on the panel, this control way ensures accurate values, high precision and no hysteresis phenomenon.

Features

• Same rate of rotation for all 6 stations

The instrument is set up with 6 test stations, it can be done at the same time on 6 specimens, each station is connected with the synchronous belt, and the spindle motor speed without deviation to ensure the consistency of its rate of rotation, which greatly improves the comparability of the results.

• Automatic lifting system, high test efficiency and good safety

• Immersed abrasion test cup design

• Separate cooling system

• Rotating specimen disk, external suspension stirring design

• Automatic test, real-time monitoring test paramters

• Display panel may set the test time (countdown mode, the system defaults 3 hours), the timing device is automatically activated when test starts, the display panel can show the current slurry temperature and specimen rotation, simplifying the operating steps and work intensity.




Technical Parameters

1. Number of instrument test stations: 6

2. Rate of rotation: 800  to 1400r/min

3. Rote control precision: 1% (≥1000r/min);  10r/min (＜1000r/min)

4. Rate of rotation display resolution: 1r/min

5. Timing accuracy: 1s

6. Timing deviation: 0.1%

7. Temperature display resolution: 0.1 ℃

8. Temperature control accuracy: ± 0.5 ℃

9. Tank volume: 35 liters

10. Mortar ratio in each test cup: silica sand 450g of silica san, 300g of water

11. Refrigeration power: 5.1KW

12. Refrigeration medium: water

13. Power supply: 220VAC  2Kva

14. Dimensions (L ×W × H): 1.2 × 0.5 × 1.2 (m)

15. Weight: 220kg
