Rubber Vulcanizing Press Machine / Rubber Vulcanizer Machine (5T/10T/20T/30T)

Rubber Vulcanizing Press Machine / Rubber Vulcanizer Machine (5T/10T/20T/30T)

Product Item : ZY-6014H
Category： Plastic tester machine
Rubber Vulcanizing Press Machine
Vulcanizing Press Machine
Rubber Vulcanizer Machine
Vulcanizer Machine
Product description：The Rubber Vulcanizing Press Machine ZY-6014H is primary equipment used for pressing and molding various rubber molded and non-molded products. It can also be used for pressing various thermosetting p
INQUIRY

Rubber Vulcanizing Press Machine Introduction

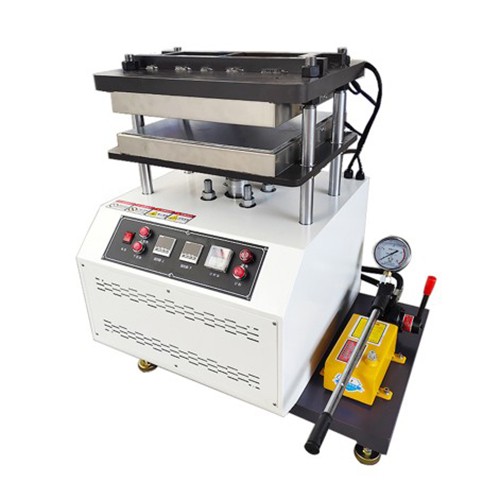

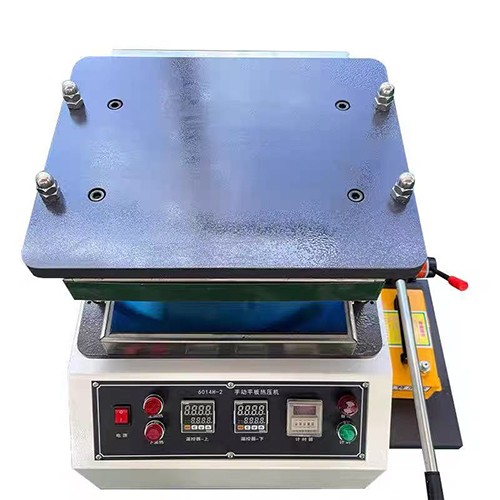

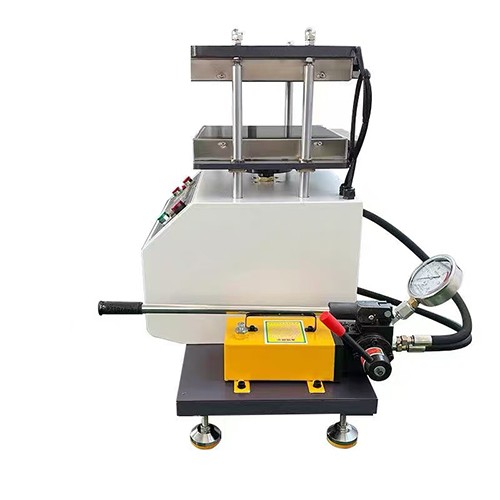

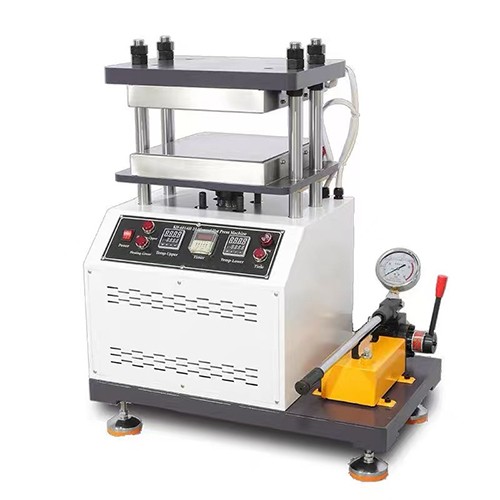

The Rubber Vulcanizing Press Machine ZY-6014H is primary equipment used for pressing and molding various rubber molded and non-molded products. It can also be used for pressing various thermosetting plastics and foamed rubber and plastic products. It features an independent power unit and electrical system, with centralized button control. Both working pressure and heating temperature are adjustable within a certain range. This model is manual type.

Rubber Vulcanizing Press Machine Technical Data

Item	ZY-6014H‑10	ZY‑6014H‑20	ZY‑6014H‑30
Pressure Capacity	10T	20T	30T
Pressure Gauge	Manual hydraulic pressure gauge control	Manual hydraulic pressure gauge control	Manual hydraulic pressure gauge control
Platen Size	300×300 mm or 250 x 250 / 350 x 350 /400 x 400 /450 x 450 / 500 x 500 / 600 x 600mm	300×300 mm or 250 x 250 / 350 x 350 /400 x 400 /450 x 450 / 500 x 500 / 600 x 600mm	300×300 mm or 250 x 250 / 350 x 350 /400 x 400 /450 x 450 / 500 x 500 / 600 x 600mm
Platen Hardness	50‑60HRC	50‑60HRC	50‑60HRC
Platen Flatness	≤0.03 mm	≤0.03 mm	≤0.03 mm
Platen Parallelism	≤0.16 mm	≤0.16 mm	≤0.16 mm
Temperature Range	Ambient ~ 250℃【Max. 500℃ customizable】	Ambient ~ 250℃【Max. 500℃ customizable】	Ambient ~ 250℃【Max. 500℃ customizable】
Temperature Uniformity	2.5℃ 【Larger platen leads to poorer temperature uniformity】	2.5℃ 【Larger platen leads to poorer temperature uniformity】	2.5℃ 【Larger platen leads to poorer temperature uniformity】
Temperature Control Mode	PID auto‑tuning with high‑precision sensor, display accuracy: ±0.1℃	PID auto‑tuning with high‑precision sensor, display accuracy: ±0.1℃	PID auto‑tuning with high‑precision sensor, display accuracy: ±0.1℃
Timer	LED timing range: 0.1S ~ 99min ~ 9.9hr	LED timing range: 0.1S ~ 99min ~ 9.9hr	LED timing range: 0.1S ~ 99min ~ 9.9hr
Heat‑up Time	Ambient ~160℃ approx. 15 min	Ambient ~160℃ approx. 15 min	Ambient ~160℃ approx. 15 min
Heating Plates	2 pcs, independent temperature setting for each plate	2 pcs, independent temperature setting for each plate	2 pcs, independent temperature setting for each plate
Heating Method	Electric heating	Electric heating	Electric heating
Cylinder Stroke	Max.100 mm【Customizable】	Max.100 mm【Customizable】	Max.100 mm【Customizable】
Cylinder Speed	5 mm/s【Manual】	5 mm/s【Manual】	5 mm/s【Manual】
Pressure Gauge Range	0‑200kg/sq.cm	0‑200kg/sq.cm	0‑200kg/sq.cm
Main Unit Dimension	950×550×700 mm	950×550×800 mm	950×550×900 mm
Power Supply	3φ, AC220V	3φ, AC220V	3φ, AC220V
Weight	≈270 kg	≈330 kg	≈370 kg

(Pressure capacity 5 ton can be custom made)

Rubber Vulcanizing Press Machine Configuration List

Name	Qty.	Note
Hydraulic cylinder	1 Unit
Manual hydraulic pump	1 Unit	Japanese imported sealing rings
RVG-03 Guided relief valve	1 Unit	Taiwan/YUTiEN
Temperature controller	1 Unit	Imported
Heating elements	12 PCS	Imported American Materials
Filter	1 Unit	USA/Foise
Pressure Gauge	1 Unit
Exhaust fan	1 Unit	NEDFON
Residual current device	1 Unit	SCHNEIDER
Fuse	1 Unit	Made in China
Solenoid valve	1 Unit	SCHNEIDER
Contactor	1 Unit	SCHNEIDER
Main Machine with Hot Pressure Plate	1 Unit	Made in China
