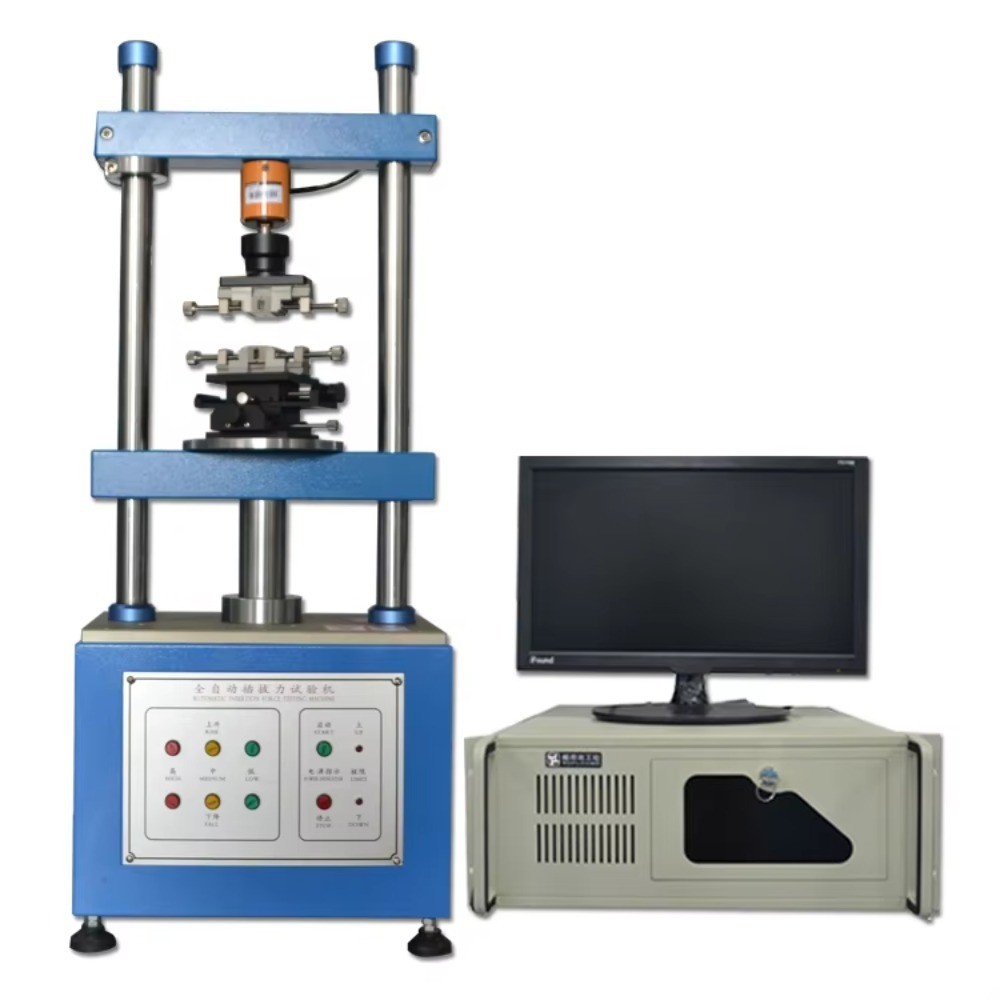

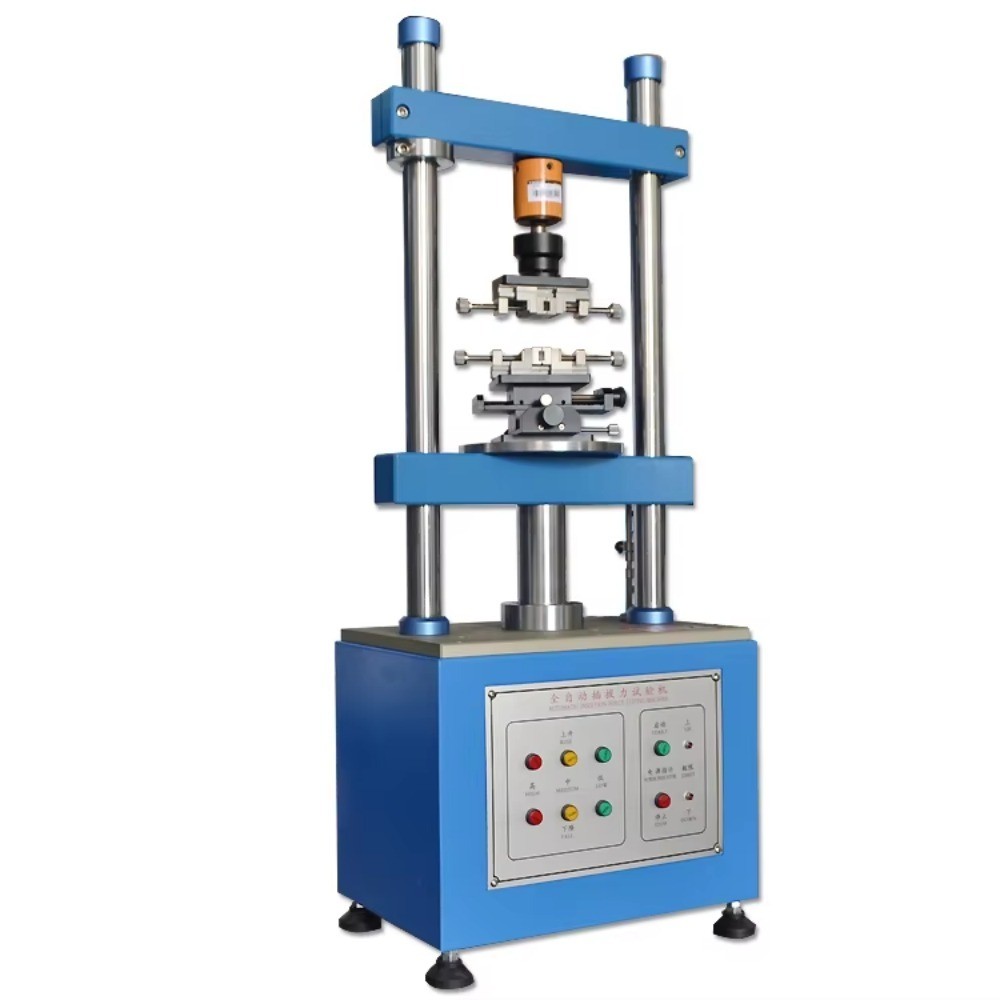

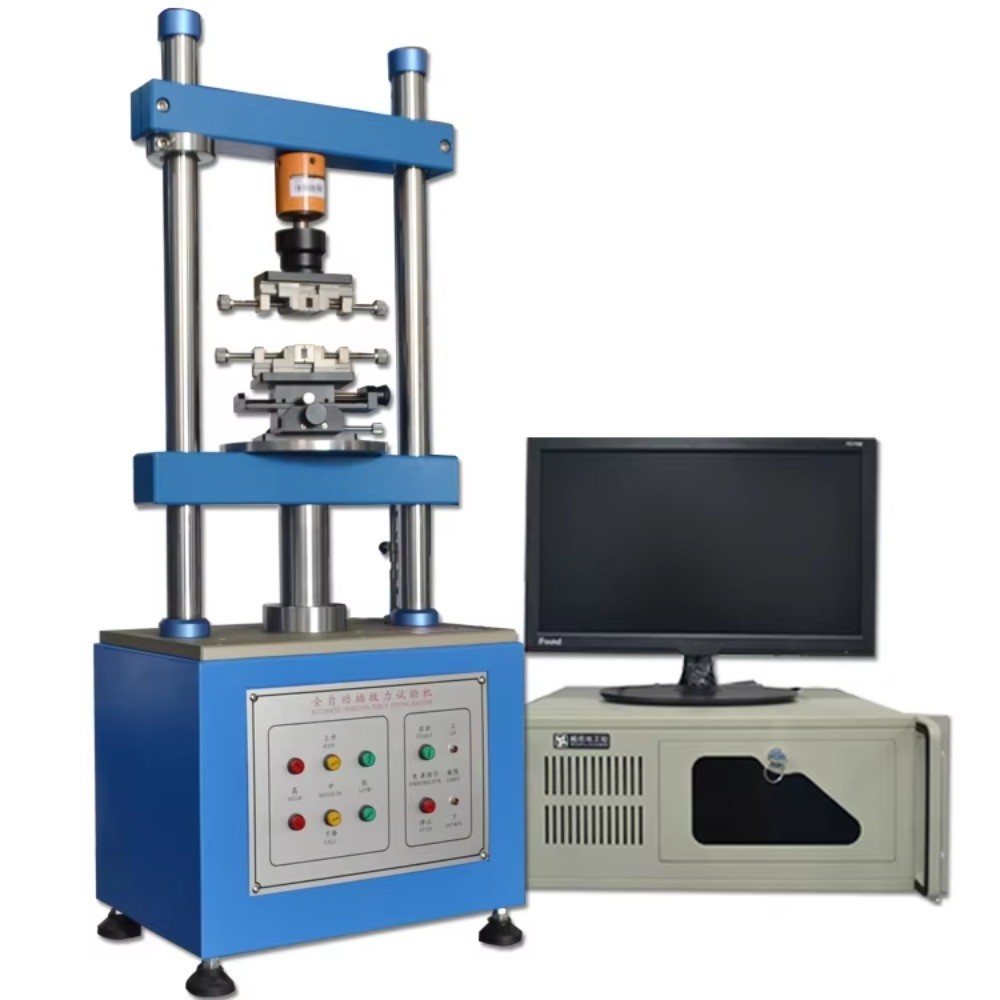

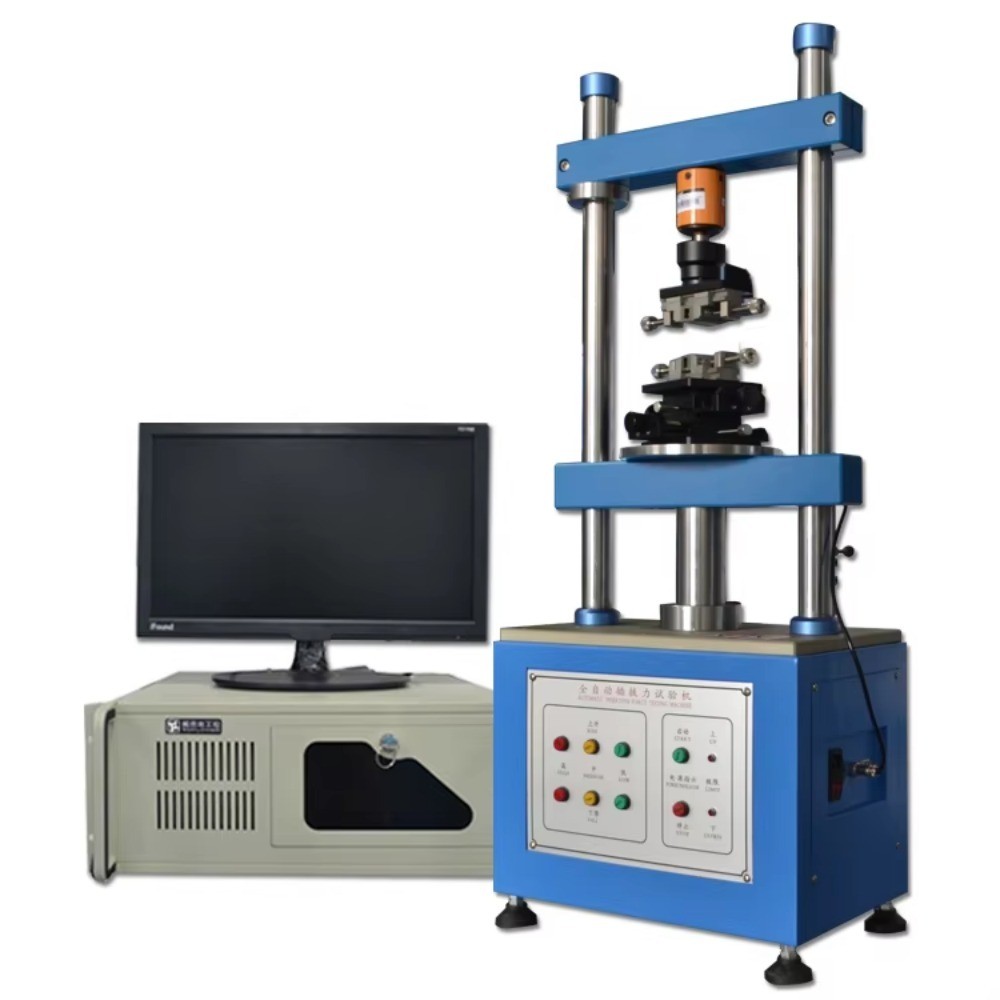

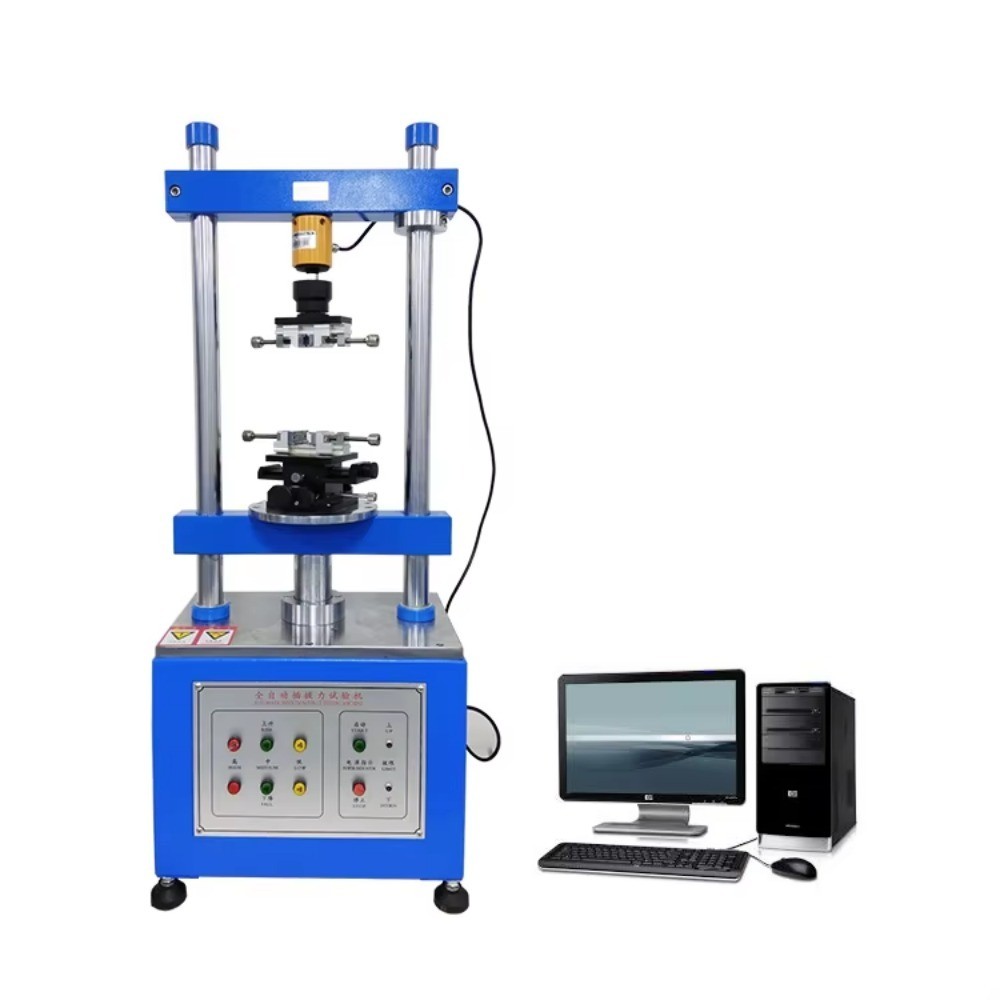

Plugging and Unplugging Force Tester

Product Introduction

The automatic insertion force tester is suitable for connector insertion and extraction force testing, use unique equipment to automatically match to find the heart of various special clamp connectors, the stopper allows for completely accurate force results. All test information is set by the computer, which can automatically store test conditions, test results, (load-displacement), curves, life decay curves and automatic generation of reports.

Application
Test the hole plug connector.

Test line for connector plugs

Life test plug connectors.

Single-pin connectors and plastic hold tests

Connector Testing.

Spring test

Impedance measurements can be performed simultaneously (optional)

Various compressive and tensile fracture strength tests

Product Features

1. All test information is set by computer and can be automatically stored: test

conditions, test results, (load-displacement), curves, life decay curves, and automatically generate reports.

2. High precision: load resolution: 0.01gf, displacement: 0.001mm

3. Adopt high-precision explosive load cell, repeat error: 0.01%

4. High stability: Driven by Japanese Panasonic servo motor and no space, no ground ball screw drive, available

Noise and resonance are eliminated.

5. Can enter the upper and lower limit conditions, and automatically rebel against the test results pass or fail, maximum, minimum, mean and standard deviation, etc.

Technical Data
