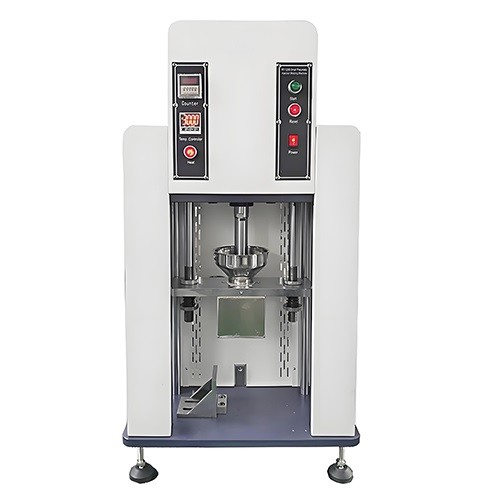

Prototype Molding Machine

Product Item : MM-839-2
Category： Products
Prototype Molding Machine
Molding Machine
injection molding machine
Product description：The injection molding prototype machine is a mechanical device. It is usually composed of an injection system, a mold clamping system, a pressure transmission system, an electrical control system, a l
INQUIRY

The injection molding prototype machine is a mechanical device. It is usually composed of an injection system, a mold clamping system, a pressure transmission system, an electrical control system, a lubrication system, a heating and cooling system, a safety monitoring system, etc.

The injection system is one of the most important components of the injection molding machine. Generally, there are three main forms: plunger type, screw type, and screw pre-plastic plunger injection type. The most widely used one is the screw type. Its function is to heat and plasticize a certain amount of plastic within a specified time in one cycle of the injection molding machine, and then inject the molten plastic into the mold cavity through the screw at a certain pressure and speed.

Prototype Molding Machine Technical Data

Temperature Range	RT to 450℃ (±3℃) [Maximum 450℃]
Plunger Diameter [mm]	35mm
Maximum Compression Stroke [mm]	150mm
Heating Chamber Size [mm]	35 * 110
Maximum Injection Volume	40g
Injection Pressure	1 Ton
Injection Time	0-9999s [Adjustable]
Mold Cavity Structure	Removable mold cavity, effectively prevents material cross-contamination
Safety Protection	Protective door + Safety grating
Max Mold Installation Size	200 * 200 * 210
Machine Weight [kg]	1000W
Voltage	220V/60Hz
Air Supply	0.6MPa
Control Method	Pneumatic
Overall Dimensions [mm]	600 * 660 * 1400
