SPF Testing / UV Transmittance Analyzer System

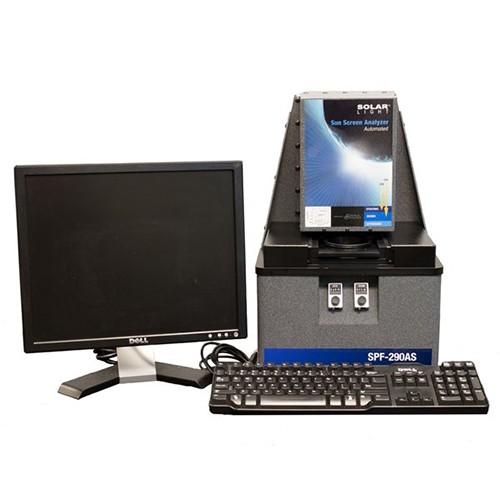

Product Item : SPF-290AS
Category： UV Spectrophotometer & Spectrometer
Sunscreen Protection Factor Analyzer
UV spectrophotometer
SPF Testing
UV Transmittance Analyzer System
Product description：The SPF-290AS is a UV spectrophotometer designed and optimized for the determination of sun protection values (SPF UVA, Critical Wavelength, etc.)on a variety of sunscreens and cosmetic products.
INQUIRY

The SPF-290AS is a UV spectrophotometer designed and optimized for the determination of sun protection values (SPF UVA, Critical Wavelength, etc.)on a variety of sunscreens and cosmetic products.

Covering both UVB and UVA spectral regions, the system automatically scans from 290 to 400 nm, accumulating and storing data at intervals of 1,2 or 5 nm. The monochromatic protection factor (mPF)is determined for each of the selected wavelengths and is used to calculate solar protection values using solar irradiance curves and biological action spectra programmed into the software(but which can be easily modified).

Sunscreen Protection Factor Analyzer Features

Fully automated multi-point sampling
Two modes of automated operation
Intuitive software features
Validation Kit Included
High correlation with in-vivo testing

Sunscreen Protection Factor Analyzer Technical Data

Wavelength Range	290 – 400 nm (Range Specified By International Methods)
Wavelength Accuracy	0.2% (0.58 nm – 0.80 nm)
Wavelength Reproducibility	0.25 nm
Spectral FWHM Bandwidth	1.66 nm
Absorbance	0 – 3.2 A (Dual Doped PMMA Method)
SPF Measurement Range	1 – 100+
Scan Time	As Little As 24 Seconds
Wavelength Step Interval	1 nm, 2 nm, or 5 nm (User selectable)
Lamp	Power Stabilized Xenon CW125 W (operated at 75 W)
Detector	High Sensitivity Multialkali side-on PMT
Sample Positioning	Automated X-Y Stage
Power Options	110V AC, 60 Hz or 220V AC, 50 Hz
