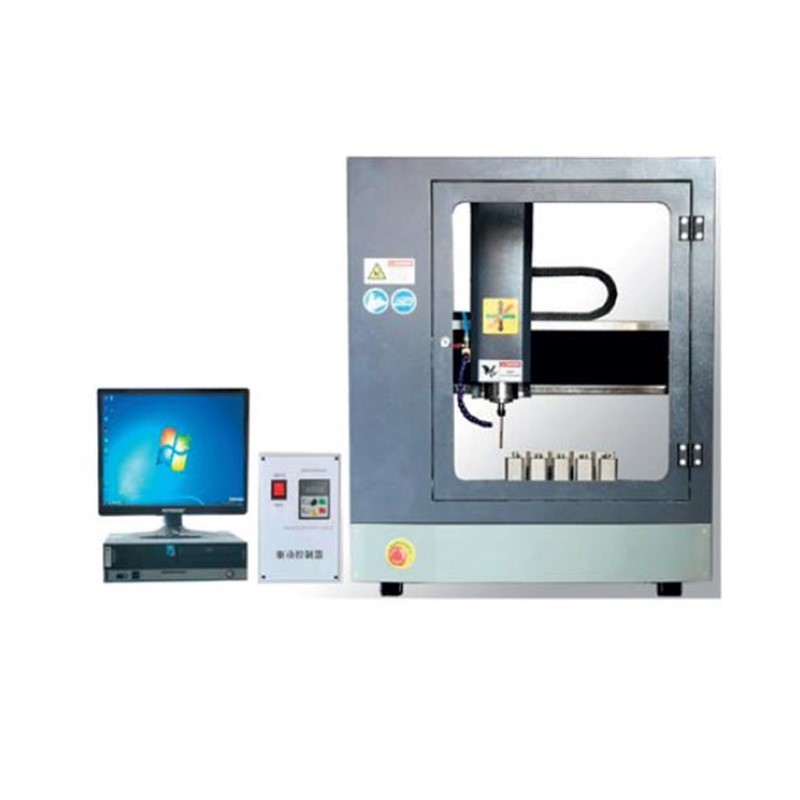

CNC Polymer Specimen Milling Machine with ISO for Plastic

Standards

·        ISO 179/180

·        ISO 527

·        ISO 6259

·        ISO 16770

·        ASTM D 638

·        ASTM D 1822

Application

Tensile, pressure, bending and flexural impact tests require bar-shaped samples with specific dimen­sions.

A computer-controlled (CNC) test bar milling mach­ine with installed machining programs and special clamping devices will prepare samples for all common test bar shapes.

Features

·        Pre-configured machining programs

·        Protective doors with safety lock

·        Clean workstation thanks to machine enclosure

·        Delivered with workbench

Main frame features

1. A table-top unit controlled by a computer.

2. Equipped with a specialized sample loading device, up to five test bars can be milled at once.

3. An extraction system keeps the work station clean.

4. Precision machining is performed using CNC machining center technology.

5. Due to the frequency adjustable spindle speed, the speed can be varied depending on the workload.

6. Integrated large flow refrigeration pump contributes to a longer machine lifetime;

7. Axis limit is introduced to prevent accidental operation or collisions;

8. Hand wheel is used for manual knife alignment and micro-adjustment.

Controller Features

·       The control system is based on the NCStudio control software developed under the Win7 platform, with simple interface and easy operation.

·      By means of preconfigured machining programs for all common bar shapes, as well as visualization via Windows, this milling machine can be operated very easily. It can also be edited manually using CAD or other design software.

·     With the functions of machining track, machining simulation, program editing, manual control, automatic control.

Technical Parameters

1.      Specimen thickness: 3mm to 60mm ( 80mm is available)

2.      Outside pipe diameters: φ50mm to φ120mm

3.      Plate length: ≤150mm

4.      X axial travel: 300mm

5.      Y axial travel: 400mm

6.      Z axial travel: 100mm

7.      Spindle speed: ≤24000 r/min

8.      Repeatability: 0.05mm

9.      Power supply: 220V 50Hz 3,3Kw

10.  Dimension: 850mm×780mm×1050mm

11.  Weight: 60kg
