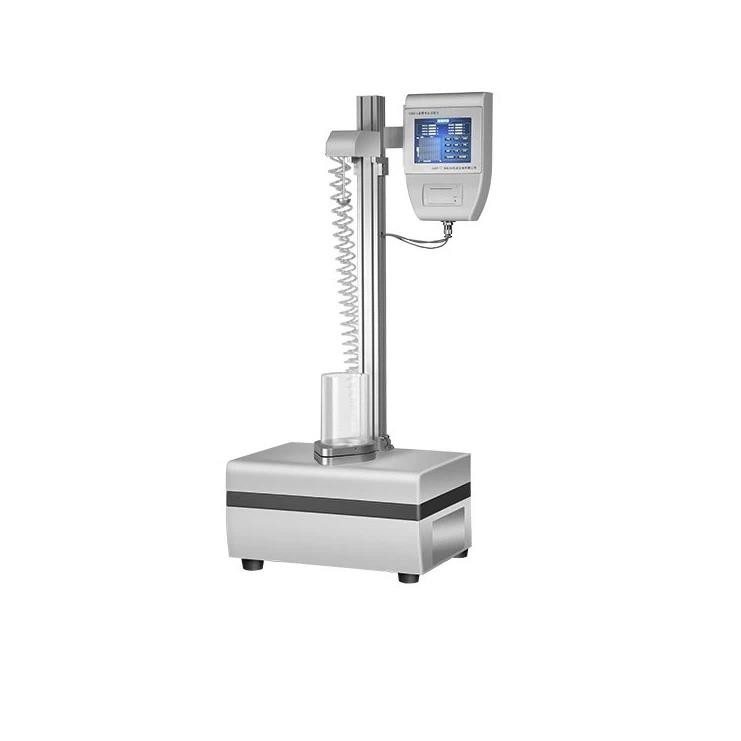

Falling Dart Impact Tester

Standards

ASTM D1709, JIS K7124

Measuring range

Method A:50~2000g，Method B:300~2000g

Accuracy

1g

Weight of dart head

50-2000g,5g/weight increase，weight error≤0.5%

Dimension of dart head

Method A:Φ38±1mm，Method B:Φ50±1mm

Measurements of weights

5g，15g，30g，45g，80g，90g (8 pieces for each)

Dimension of weights

Method A:Φ30mm，Method B:Φ45mm

Height

1500mm/660mm

Dimension of clip

Pneumatic clip，outer:150mm，inner:125mm

Dimension of sample

180×180mm

Gas source

compressed air，0.6~0.8MPa

Gas source port

Φ8mm gas tube

Dimension

550×380×2300mm

Weight

70kg
