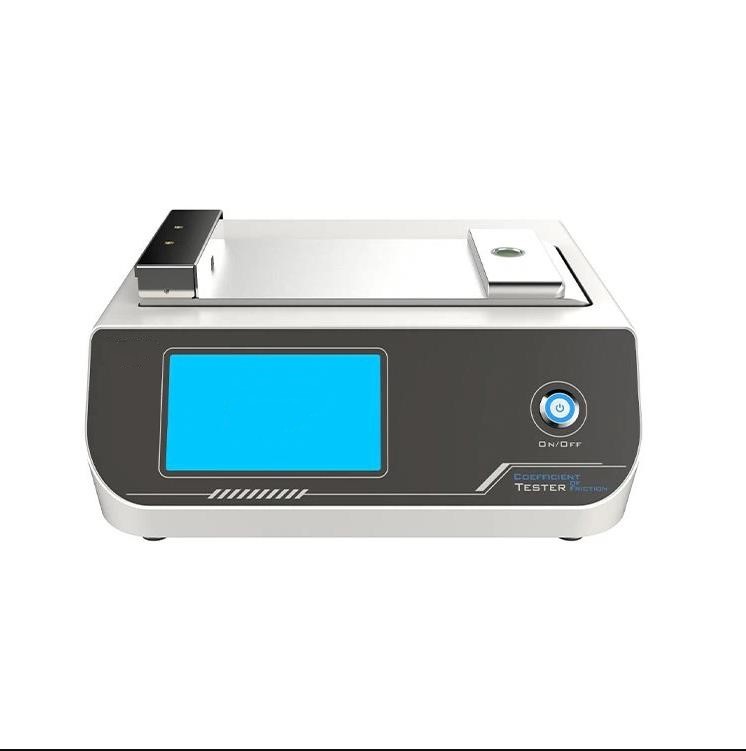

Coefficient of Friction Measuring Devices
- Product Item : ZHIYI-816
- Category： Paper, Packaging & Print
- Product description：Coefficient of Friction Measuring Devices
Specifications
|
Item |
Technical Parameters |
|
Standards |
ASTM D202、ASTM D4918、TAPPI T815 |
|
Angle Range |
0°~ 85° |
|
Accuracy |
0.01° |
|
Angular Velocity |
0.1°/s~10.0°/s |
|
Precision |
0.1%FS |
|
Specifications of Sliding block |
63.5*63.5mm/200g |
|
90*100mm/1300g(optional) |
|
|
63*75*25mm/235±10g(optional) |
|
|
Customization is available for other masses |
|
|
Weight |
9kg |
|
Instrument size |
400mm(L)*366mm(W)*173mm(H) |
|
Display |
Touch screen |
|
Power supply |
AC220V 50Hz |
Features
◆ Imported component, high precision.
◆ It can be tested independently without the computer, data automatically processed.
◆ Professionally used to the setting of static coefficients of friction of samples on the inclined surface.
◆ The functions of freely changeable angular velocity and automatic plane reset achieve test requirements under different conditions.
◆ Professional software, touch screen,easy operate and more convenient; display real-time curve.
◆ Can print test report with micro-printer.
