Airtight Leak Detector

Product Item : LK-10
Category： Other
Airtight Leak Detector
Air Leak Detector
Air Leak Tester
Air Leak Test System
Product description：The Airtight Leak Detector inputs compressed air with precise pressure control into the test product. The current test product flow value is detected by a high-sensitivity gas flow sensor, and then th
INQUIRY

Product Introduction

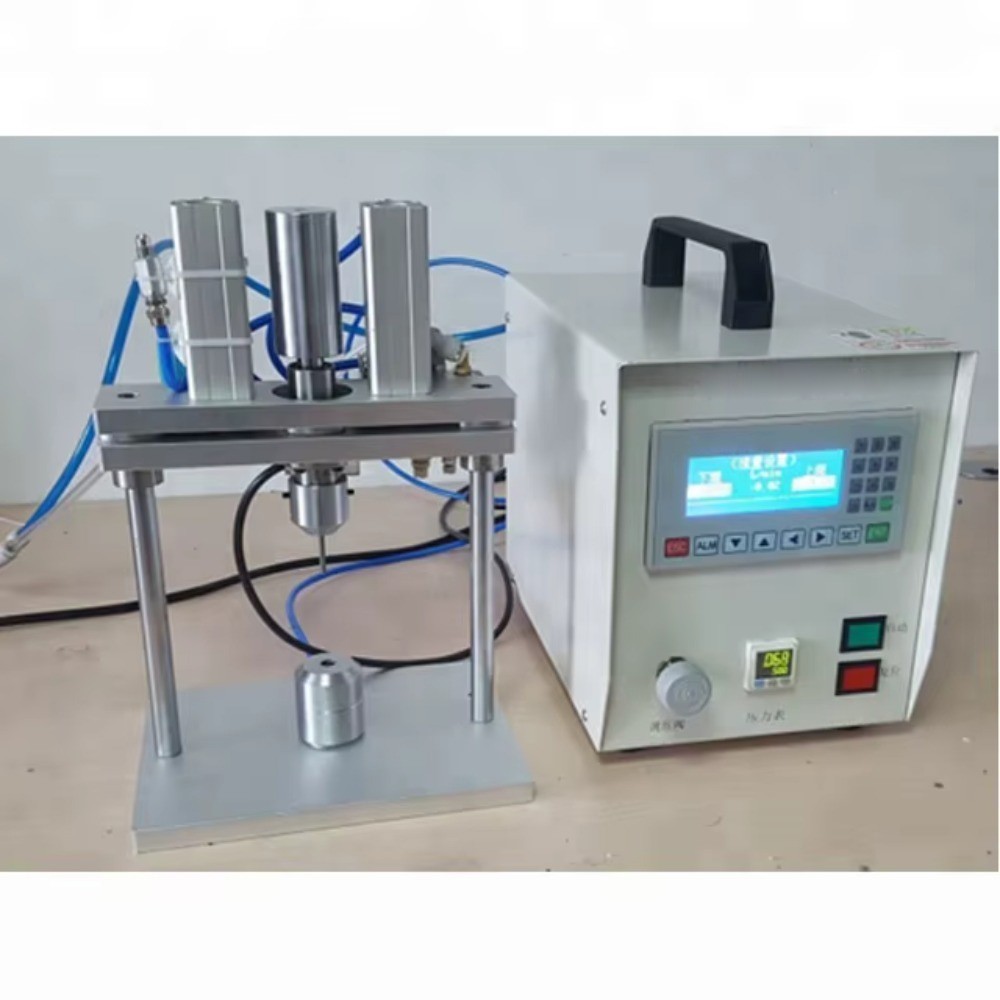

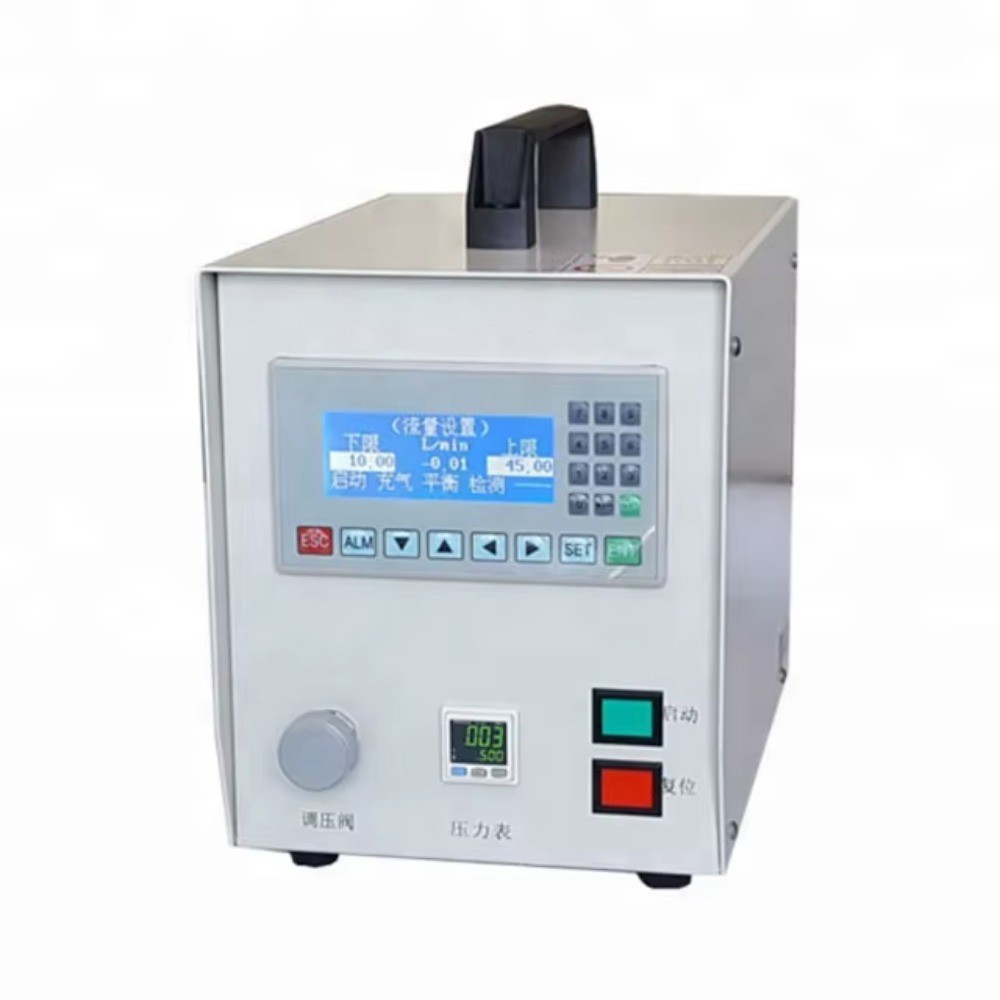

The flow detector inputs compressed air with precise pressure control into the test product. The current test product flow value is detected by a high-sensitivity gas flow sensor, and then the upper and lower limits are compared to determine whether the test results are qualified. It is mainly used for air conditioning capillary pipes, water heater valve accessories, automobile exhaust pipes, solenoid valves, air filters and other products with restrictions on gas pressure and flow.

Features

a. Direct pressure and flow

b. 1 set of channel parameters, simple parameter setting

c. 3.7-inch display, Chinese and English operation interface

d. Save 1 set of test results

e. Output, OK, NG, test counting function

f. IO contacts can be connected with external control elements to form an automatic detection device

g. sound and light dual alarm function

Technical Data

Model	LK-10	LK-25	LK-50	LK-100
Test pressure range	1 ~ 700Kpa	1 ~ 700Kpa	1 ~ 700Kpa	1 ~ 700Kpa
Flow sensor	Range: 0.2-10L	Range: 0.5-25L	Range: 1-50L	Range: 2-100L
Flow sensor	Accuracy: ± 1.5%	Accuracy: ± 1.5%	Accuracy: ± 1.5%	Accuracy: ± 1.5%
Number of channels	1 set of product setting parameters saving
Input and output interfaces	3 input singles/5 output singles
Time	Start filling asset check exhaust set range: 0.1s-999s
display	3.7-inch display
size	D430W230H340 (mm)
weight	About 10KG
power	AC 220V ± 10%, 50/60hz, 50VA
Experiment with stressors	Use a clean air source with high flow and high pressure, and a stable air pressure source after connecting with a fine pressure valve.
Ambient temperature and humidity	Service temperature: 5 ~ 40 °C, storage temperature -20 °C ~ 70 °C, below 80% RH, no condensing
