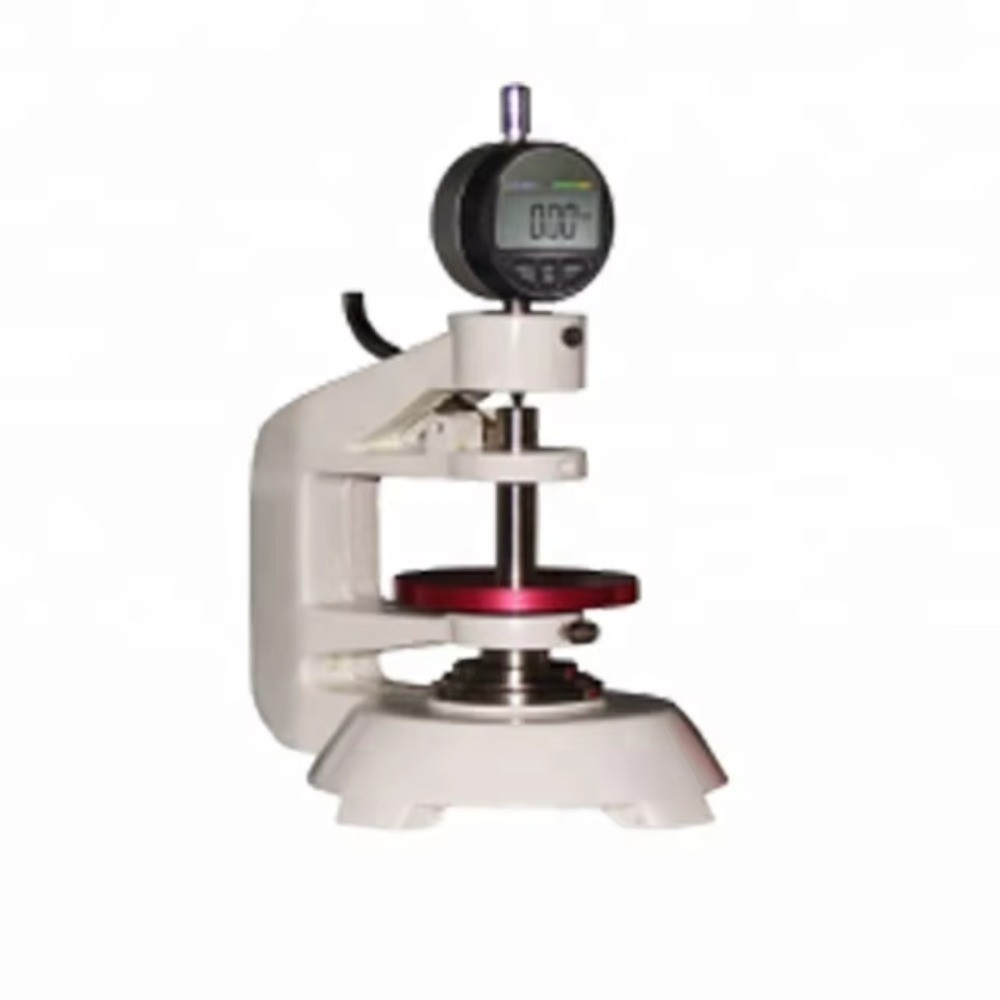

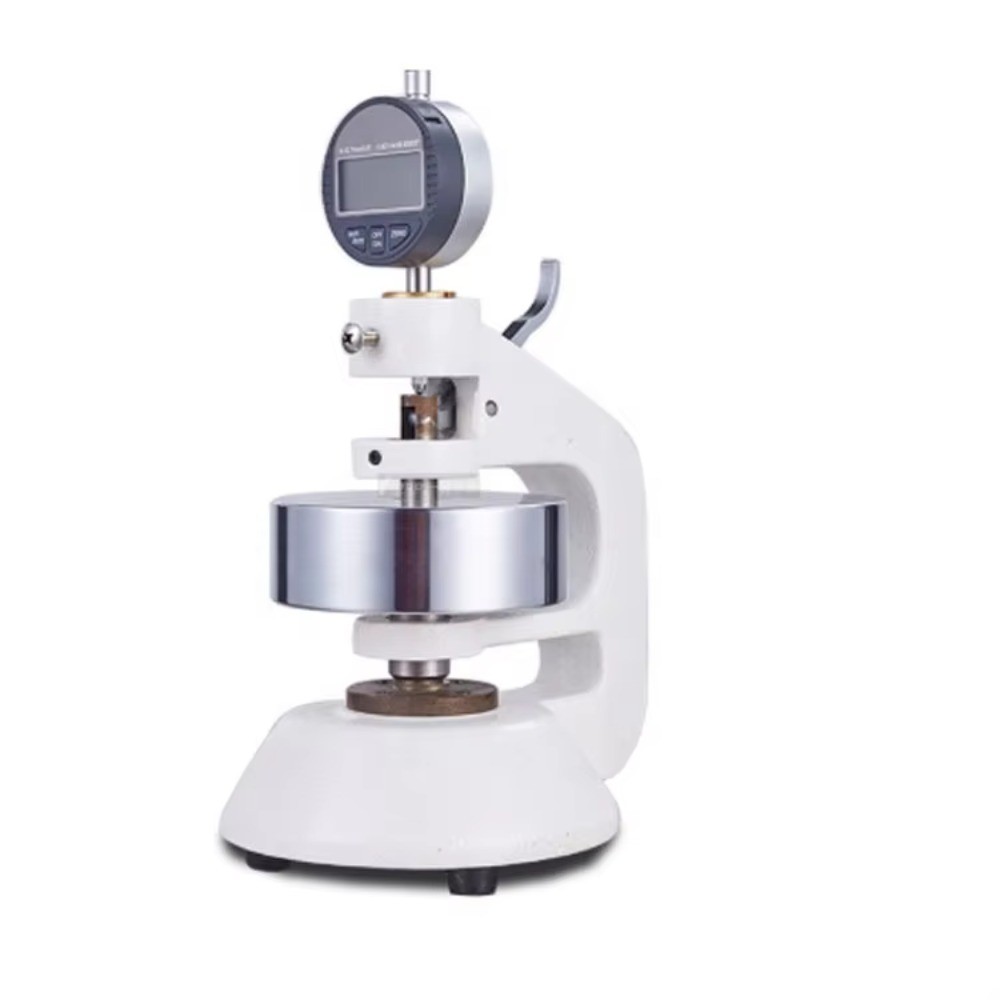

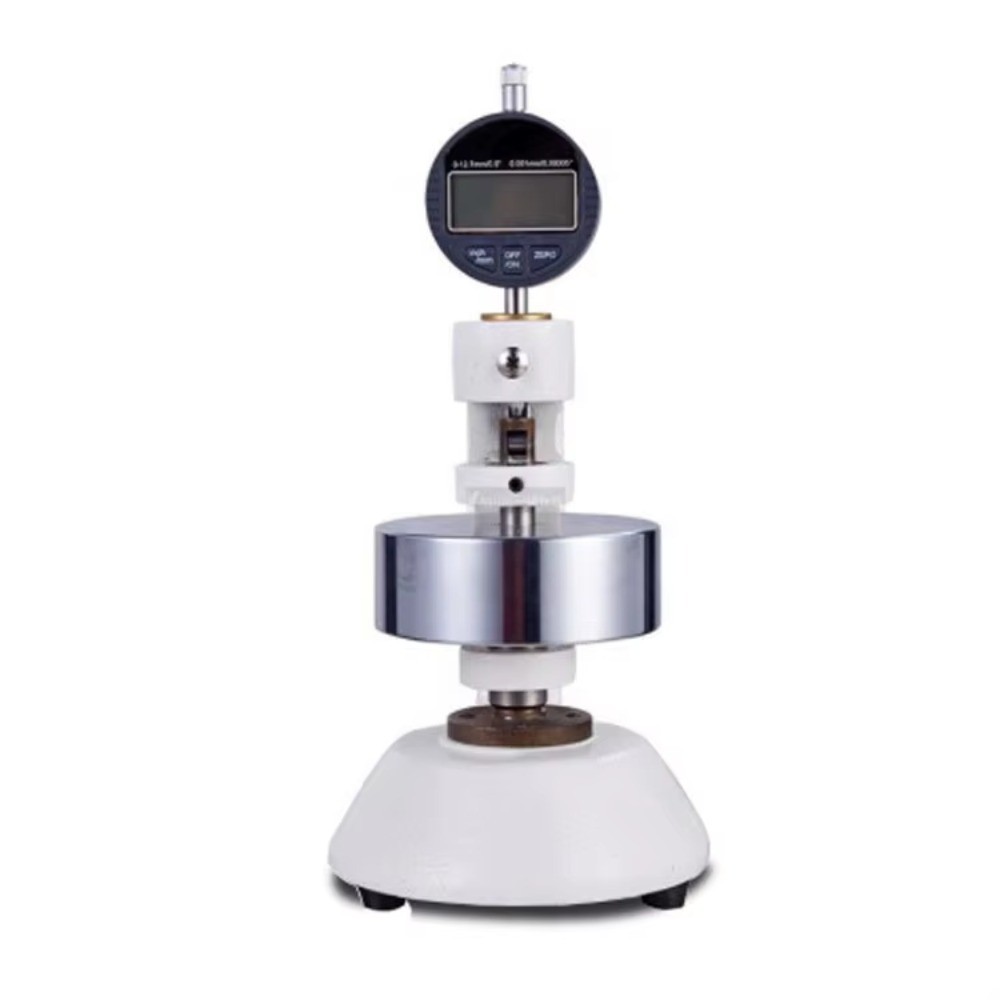

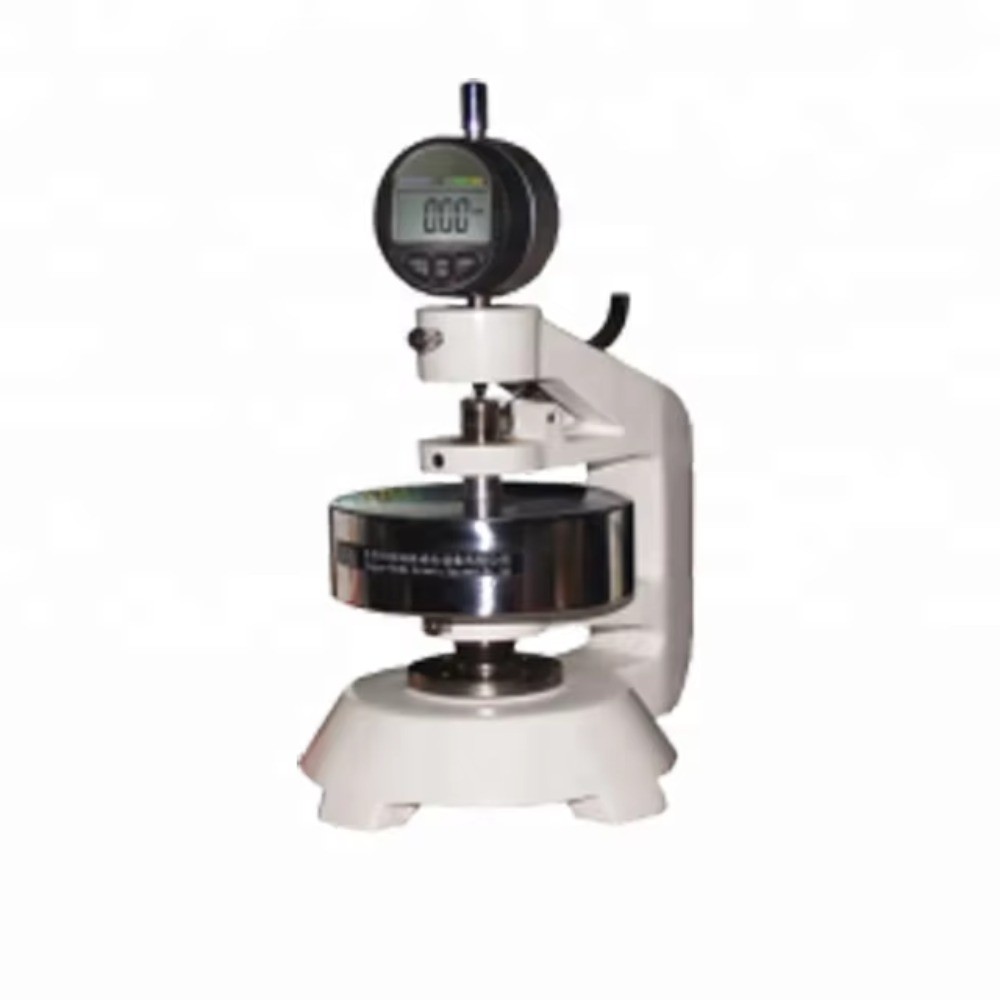

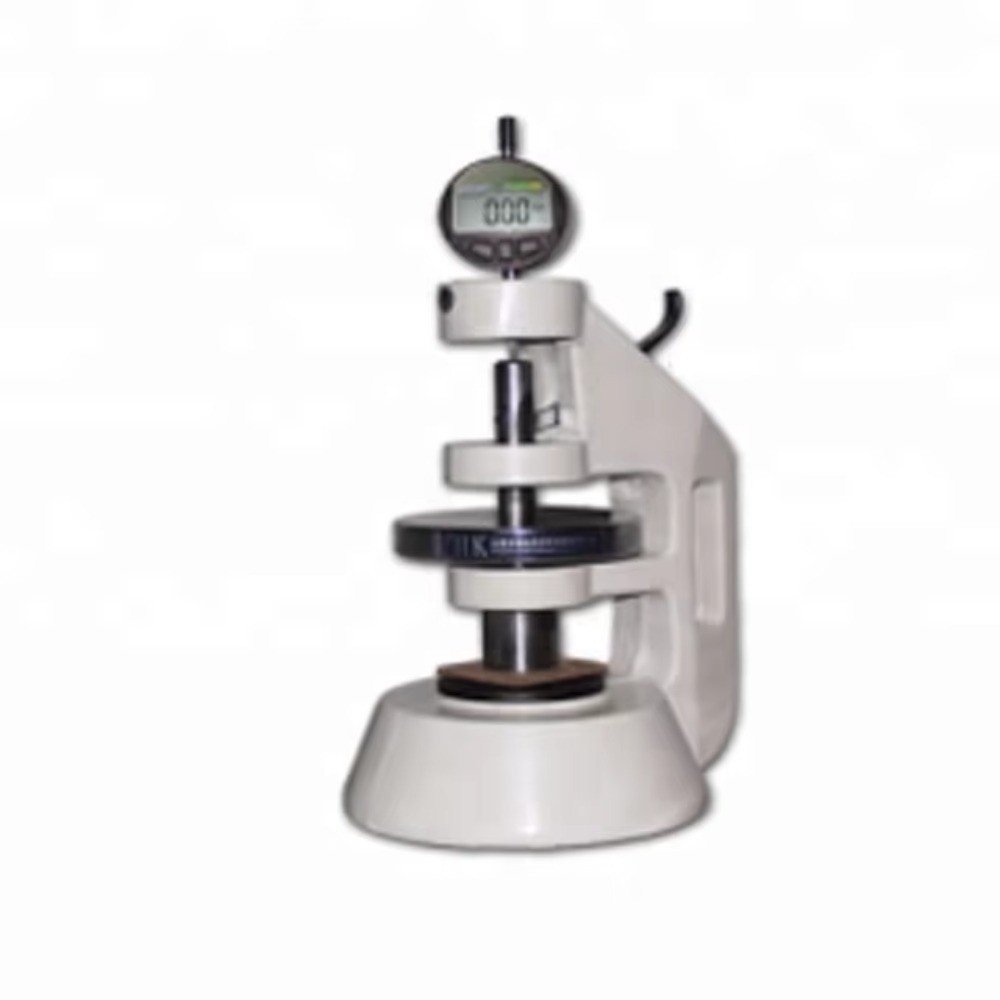

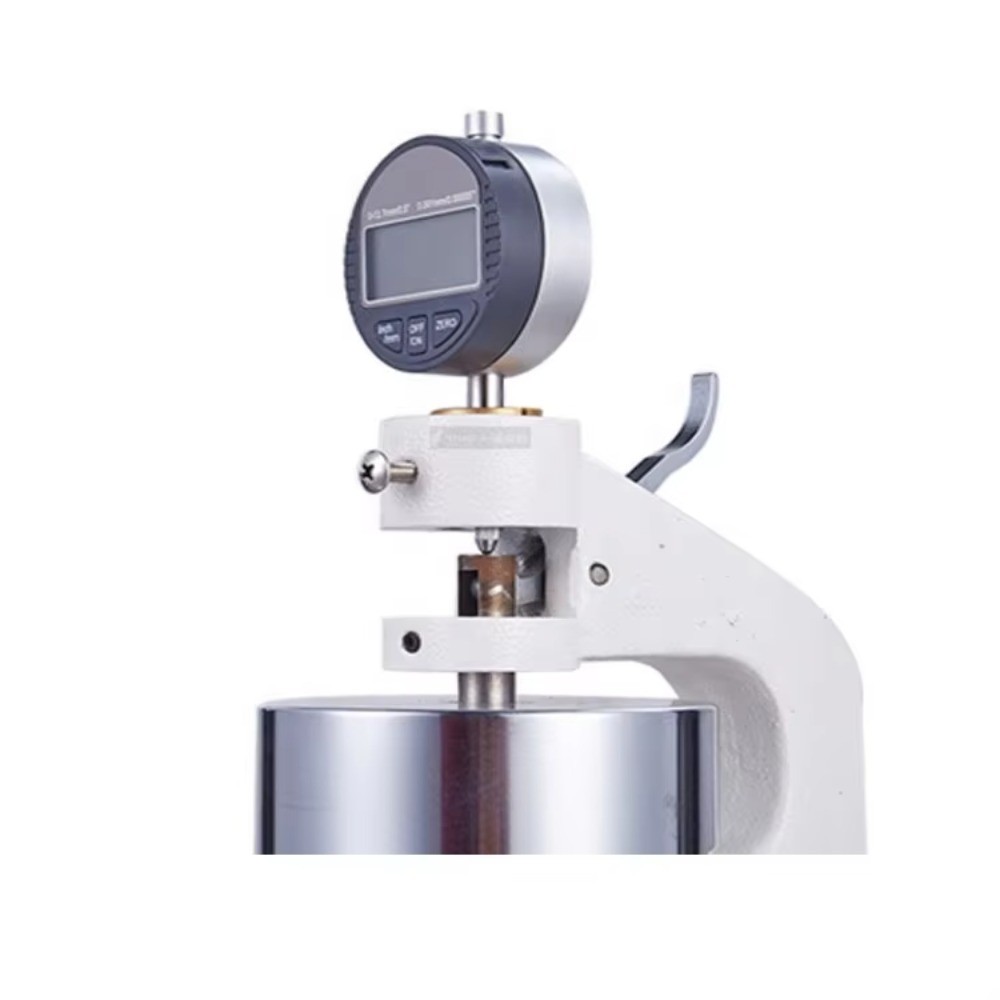

Digital Thickness Meter / Thickness Gauge

Product Item : ZY-H5A
Category： Paper, Packaging & Print
digital thickness meter
thickness meter
thickness gauge
paper thickness gauge
Product description：Thickness gauges are used to detect the thickness of paper, cardboard, nonwovens, films, and textiles. Paper thickness gauges are used to detect the thickness of paper and coated paper. Non-woven thic
INQUIRY

Product Introduction

Thickness gauges are used to detect the thickness of paper, cardboard, nonwovens, films, and textiles. Paper thickness gauges are used to detect the thickness of paper and coated paper. Non-woven thickness gauges are used to inspect ultra-thin sheets such as toilet paper and non-woven fabrics. Corrugated board types are used to detect the thickness of corrugated and carton products. It can also be used to inspect the thickness of thin films, mica films, laminated composites, and more.

Standard

GB/T 451.3，QB/T 1055,ISO 534,GB/T 6547，GB/T 24328.2

Technical Data

Model	ZY-H5A	ZY-H5B	ZY-H5C
Application	toilet paper, non-woven fabrics, low weight films	wrapping paper, coated paper, high gram film	corrugated cardboard and cartons
Measurement range	(0 ~ 4) mm, Accuracy 0.001 mm	0-4mm, Accuracy: 0.01mm/0.001mm	0-20 mm, accuracy: 0.01 mm/0.001 mm
Error value	0.05%	0.05%	0.05%
Contact area	1000 ± 20 mm2	200 ± 5 mm2	1000±20 mm2
Contact pressure	(2 ± 0.1) kPa	100 ± 5 kpa	20±2kpa
Parallelism	≤ 0.035 mm	≤ 0.035 mm	≤ 0.05 mm
Weight	About 1.5 kg	About 1.5 kg	About 8 kg
