Wave Velocity Tester

Product Item : ZHIYI-70
Category： Other
Wave Velocity Test

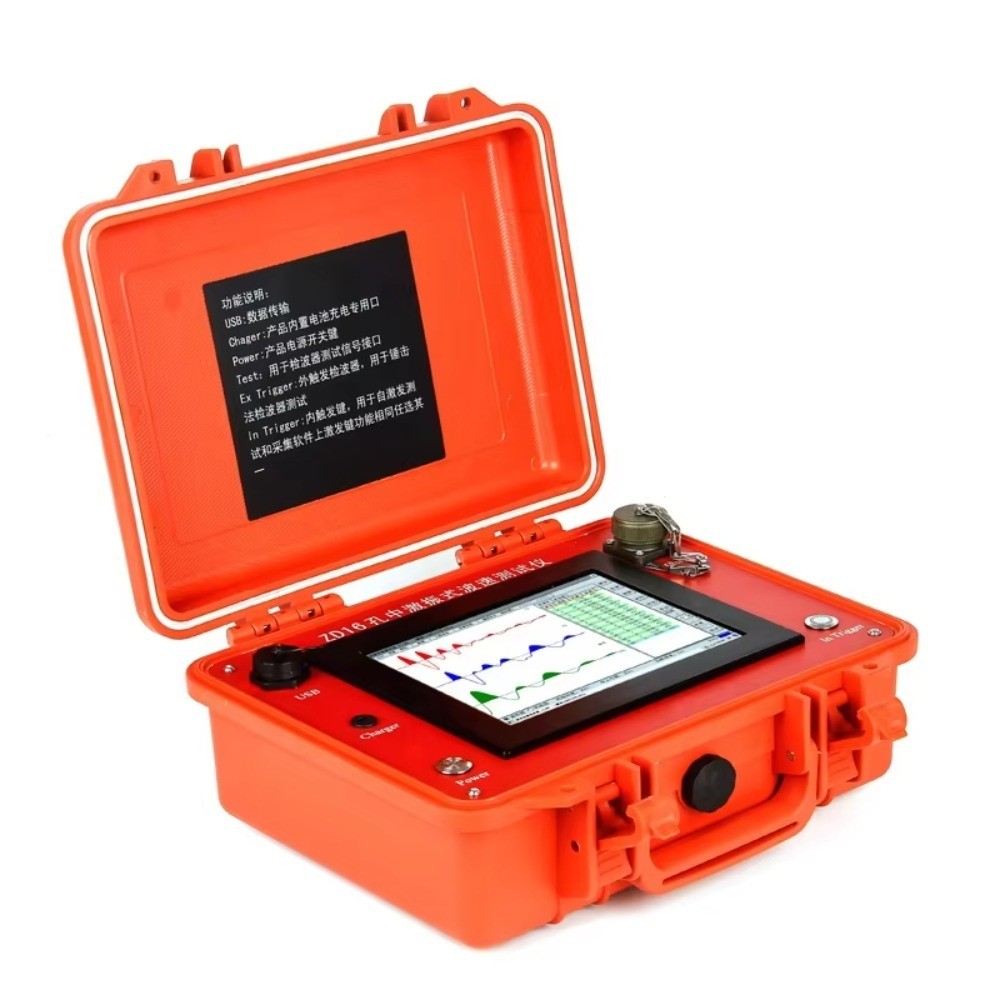

Wave Velocity Tester
Product description：Wave Velocity Tester is designed for PS wave test of rock and soil layers in engineering exploration. Classification of site soil type and site category; Formation wave velocity research in engineerin
INQUIRY

Product Introduction

It is designed for PS wave test of rock and soil layers in engineering exploration. Classification of site soil type and site category; Formation wave velocity research in engineering geological survey, railway survey, seismic evaluation, geological disaster monitoring, water conservancy and hydropower survey and design, and other related fields.

Standards

Geotechnical Engineering Survey GB50021-2009 Specification

Building Seismic Design Code GB50011-2010

"Foundation Dynamic Characteristics Test Specification" GB/T50269-2015

Water conservancy and hydropower engineering SL326-2005 geophysical exploration code

Highway Engineering Geological Survey Specifications·· JTG C20-2011

Railway Engineering Geological Survey Code TB 10012-2007

Geotechnical Engineering Survey Code for Water Transport Engineering JTS 133-2013

Engineering Survey GB55017-2021 General Specification

Functional Modules

u Intra-tunnel excitation method: Intra-tunnel excitation method (spontaneous self-rewinding), that is, in-cave excitation and in-cave reception, without ground vibration source, accurate test of shear wave velocity;

U Splint method: use a heavy hammer to hit the ground vibrating plate or steel plate to test the shear wave and compression wave velocity of the formation;

u Low-frequency grounding pulsation excellent cycle test.

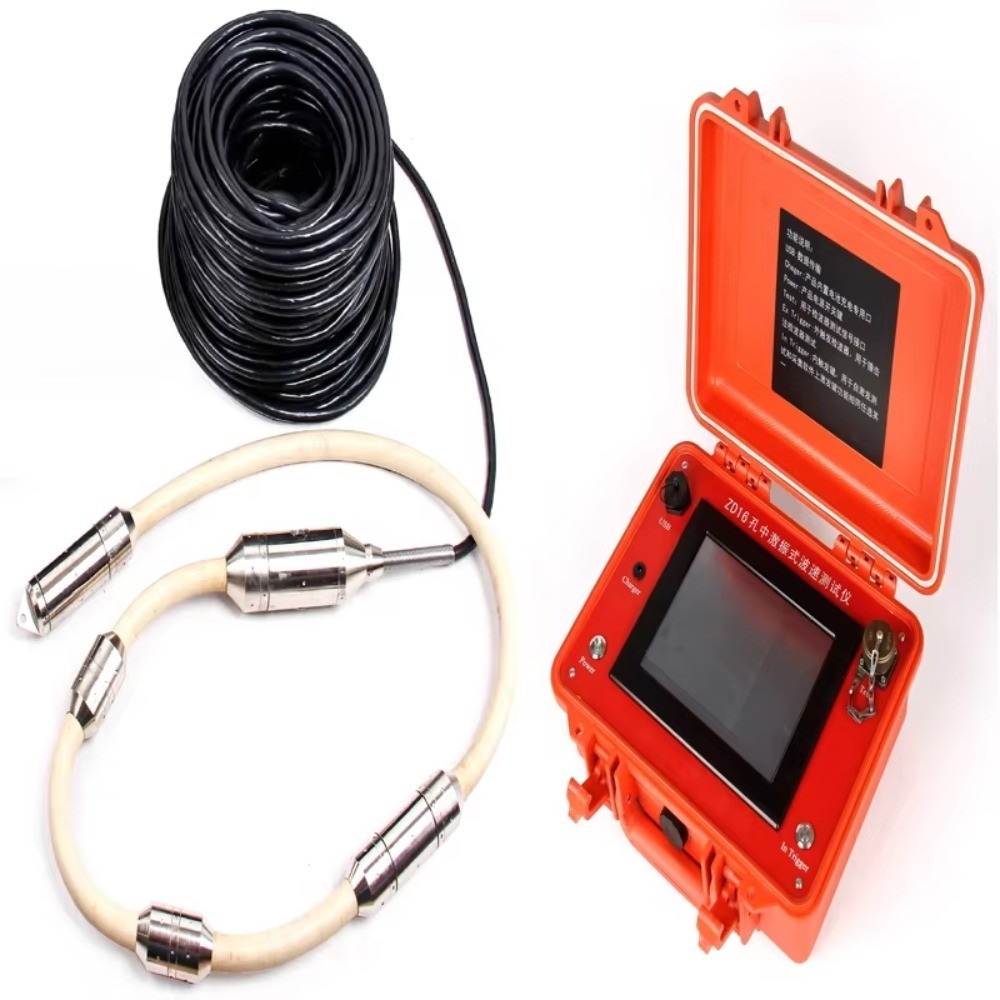

Logging probe:

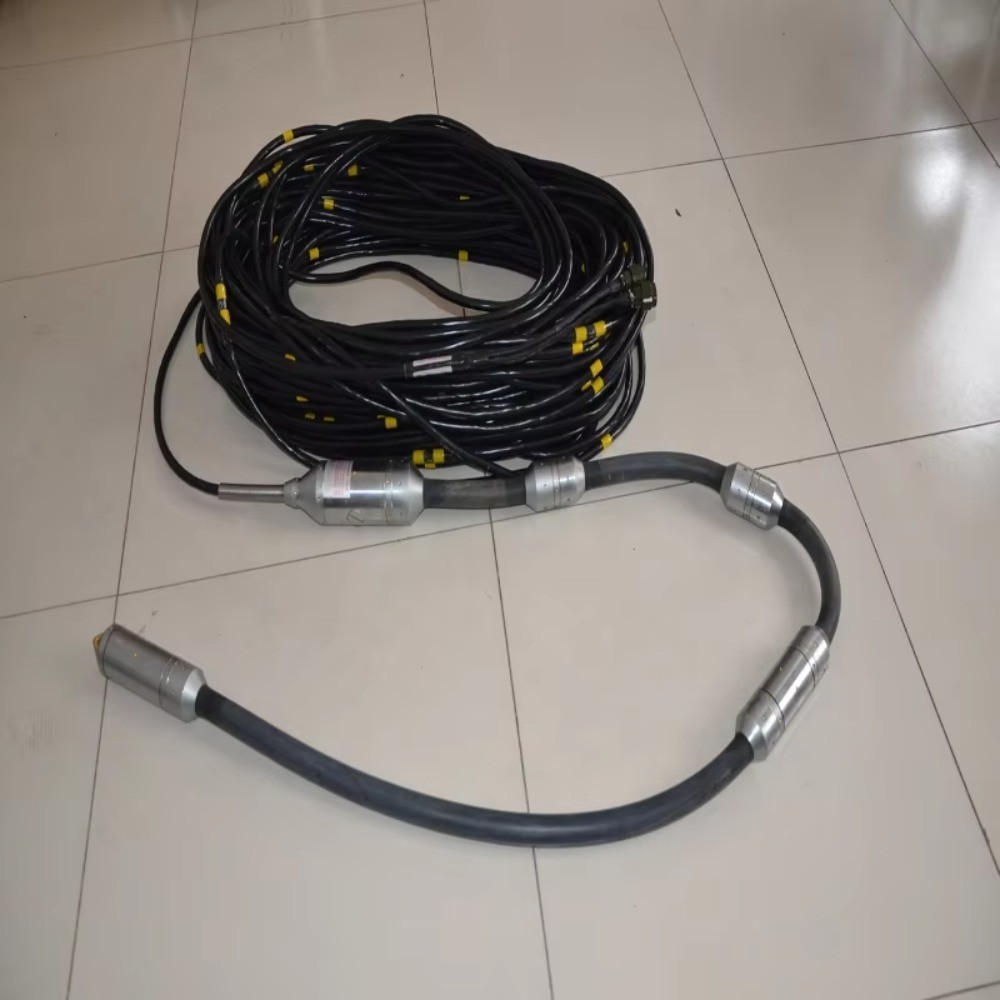

self-excited probe: the upper part is the excitation source, and the lower part is two receiving detectors. The electromagnetic impact excitation source acts on the instantaneous impact force perpendicular to the wellbore wall, and collects and receives shear waves (S-waves, S-waves) that propagate along the shaft wall in the direction of particle vibration perpendicular to the shaft wall.

button probe: It adopts a three-component detector, electromagnetic automatic suction method to open the bracket, and control the host key to open at any time in the hole of any depth, and the non-mechanical opening. The probe is not resisted by mud too much, resulting in the probe not placed at the bottom of the hole to open the support, avoiding repeated operations to raise and place the probe, wasting time. To avoid mechanical opening, the probe must be placed at the bottom of the hole and the support should be opened by mechanical force.

Rock wave velocity test:

PS wave

Test method P·s wave test of rock in the cave

Technical Data

Functional modules	Drilling excitation method for soil shear wave measurement, splint method for shear wave and compression wave measurement, low-frequency ground pulsation
Sensor type	Low frequency sensor
Incentive model	Electromagnetic excitation, heavy ground excitation (manual triggering)
Trigger mode	Internal triggers, manual triggers, switch triggers
Number of channels	4
A/DC accuracy	14th, 16th, 24th
Display mode	10.1-inch high-brightness color LCD display with resolution 1280 × 800
Mode of operation	Touch screen, buttons
operating system	Linux 4.1.15
Main control configuration	Low-power embedded system with a core frequency of 1GHz, CPU quad-core, and memory of 1GB DDR3
Display type	IPS and capacitive touch screen
Shell material	Engineering plastic ABS
volume	353 × 264 × 85 (mm)
weight	2.6 kg
Ethernet	10M/100M/1000M
bandwidth	0.1Hz ~ 50kHz
Transmission voltage	100V/400V/500V/1000V
Emission pulse width	0.1 μ s ~ 200 μ s，1ms ~ 100ms
Gain dynamic range	105 dB
magnify	1 ~ 1000
Phase consistency	≤ ± 1μs
Receiving sensitivity	≤ 10 μV
Voltage sensitivity	10 mV/Pa
Vibration sensitivity	20 mV/mm/s
Damping coefficient	0.65 ~ 0.70
Channel crosstalk	≤-60dB
Waveform curve data	Simultaneous display
Data display	Digital display and voice broadcast
Storage capacity	32G (1,000,000 waveforms)
Storage format	zd1a, dwg, seg-2, txt
Storage mode	Automatic, Manual
Automatic saving function	Supports automatic data saving in case of sudden power failure
Wireless + Bluetooth (Wi-Fi + BT)	V2.1 + EDR/BT, V3.0/BT, V3.0 + HS/BT, V4.0; IEEE802.11 b/g/n, 1T1R, 2.4GHz, 150 Mbps (maximum); Receiver sensitivity: -93dBm
4G network mode	LTE FDD, LTE TDD, TD-SCDMA, WCDMA, CDMA, GSM
GPS + BeiDou positioning	Positioning accuracy: 1.5m; Operating modes: GPS, BDS, GLONASS, Galileo; Built-in electronic compass; Sensitivity: -161 dBm, -148 dBm
Endurance	≥ 16h
Battery capacity	10400mAh (built-in removable lithium battery)
Battery size	115 × 220 (mm)
Typical power consumption	7 watts
Power indicator	Real-time power display, 5% accuracy
Operating temperature	-10℃ ~ +50℃
