Brightness and Color Tester

Product Item : ZHIYI-48A
Category： Whiteness Meter
color tester
brightness meter
Product description：ZHIYI-48A Brightness and Color Tester is the first new automatic one-button measurement of all color and whiteness technical parameters in the industry developed by the company. It is widely used in p
INQUIRY

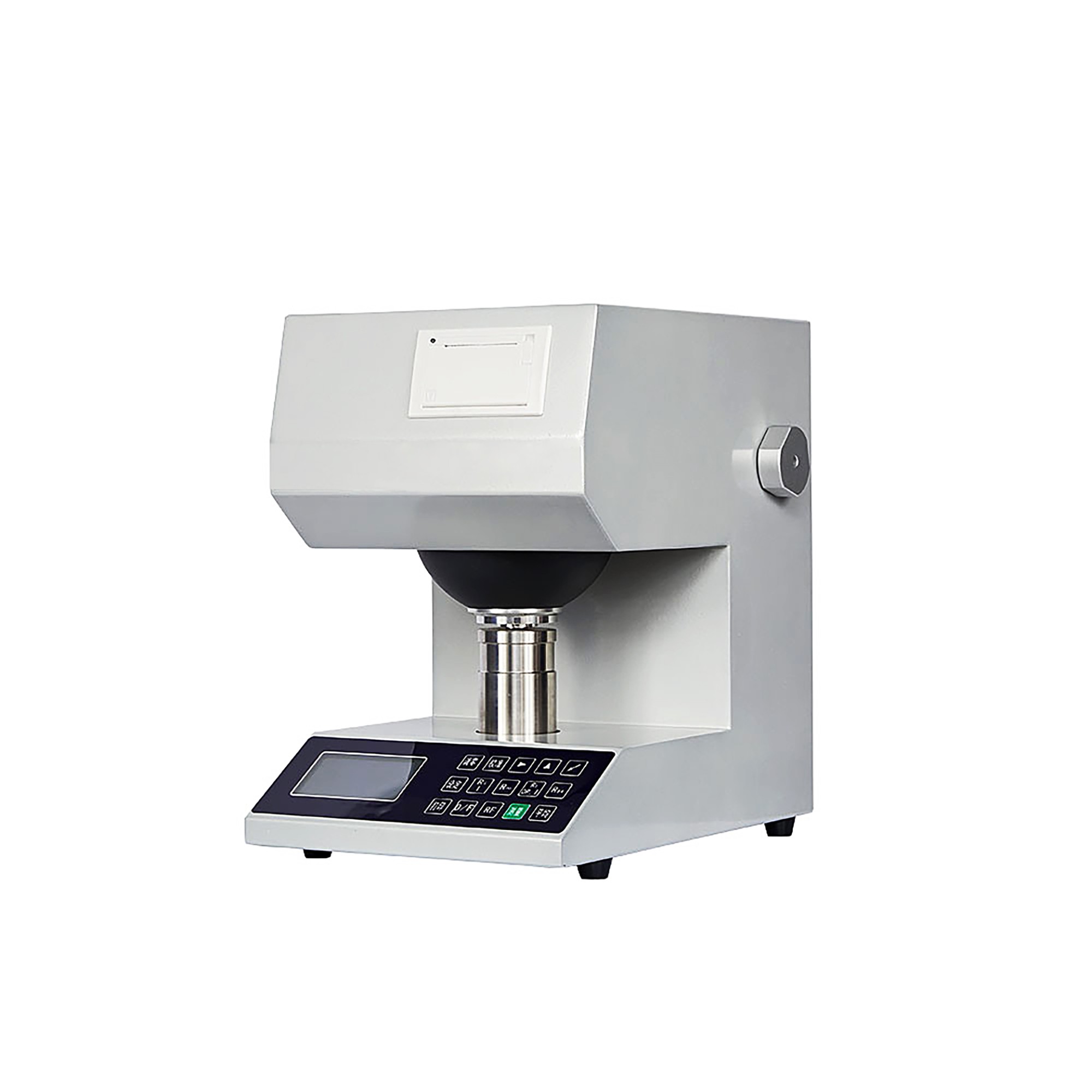

ZHIYI-48A Brightness and Color Tester is the first new automatic one-button measurement of all color and whiteness technical parameters in the industry developed by the company. It is widely used in paper-making, printing, textile printing and dyeing, ceramics, building materials, chemicals, food, salt production and other industries and other production and commodity inspection departments that need to determine the color and whiteness of objects.

Application

Paper, cardboard, plastic, pulp

Salt, industrial salt, starch, calcium carbonate, talcum powder, etc.

Chemical pulp, cotton, chemical fiber, textiles

Grain, ceramics, enamel, building materials

Function

Measure the color of the object

Measure CIE whiteness (Gantz visual whiteness) W10 and color cast value Tw10

Measure ISO whiteness (R457 blue lightness) and Z whiteness (Rz)

Measure the fluorescence whitening caused by the emission of fluorescent substances (the sample contains fluorescent whitening)

Measure the whiteness of building materials and non-metallic mineral products WJ

Measure Hunter Whiteness WH

Measure the whiteness and color of the fiber (supporting fiber sampler)

Measure the whiteness of the powder, Lab and color difference

Measure the lead concentration

Measurement of yellowness YI, opacity OP, light scattering coefficient S, light absorption coefficient A, transparency, ink absorption value

Product Features

Ø Large screen and high pixel liquid crystal display module,display and

prompt the operation steps to display measurement and statistical results, friendly man-machine interface makes the instrument easy to operate

Ø Increase data cache, which is convenient for users to back up, review, and compare historical data. It can store up to ten reference information.

Ø The instrument has a power-off protection function, and the calibration data will not be lost after power-off.

Ø can be measured multiple times and gives the arithmetic mean of a series of measurements

Ø Measure the color of the object, report the diffuse reflection factor Rx, Ry, Rz, stimulus value X10, Y10, Z10, chromaticity coordinates x10, y10, brightness L*, chromaticity a*, b*, chroma C*ab, hue Angle h*ab, dominant wavelength λd, excitation purity Pe, color difference ΔE*ab, brightness difference ΔL*, chroma difference ΔC*ab, hue difference ΔH*ab, Hunter system L, a, b

Ø Using thermal printer core, no need to use ink and ribbon, no noise when working, fast printing speed, etc

Ø This instrument is equipped with standard RS232 interface, which can be used with PC software for communication (optional)

Technical Parameters

Power Supply AC(100~240)V (50/60)Hz 50W

Working Environment (10~35)℃, Humidity≤ 85％

Sample Size Test plate diameter should not be less than 30mm while sample thickness should not exceed 40mm

Indication Accuracy Chromaticity Coordinate≤0.003, R457 ≤0.03

Data’s Stability 30 minutes after preheating, within ±5℃ temperature range,≤0.1

Repeatability Accuracy Rx、Ry、Rz≤0.03，

Chromaticity Coordinate ≤0.001，R457≤0.03

Specular Reflectance Accuracy ≤0.1

Print Built-in thermal printer

Communication Interface RS232

Dimension 330(L)×260(W)×385(H)mm

Net Weight 15Kg

Optional Accessories（Purchase Separately）

Whiteboard（3#) 1set For paper measurement

Simple powder box, glass cover plate 2set For powder measurement

RS232 interface and computer software 1set

Standards

ISO 2469 ISO 2470 ISO 2471 ISO 9416 ISO 11475

GBIT 7973 GBIT 1543 GB/T 24288 GB/T 5950 GB/T 9338
GBIT 4739 GB/T 7974 GB/T 10339 GB/T 3979 GBIT 8424.1
GB/T 9984 GBTT 7975 GB/T 2679 1 GB/T 12911 G8/T 22880
GB/T 2913 GB/T 13025.2 GB/T 8424.2 GB/T 8424.3 GB/T 13173
GBT 13835.7 GB/T 6688 GB/T 11186 GBЛT 11942 GB/T 22427.6

QB/T 1503 QBIT 2789
