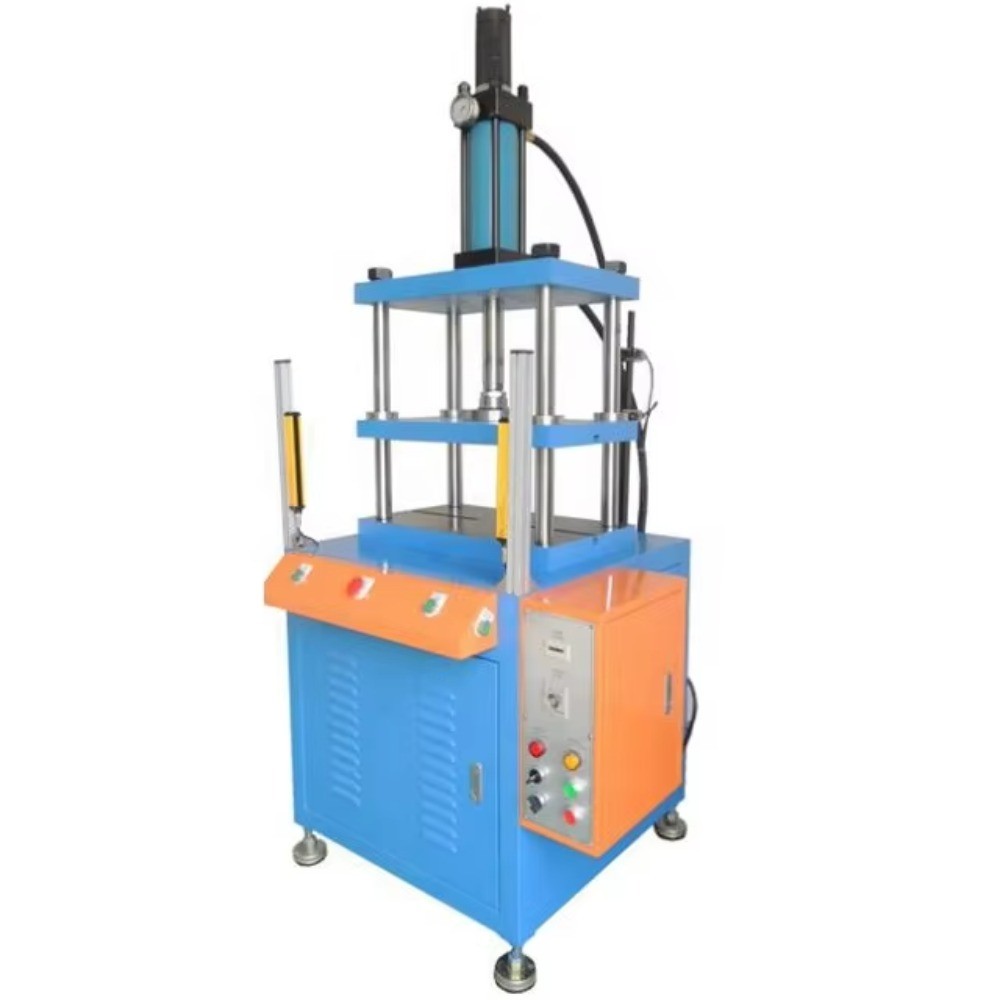

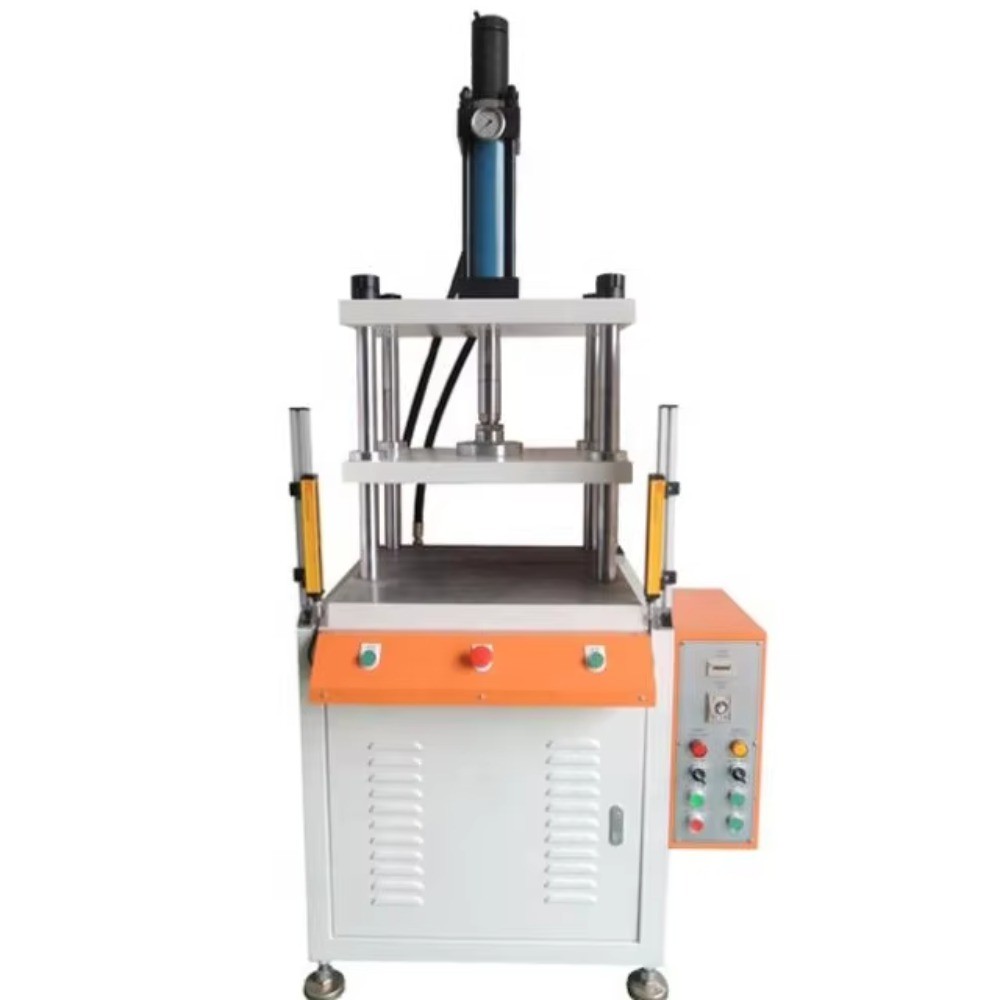

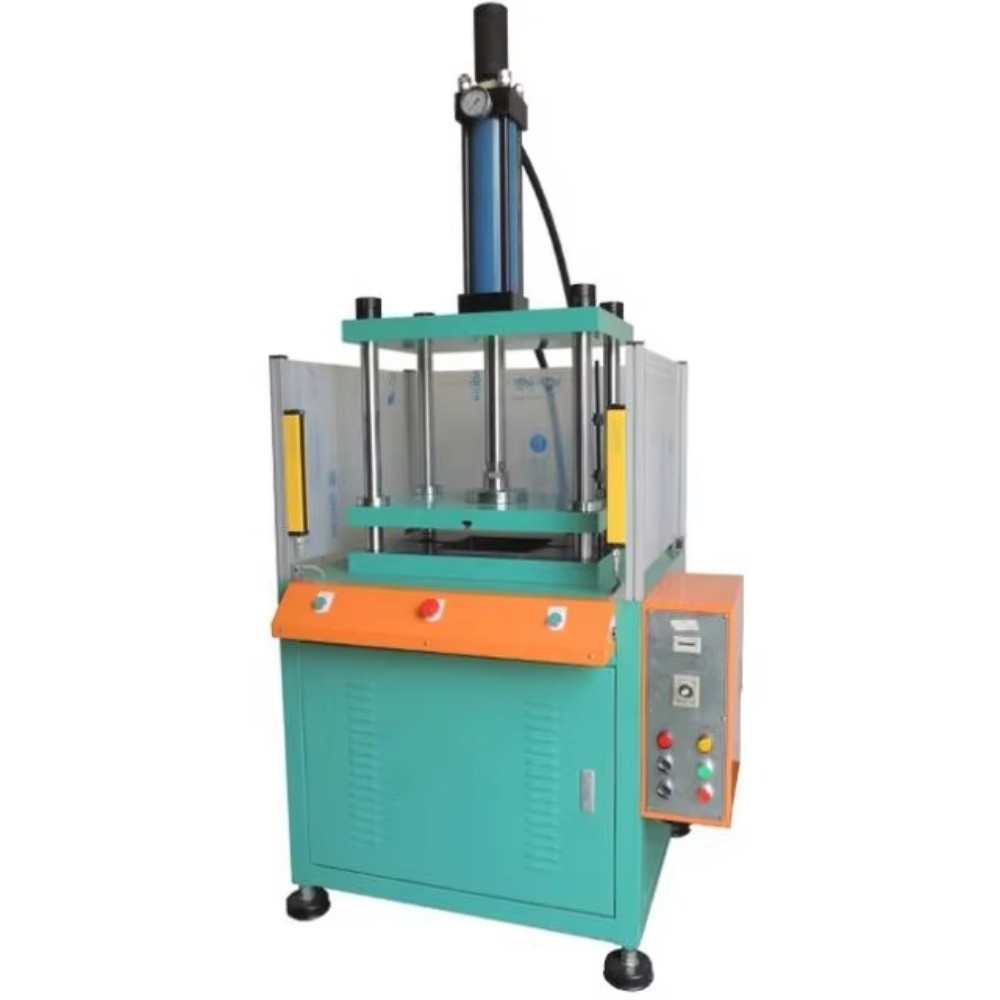

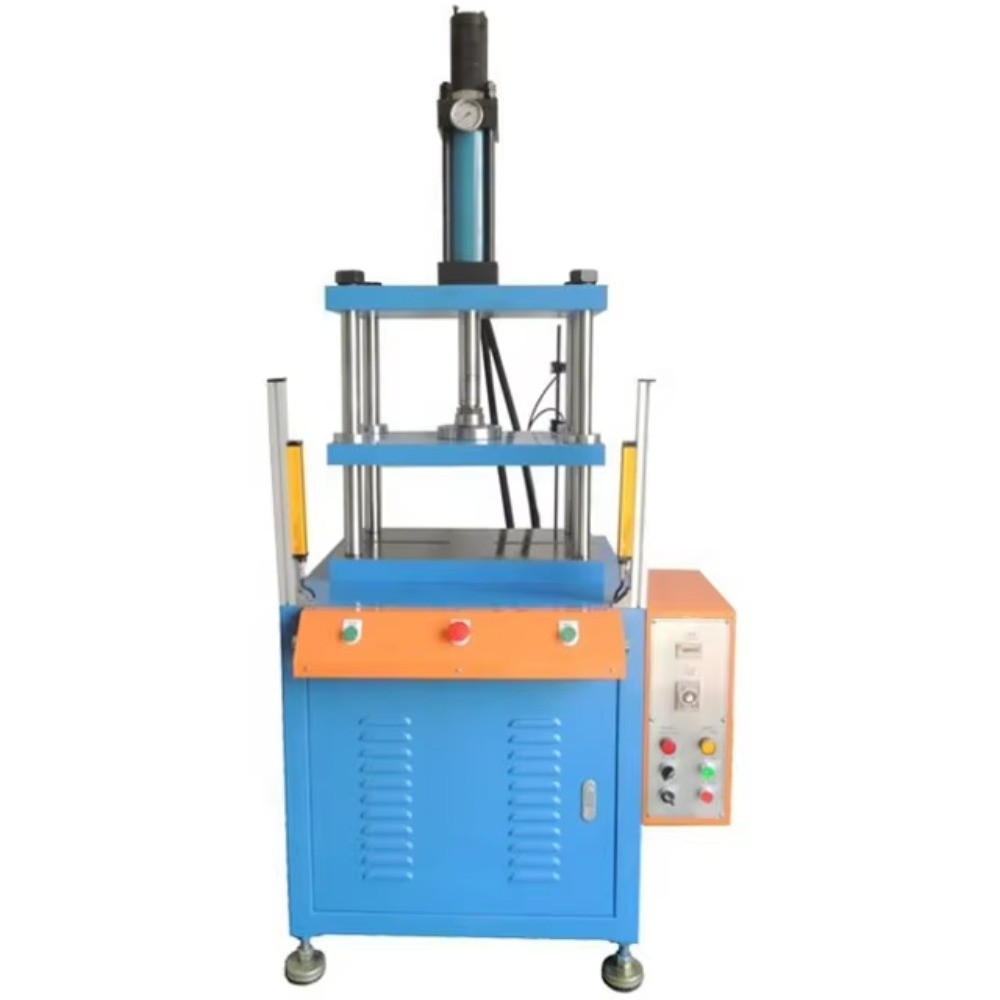

Hydraulic Press Machine

Product Item : ZHIYI-100
Category： Plastic tester machine
Hydraulic Press Machine
Plastic Hydraulic Press Machine
Product description：The hydraulic press machine is designed for stamping, forming, shallow stretching, shaping and pressure assembly of metal or non-metal parts; Pressing of glass, lock and hardware parts, electronic con
INQUIRY

Product Introduction

The hydraulic press machine is designed for stamping, forming, shallow stretching, shaping and pressure assembly of metal or non-metal parts; Pressing of glass, lock and hardware parts, electronic connectors, electrical parts, motor rotation, stator pressing, etc.; Especially suitable for aluminum product blanking, die-casting nozzle blanking, mobile phone shell shaping, mobile phone silicone button cutting, silicon steel leveling, plastic, rubber products rough edge processing, membrane switches, horn films and other concave and convex surface hot stamping forming; testing of plastic particle laminates and thermal bonding of films; It is suitable for the production and use of large-area thermoforming products.

The four-column hydraulic press machine can be customized according to customer requirements suitable machine shape and size

The four-column hydraulic press machine is a multi-purpose press, which is a single-axis assembly equipment with strong applicability, integrating air pressure and oil pressure, and is the first choice for manufacturers to improve product quality and production efficiency.

Product Features

1. Adopt four-column three-plate steel structure, movable plate parallel to the working surface, four-column with precision guide sleeve, high precision;

2. The inner frame of the hydraulic station has a compact structure, beautiful and generous appearance, simple hydraulic circuit design, and convenient maintenance;

3. Pressure, stroke, speed and holding time can be adjusted according to the requirements of the pressing process.

4. Separate upper and lower heating plate temperature control, using RKC waalwijk intelligent temperature controller, temperature control accurate ± °C;

5. Taiwan brand hydraulics, electrical components and Japanese NOK seals, durable;

6. Manual operation, with emergency stop button and jogging function, easy to install and adjust the mold, high safety;

7. The lower part of the table is equipped with casters and cup holders, which is portable, labor-saving and efficient.

8. Optional safety photoelectric protection device, humanized, safer and more secure work;

9. Special requirements such as non-standard table sizes and high-pressure models can be customized

Technical Data

Model	Unit	ZHIYI-100	ZHIYI-101	ZHIYI-102	ZHIYI-103
cylinder pressure	tons	0.9-3	1.5-5	3-10	5-20
System pressure	kg/cm²	20-70	20-70	40-140	40-140
Pressure plate area	mm	450*300	450*300	450*300	450*350
Maximum stroke	mm	150	150	150	200
Open Height	mm	200	200	200	200
Heating time	S	0-3	0-3	0-3	0-3
Temperature range	℃	RT-250 ± 1	RT-250 ± 1	RT-250 ± 1	RT-250 ± 1
Electric heating pipe power supply	kilowatts	4.8	4.8	4.8	4.8
motor power	kilowatts	2.25	2.25	3.75	5.5
Power supply	Five	380	380	380	380
Hydraulic fluid and capacity	L	VG46/50	VG46/70	VG46/90	VG46/90
weight	kg	450	500	600	800
