lab Film Blowing Machine Blown Film Extruder

Product Item : ZHIYI-43025
Category： Other
Product description：The film blown machine, also known as the film cast machine, is mainly used to determine the blown film feasibility of polymer materials and the colloidal condition in the materials, as well as the di
INQUIRY

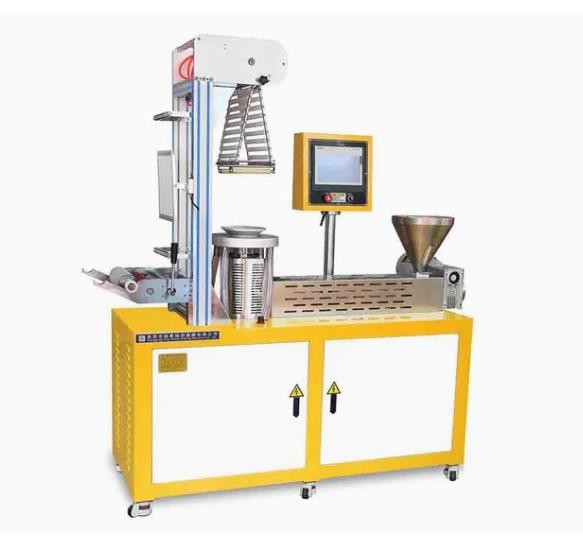

Lab Film Blowing Machine Blown Film Extruder

The film blown machine, also known as the film cast machine, is mainly used to determine the blown film feasibility of polymer materials and the colloidal condition in the materials, as well as the dispersibility of colored dispersions, control mixtures and extrudates.

The film frame is electrically raised and lowered, which is convenient for film introduction and process adjustment.
Equipped with a telescopic device for the film blowing frame, which is convenient for transportation and movement
The traction device adopts high quality servo motor, which can realize stepless speed regulation to adapt to the constant change of extrusion speed
High-strength aluminum alloy transmission box, exquisite appearance, good cooling effect
Integrated rack with complete functions, convenient operation and space saving

New material formulation development
Material Blown Film Performance Test
Color masterbatch dispersion performance test
Blown film production process parameter optimization
Preparation of Monolayer Blown Tubular Films
Investigate the blown film forming properties of materials
Investigate the dispersion properties of pigments

Model No.	ZHIYI-43025	ZHIYI-43030
Screw diameter	25	30
L/D	1:33	1:33
Traction roller size (mm)	Ø80×L250	Ø80×L250
Die diameter	25mm	25mm
Traction winding speed	0-50r/min or customized	0-50r/min or customized
The max diameter of the film(mm)	180mm or customized	180mm or customized
Main motor power(kw)	2.2	3.7
Fan power(kw)	0.37	0.37/0.55
Volume(W×D×H)(mm)	1800×800×2100	1900×800×2100
Weight(kg)	About 385kgs	About 400kgs
Power Supply	3∮,AC380	3∮,AC380
