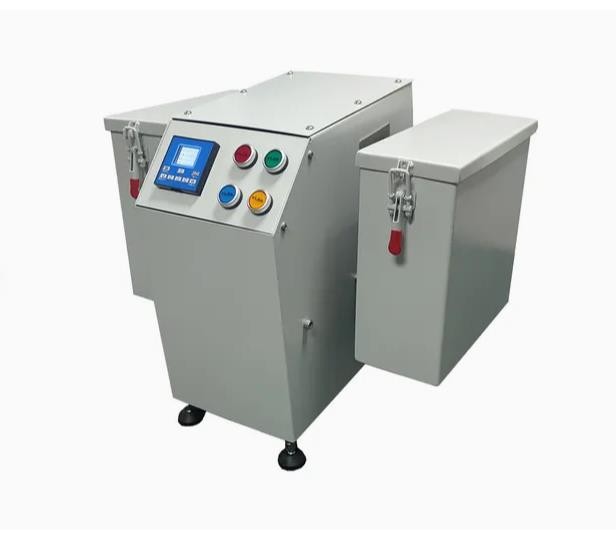

Programmable Feed Wood Pellets Durability Index Pdi Tester Impact Tester ISO 17831-1

Product Item : ZHIYI-136E
Category： Other
Product description：The Pellets Durability Index Tester is specially used to test the impact resistance of pellet products such as feed pellets, wood pellets, as well as other types of pellets or granules. The high value
INQUIRY

Product Description

Standards: ISO 17831-1(BS EN 15210-1:2009)
The Pellets Durability Index Tester is specially used to test the impact resistance of pellet products such as feed pellets, wood pellets, as well as other types of pellets or granules. The high value of the ZHIYI-136E, the better quality of the feeds.
The ZHIYI-136E tester is driven by step motor+reducer, controller by PLC. Thus the test time & rotation speed also can be setup on different customer requests, which greatly widen the application of the machine.

Technical specifications

Controller	PLC
Rotary box material	304 SUS
Rotational speed	40-250rpm programmable, default as 50rpm
Rotation number	user-defined, default 500rpt
Batch sample capacity	500g~1500g
Motor Power	120w
Overall size	600×480×480mm
Box size	300×300×125mm
Net weight	37.5kg
Power supply	AC 110V/220V, 50/60HZ
Shipping weight	45kg
Shipping dimensions	655555cm

Features
LCD real time displays rotation number, rotation speed
PLC programmable, user can self define rotation speed, rotation number
Fully SUS made test box with electrostatic spraying treatment
Step motor combine with reducer to drive, large torque, less noise
Bearing seat for rotating axis for steady and long term operation
Flange connection with test box, more durable and reliable
Handle design for easier movement
