Ash Content Muffle Furnace

Product Item : AMF-612
Category： Other

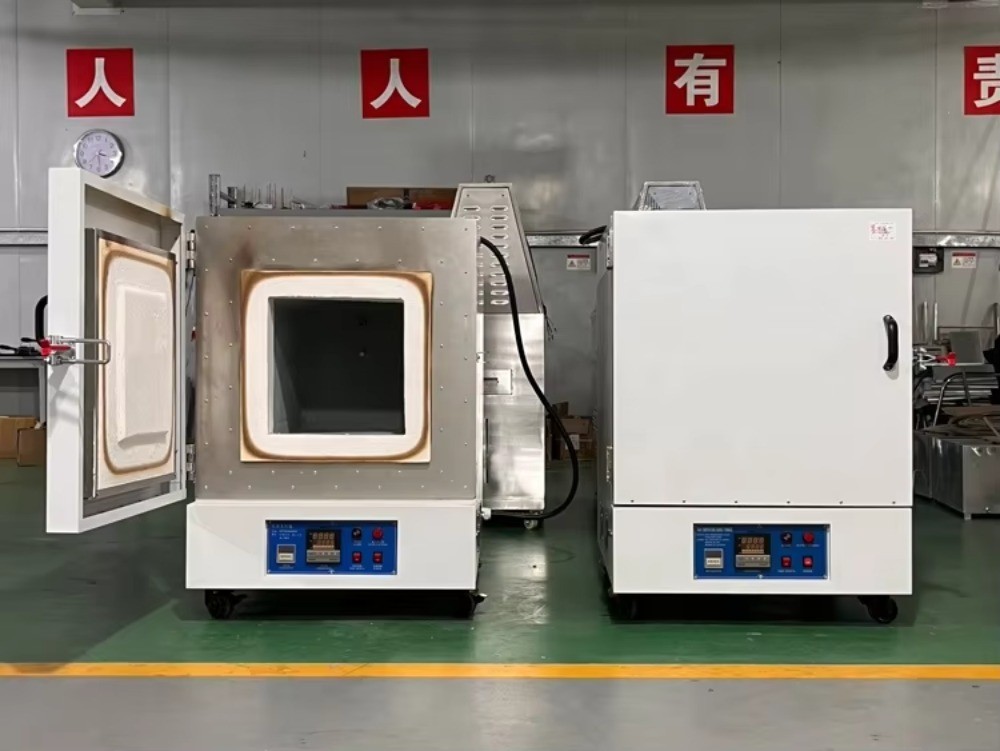

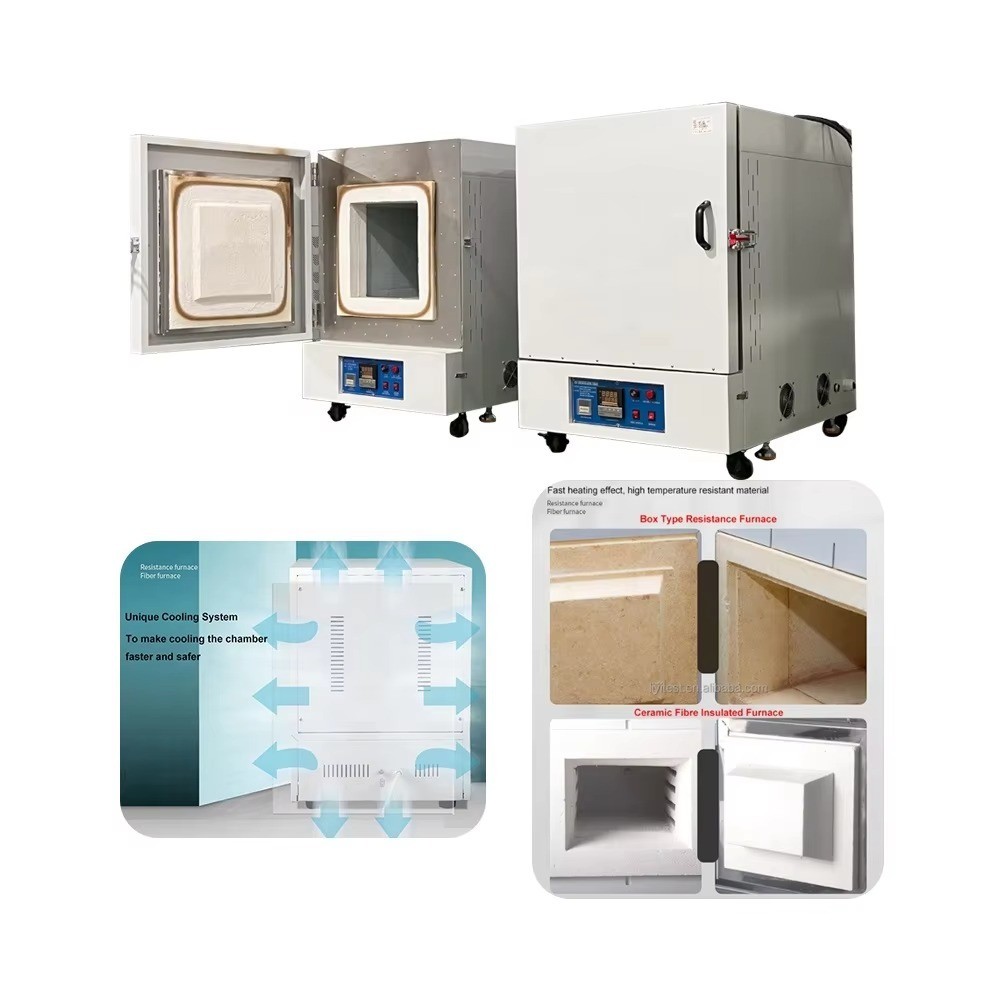

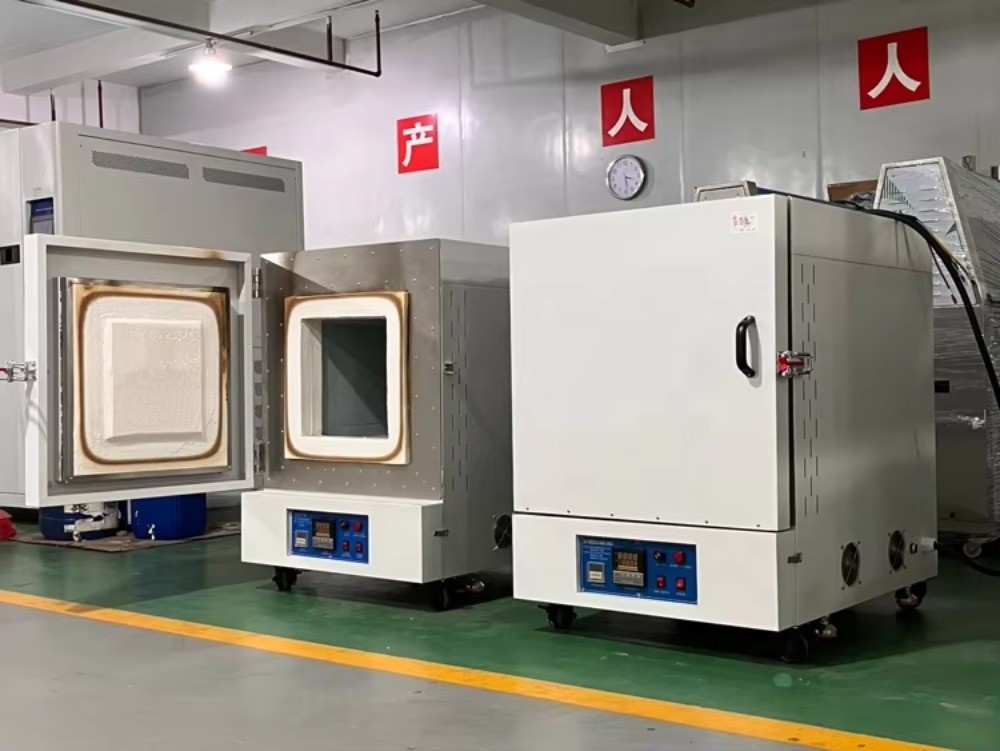

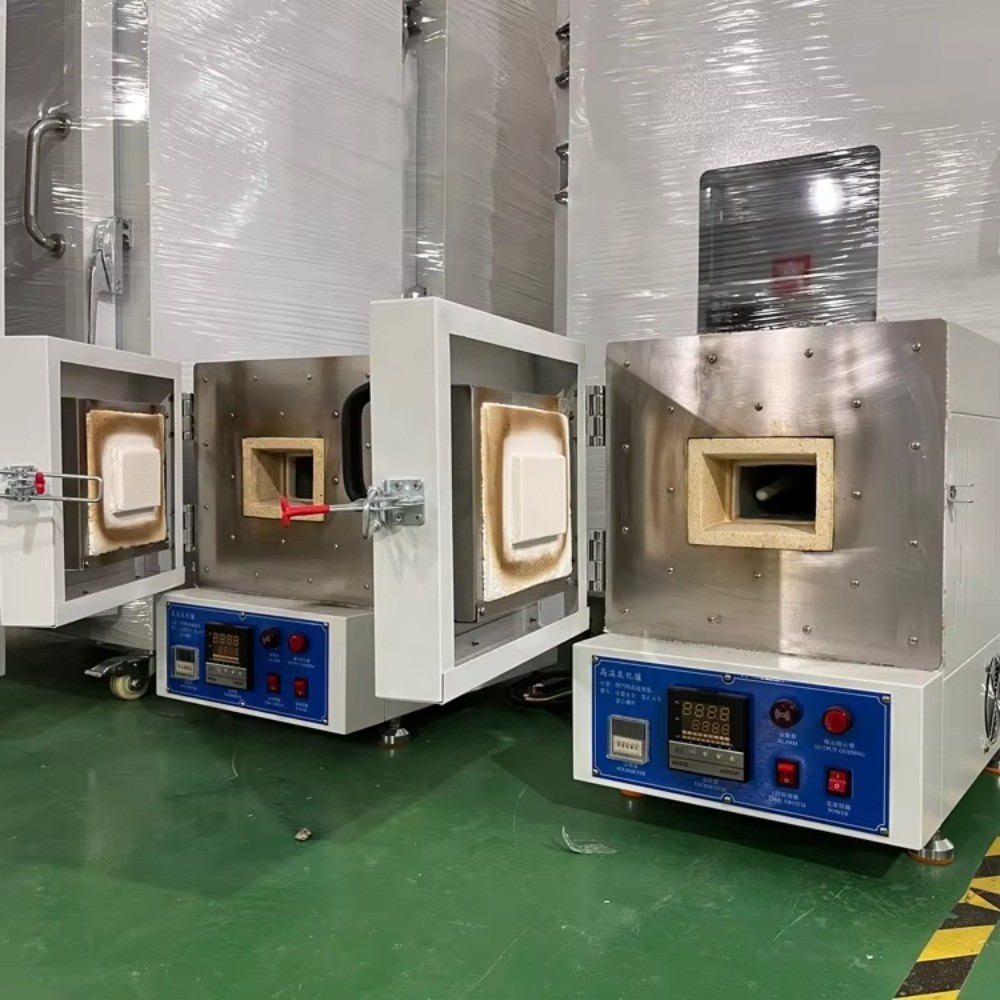

Ash Content Muffle Furnace
Muffle Furnace
Muffle Furnace price
Product description：Ash content Muffle furnace is designed for special baking process can be used for aging test of electronic components and plastic chemical products together with iron preheat, quenching, burn, stewing
INQUIRY

Product Introduction and Application

Ash content muffle furnace is a laboratory instrument used to determine the inorganic residue, or ash, remaining after a sample of organic material is heated to high temperatures. This process removes all water and organic matter, leaving behind a measure of the total mineral content of the sample. The muffle furnace, which can reach temperatures 1200°C, provides the controlled heat necessary for this dry ashing method.

It is designed for special baking process can be used for aging test of electronic components and plastic chemical products together with iron preheat, quenching, burn, stewing, annealing, ashing test, concise and other high fever processing experiment, ect.

Product Features

1. Earth leakage protection

2. Temperature digital display

3. High temperature alarm

4. Good temperature uniformity

5. Rapid heating up

6. Vacuum design

7. Less thermal pollution

Technical Data

Model	AMF-612	AMF-625	AMF-630	AMF-640	AMF-X
Chamber size (WHD)cm	12820	251640	302050	404060	customized
Temperature Range	RT~1200℃ If you need higher temperature, please let us know, it can be customized
Heating Up Time	RT~1200℃ About 50 min
Temperature Accuracy	±1℃
Heat Element	Top-quality resistance wire, based on temperature range, we also offer other heating elements like silicon carbide rods, SiC heaters, MoSi2 heaters, etc.
Thermal Couple	Type K, Type S, Type B, etc.
Temperature Control	• PID automatic control and auto-tune function. • 31 or 51 programmable segments for precise control. • Built-in protection for over-heated and broken Thermal couple. • Larger digital control panel (48 x 96 mm) for easy operation.
Furnace Structure	•1430 type high purity ceramic fiber insulation (energy saving 40% and weight lighter about 30% than old furnace); • Double layers steel casing with fan cooling, to ensure the surface of the furnace is below 50℃.
