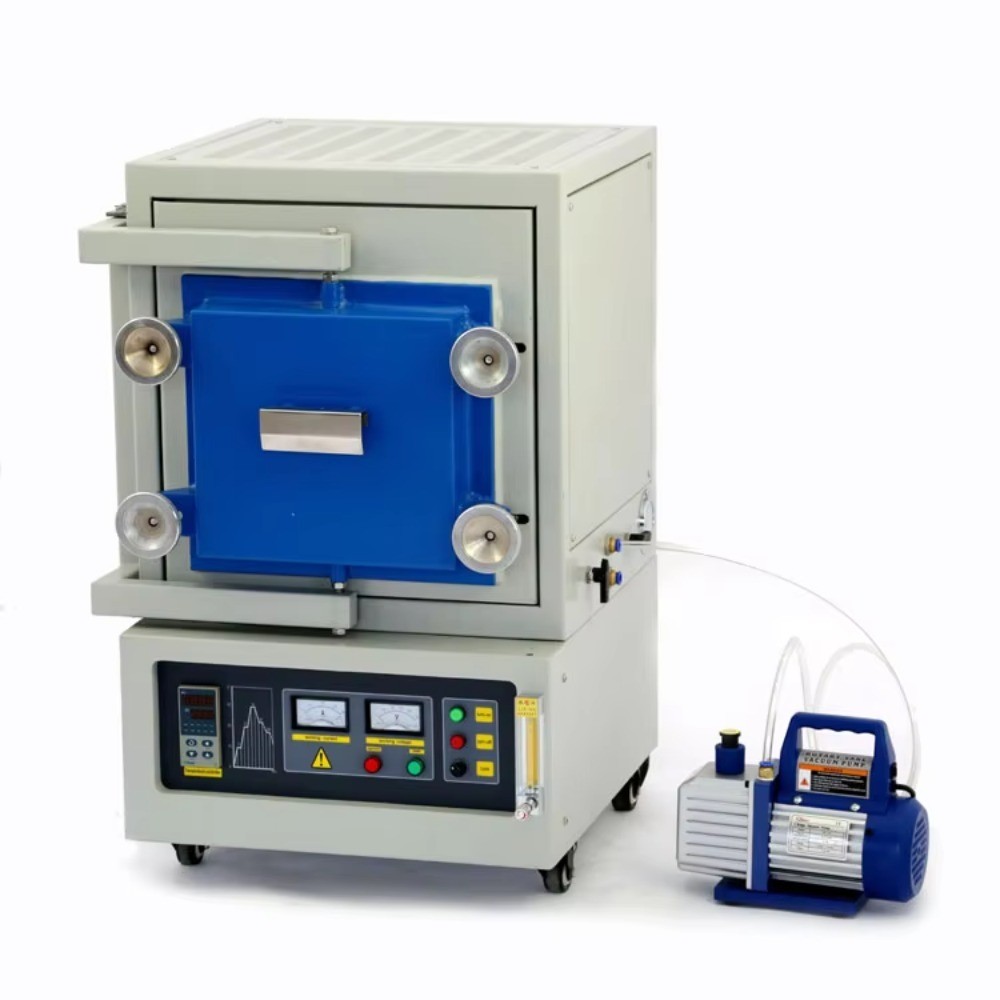

Atmosphere Vacuum Furnace

Product Item : AVF-17
Category： Other
Atmosphere Vacuum Furnace
Vacuum Furnace
laboratory Atmosphere Vacuum Furnace
Product description：Vacuum atmosphere furnace is a new heat treatment technology combining vacuum technology and heat treatment technology. Vacuum Furnace can be used for special baking process can be used for aging test
INQUIRY

Product Introduction and Application

Vacuum atmosphere furnace is a new heat treatment technology combining vacuum technology and heat treatment technology. Vacuum Furnace can be used for special baking process can be used for aging test of electronic components and plastic chemical products together with iron preheat, quenching, burn, stewing and annealing. It can be widely used for mining industry, laboratories, researching institutes, etc.

Technical Data

Model	AVF-17	AVF-18	AVF-19
Furnace size(WHD)mm	15015080	200150150	300200200
Outer size(WHD)mm	7357501200	700670930	7506601020
Weight(Kg)	155	190	300
power rating	3KW	5KW	9KW
Power	220V 50/60HZ
Temperature control precision	±1℃
end-use temperature	maximum temperature 1800℃
heating rate	0--30℃/min(recommended less than 20℃/min)
Thermocouple	Type B
heating element	Silicon molybdenum rod
Display mode	Color LED display
gasket ring	Fluorine ring
vacuum pump	Oil-immersed single rotary vane vacuum pump
Measuring mode	mechanical pressure gauge
Furnace material	High alumina polycrystalline ceramic fiber
Furnace structure	double-layer forced air-cooling structure
