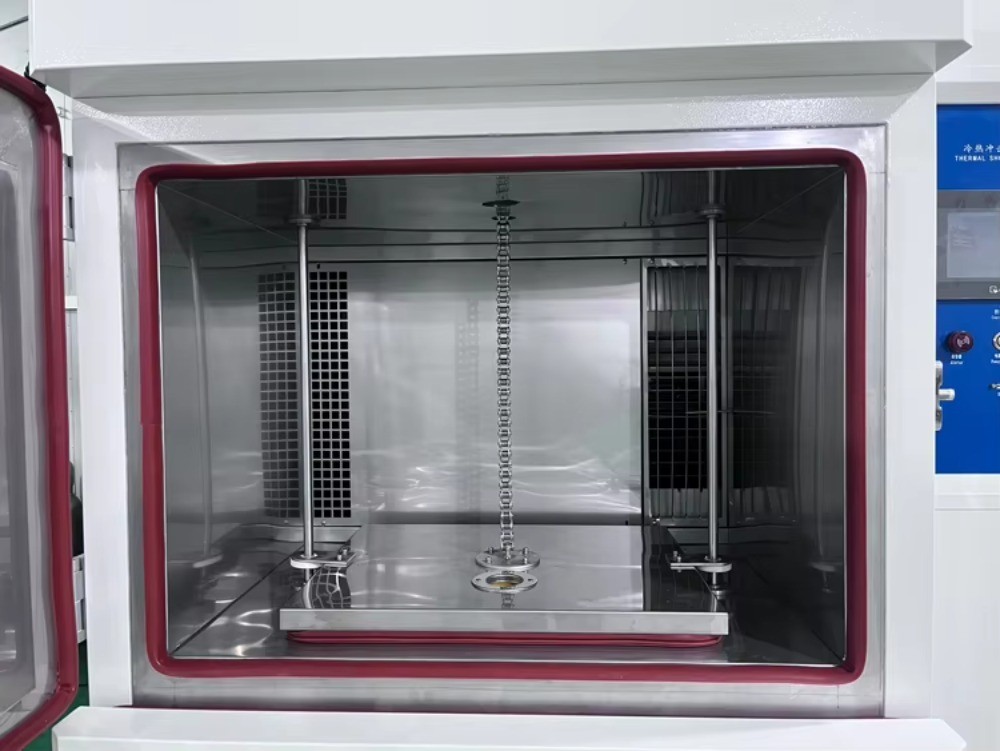

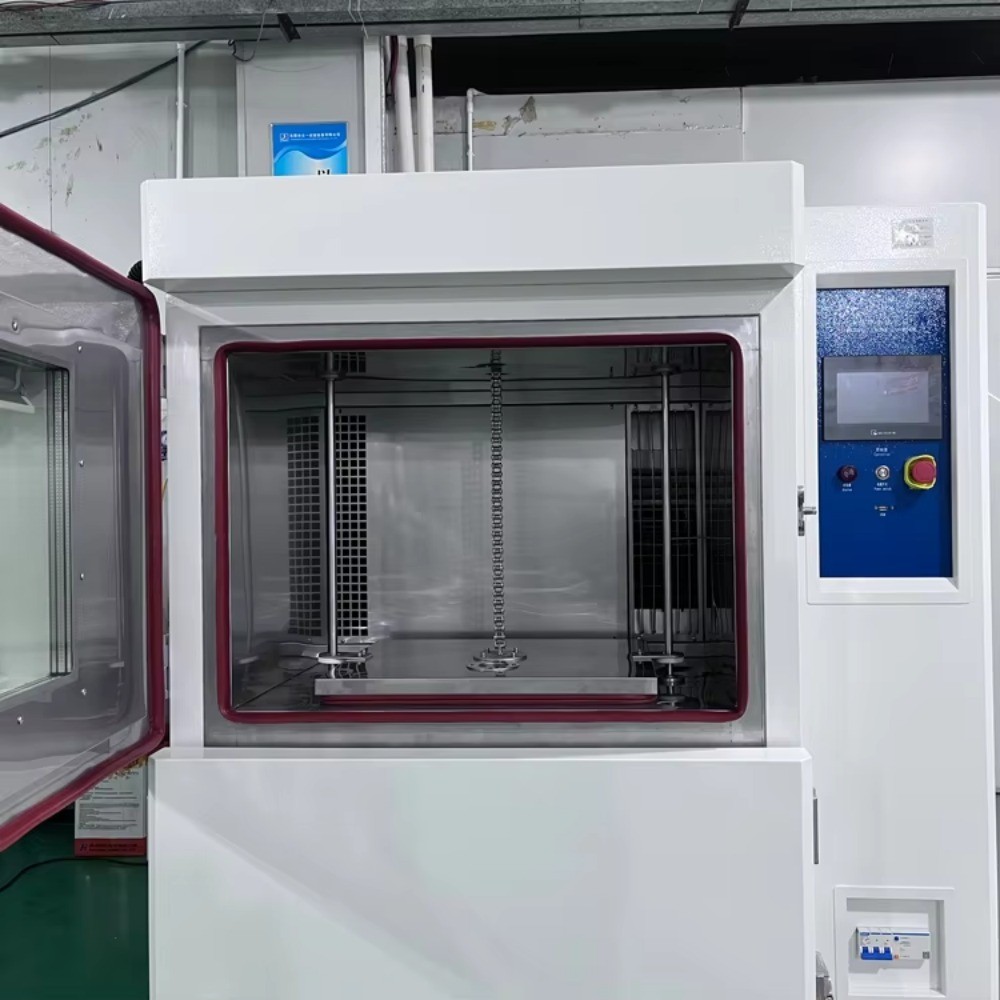

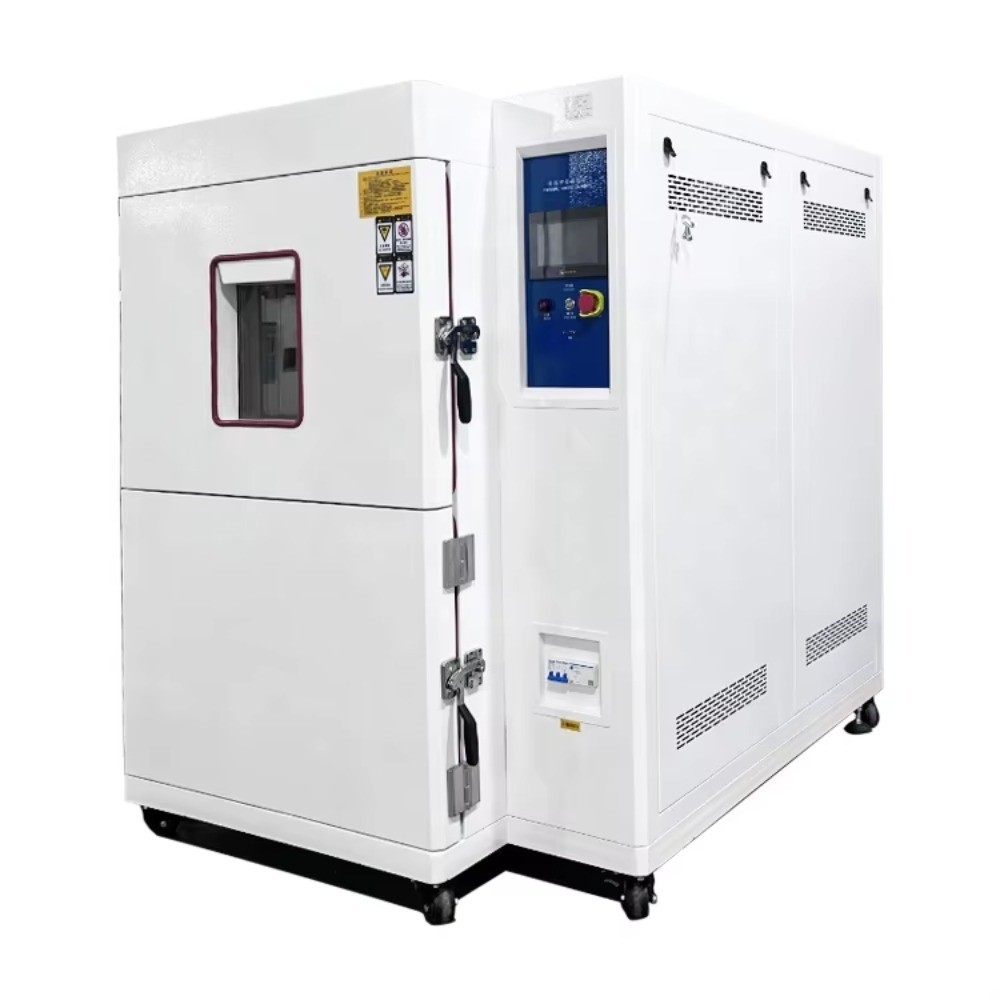

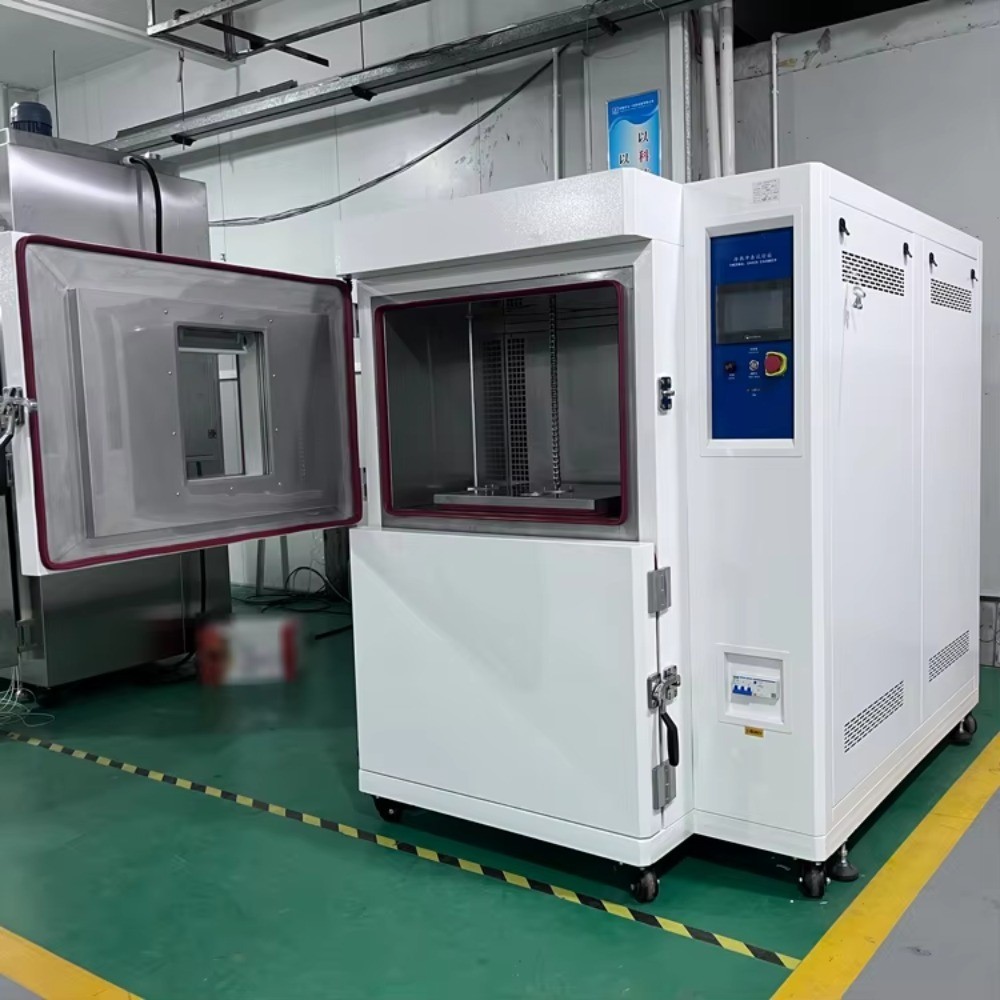

Thermal Resistance Test Chamber

Product Item : ETC-600
Category： Environmental Test Chamber
Thermal Test Chamber
Thermal Resistance Test Chamber
environment test chamber
Product description：Resistance test chamber is the perfect testing machine of electronic components, metal, chemical materials, automation components, communication module, national defense industry, aerospace industry,
INQUIRY

Product Introduction and Application

Resistance Test Chamber is the perfect testing machine of electronic components, metal, chemical materials, automation components, communication module, national defense industry, aerospace industry, BGA, PCB substrate, electronic chip IC, semiconductor ceramic and high polymer materials.

Product Features

1. Short temperature recovery time

The maximum temperature recovery time at upstream air for 2 zone test (+150°C and -65°C) and 3 zone test is only 5 min.(10 min. for TSA-201S and TSA-301L)

2. Great uniformity horizontal air flow system offers excellent specimen temperature uniformity.

3. Efficiency specimen temperature control (option)

Because of this feature, the equipment achieves set temperature attainment with rapidity and accuracy.

4. STT function (option)

Because of the specimen temperature monitor with trigger, exposure time starts only when the specimen has reached the set temperature, leading to more precise test results.

5. User-friendly controller The LCD touch-screen controller allows easy check of the test patterns, temperatures settings, test cycles and graph displays.

6. Reduced load current

7. Reduced operating noise

Technical Data

Inner Size(mm)	400×350×300, 400×500×400, 500×600×500, 500×750×600 and customized
Temperature Range	High temperature chamber: RT~+150°C Low temperature chamber: RT~-60°C
Temperature Deviation	≤ ±2°C
Temperature Conversion Time	≤10S
Temperature Recovery Time	≤5min
Resolution	TEMPERATURE: 0.01°C / TIME: 1 MIN
Controller	Programmable temperature controller
Temperature Sensor	PT 100 *3
Output Mode	PID + PWM + SSR CONTROL METHOD
Setting Range	TEMPERATURE: -100.00+200.00°C / TIME: OH1M ~ 9999H 59M / CYCLE ~ 10000 CYCLE
Cooling System	Water-cooled or air-cooled, Tecumseh compressor in France, environment-friendly refrigerant
Additional Features	The outlet and return it checks for taste known control /CM BUS (RS-485) remote monitoring management system /liquid nitrogen rapid cooling control device
