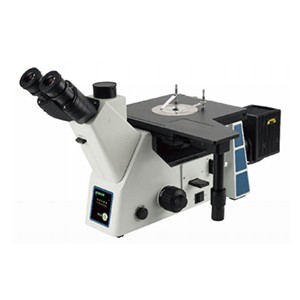

Inverted Metallurgical Microscope

Product Item : ZYMM5000
Category： Metal Testing Instrument
Inverted Metallurgical Microscope
Metallurgical Microscope
Microscope
Product description：The ZYMM 5000 is an ideal research-grade inverted metallurgical microscope. It features a newly designed infinity-corrected optical system and professional infinity long-working-distance plan-achromat
INQUIRY

The ZYMM 5000 is an ideal research-grade inverted metallurgical microscope. It features a newly designed infinity-corrected optical system and professional infinity long-working-distance plan-achromatic metallurgical objectives (supporting both bright field and dark field). Supporting a comprehensive range of observation modes—including bright field, dark field, simple polarization, and differential interference contrast (DIC)—it meets diverse research needs and is widely applicable to fields such as casting, smelting, heat treatment, PCB and semiconductor research, as well as raw material and general material analysis.

Product Features

1. Comfortable and Intuitive Operation

To accommodate long periods of observation, the ZYMM 5000 utilizes a low-position control layout. Users can rest their elbows fully on the workbench while focusing, eliminating the fatigue and soreness associated with keeping elbows suspended in mid-air. It also features a high-eyepoint, 360° rotatable binocular viewing head, fully adhering to ergonomic principles.

2. Stable and User-Friendly Design

The body is constructed from solid cast metal with a durable, wear-resistant finish, ensuring high quality and stability.

A carrying handle at the rear allows for easy and safe transport. The internal space is utilized to store disassembly tools compatible with major components, offering a practical, convenient storage solution.

The stage includes a locking mechanism to prevent unwanted movement caused by inertia during transport.

3. Front-Facing Magnification Display

Inverted microscopes often make it difficult to see the current magnification setting during switching—a major inconvenience for observation tasks. The ZYMM 5000 introduces a new objective magnification display feature; a built-in sensor shows the current magnification on the front of the instrument, streamlining research workflows. It comes standard with a five-position internal-indexing bright field/dark field nosepiece featuring a DIC slot.

4. All-New Smart ECO System

If the user steps away for an extended period or forgets to turn off the instrument, the newly added ECO infrared sensor system automatically cuts the power. The system reactivates upon the user's return. This feature not only saves energy but also extends the instrument's service life.

Infinity-Corrected, Long-Working-Distance, Plan-Apochromatic Metallurgical Objectives (Bright field/Dark field)

These objectives support bright field, dark field, simple polarization, and Differential Interference Contrast (DIC) observation modes.

High-transmittance lenses and advanced coating technology ensure the faithful reproduction of the sample's natural colors.

The semi-apochromatic design offers superior chromatic aberration correction, enhancing image contrast and clarity.

Supports Diverse Observation Methods

Comprehensive support for various observation techniques—including bright field, dark field, simple polarization, and DIC—to meet a wide range of research needs.

Technical Data

Item	Description	Configuration
Product Name	ZYMM 5000	—
Observation Mode	Reflected / Bright field / Dark field / Polarized / DIC	●
Optical System	Infinite Corrected Chromatic Aberration Optical System	●
Observation Tube	Trinocular tube, 45° inclination, 360° rotatable eyepiece group, fixed eyepiece sleeve, interpupillary distance adjustment range: 50–75 mm	●
Eyepiece 1	High eye-point wide field eyepiece PL10X/22 mm, diopter adjustable	●
Eyepiece 2	Measuring reticle high eye-point wide field eyepiece PL10X/22 mm, diopter adjustable	○
Eyepiece 3	High eye-point wide field eyepiece PL15X/16 mm, diopter adjustable	○
Objective Lens (Infinite Long Working Distance Plan Achromatic Metallurgical Objective)
5X Objective	Magnification: 5X, NA: 0.15, Working Distance: 9.0 mm, Cover Glass Thickness: 0 mm, Parfocal Distance: ∞	●
10X Objective	Magnification: 10X, NA: 0.30, Working Distance: 9.0 mm, Cover Glass Thickness: 0 mm, Parfocal Distance: ∞	●
20X Objective	Magnification: 20X, NA: 0.45, Working Distance: 3.4 mm, Cover Glass Thickness: 0 mm, Parfocal Distance: ∞	●
50X Objective	Magnification: 50X, NA: 0.55, Working Distance: 7.6 mm, Cover Glass Thickness: 0 mm, Parfocal Distance: ∞	○
100X Objective	Magnification: 100X, NA: 0.80, Working Distance: 2.1 mm, Cover Glass Thickness: 0 mm, Parfocal Distance: ∞	○
Objective Revolver	Internally positioned 5-hole dark field turret (with DIC slot), built-in magnification sensor	●
Stand	Reflected light metallurgical stand, equipped with bright/dark field switching device; variable field diaphragm & aperture diaphragm with centering adjustment; with filter slot and polarizer slot, lamp brightness indicator strip; with infrared remote control and objective magnification display	●
Stage	3-layer mechanical moving stage, platform size: 240(W) × 250(L) mm, moving range: 50 × 50 mm	●
Stage Insert 1	Metal carrier plate, light transmission hole diameter: 12 mm	●
Stage Insert 2	Metal carrier plate, light transmission hole diameter: 25 mm	○
Illumination System	External wide-voltage transformer, input: 100–240V, output: 15V/13.4A, continuously adjustable brightness	●
Focusing System	Low-position coaxial coarse & fine focusing knob; coarse travel: 9 mm, fine focusing precision: 0.002 mm	●
Differential Interference Contrast	DIC differential interference module	○
Color Filters	Blue / Green / Yellow	○
Polarizer Accessories	Analyzer rotatable 360°, polarizer and analyzer can be removed from light path	○
Power Supply	Adaptive wide voltage 90–240V	●
Camera Imaging	Trinocular synchronous optical output, standard C-mount; optional cameras: 5 Megapixel USB2.0, 6.3 Megapixel USB3.0, 9 Megapixel USB3.0; direct image acquisition, no extra capture card required	●
Measurement Software	Professional image processing & measurement software. Basic camera functions: live preview, image capture, camera parameter adjustment, video recording & playback. Complete measurement function for accurate size detection of micro samples (dot diameter, area, cell area, etc.). Supports auto counting, image stitching and image fusion; data can be exported to Excel and Word, humanized interface design	●
Metallographic Atlas Comparison System	Calibration, annotation and atlas comparison function, built-in more than 400 metallographic atlases, directly adopt Word document as template for easy report generation	○
Metallographic Image Analysis System	Calibration, annotation, atlas comparison, quantitative analysis, grain size measurement, detection of area, perimeter and other geometric features; equipped with the latest metallographic atlas, 17 analysis and grading modules including spheroidization and graphite	○
Overall Warranty	1 Year	●
