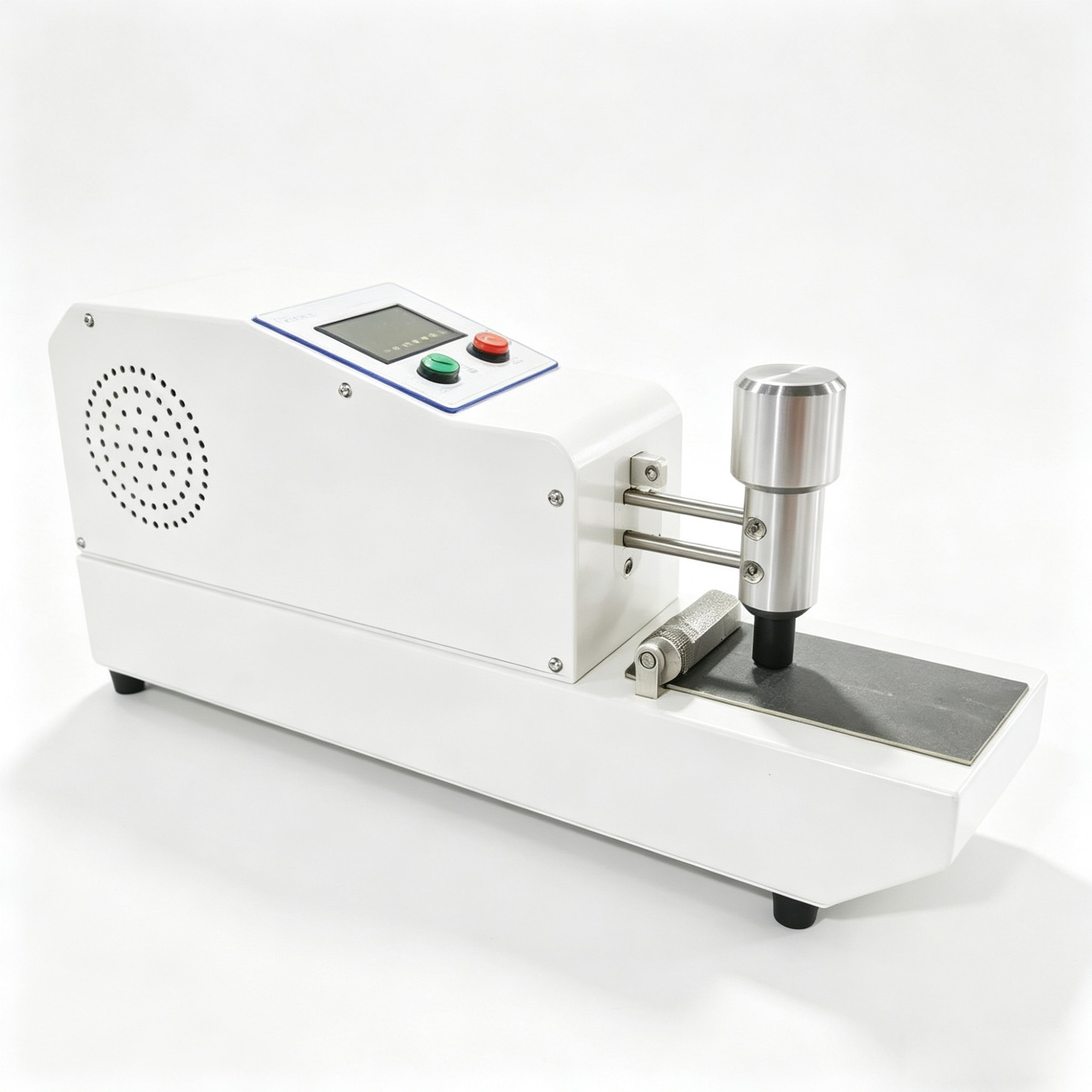

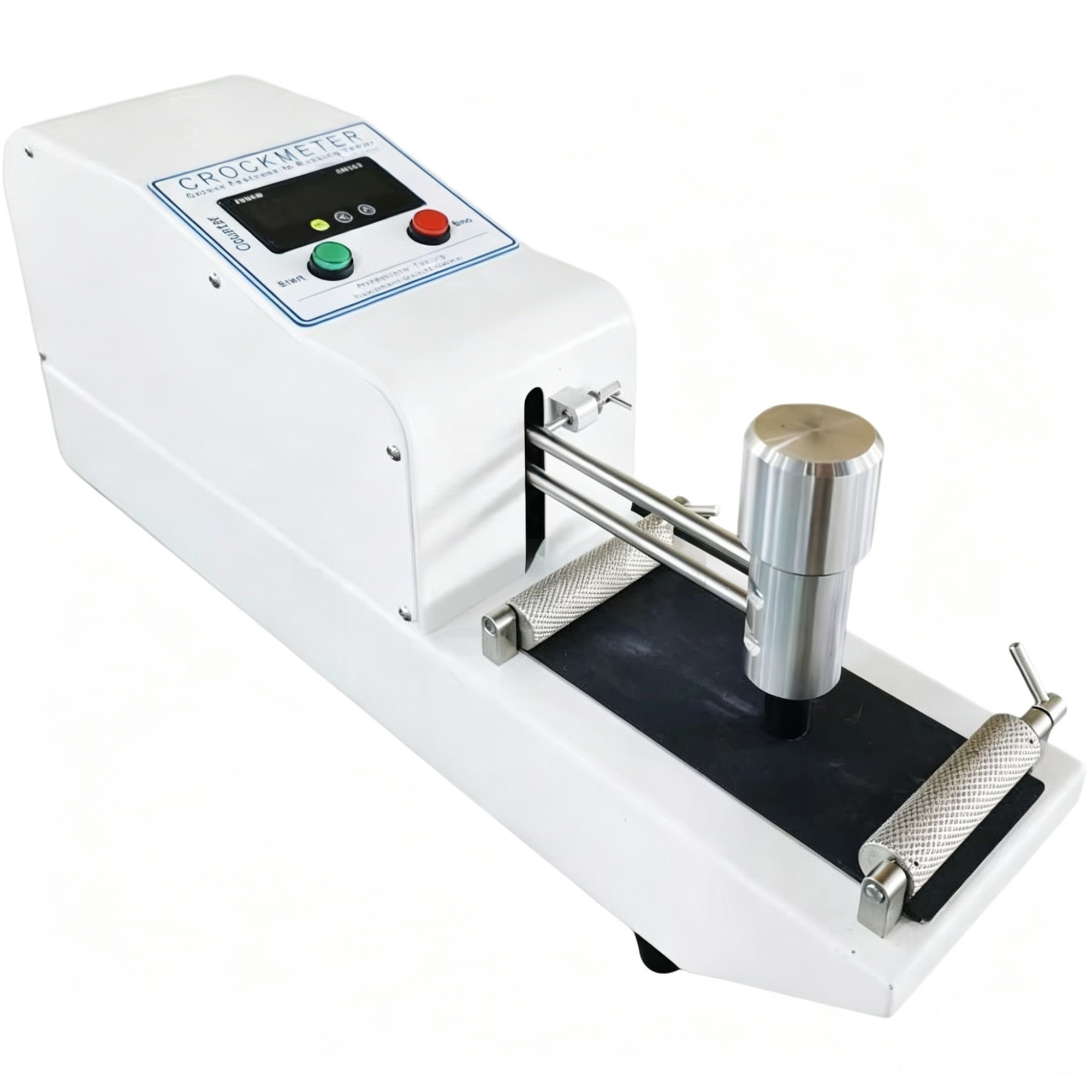

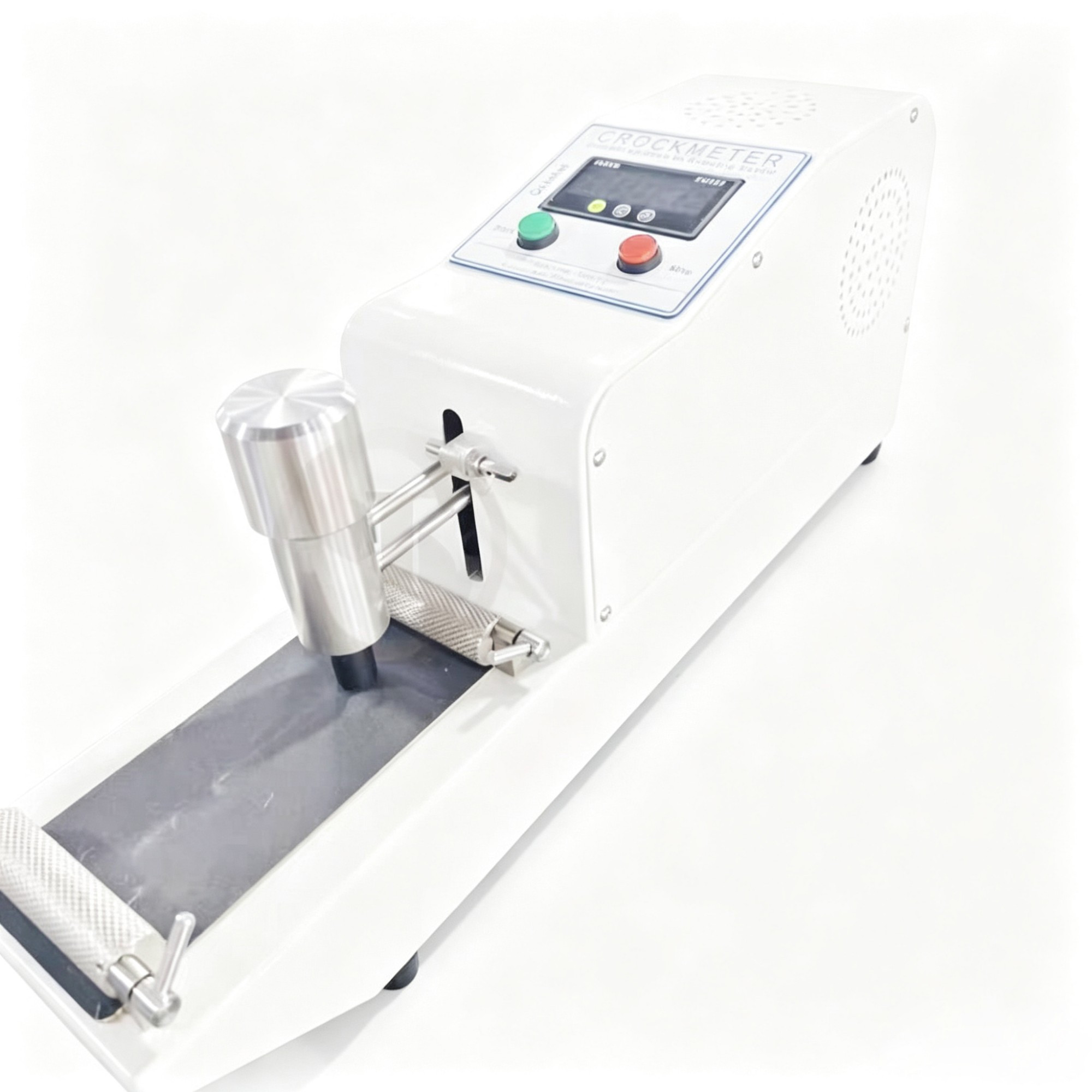

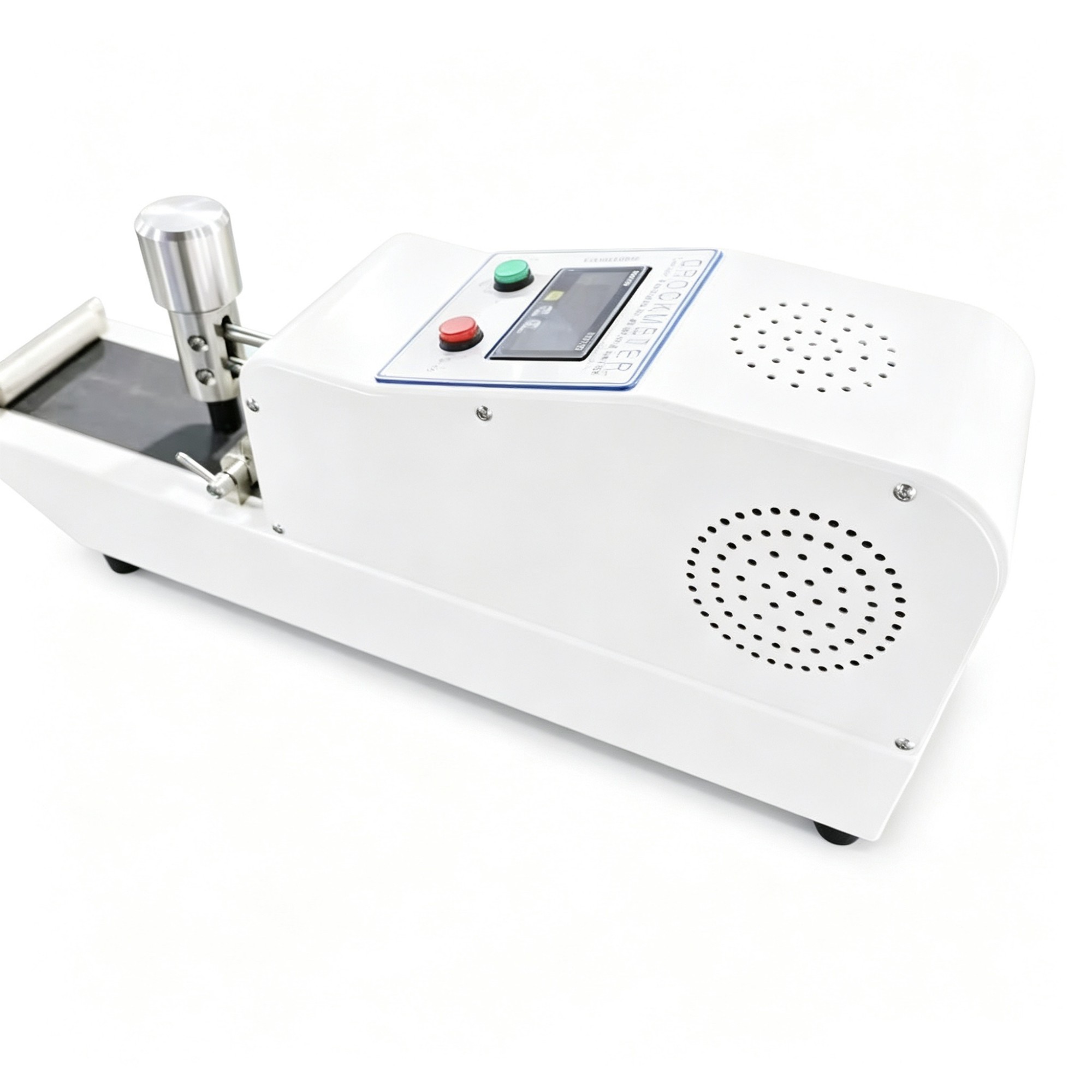

AATCC Crockmeter Color Fastness Rubbing Tester

AATCC Crockmeter Color Fastness Rubbing Tester

Product Item : ZYCM-238
Category： Textile Testing Equipment
AATCC Crockmeter
Crockmeter
Color Fastness Rubbing Tester
Color Fastness Tester
Product description：AATCC crockmeter is used for the rubbing color fastness test of all kinds of textiles, including dyed or printed yarns, fabrics and textile products made from various fibers, as well as textile carpet
INQUIRY

Application

This instrument is used for the rubbing color fastness test of all kinds of textiles, including dyed or printed yarns, fabrics and textile products made from various fibers, as well as textile carpets and other pile fabrics.

Working Principle

Rub the textile specimen separately with a dry rubbing cloth and a wet rubbing cloth, then evaluate the staining degree on the rubbing cloth.

Standards

The tester is manufactured in accordance with GB/T 3920, ISO 105-X12, AATCC 8, JIS L0849 Type I and other relevant international & domestic standards.

Technical Data

Item	Parameter
Load of rubbing head	9N
Testing speed	60±2 rpm/min
Testing stroke	104±3mm
Diameter of rubbing head	16mm
Specimen size	70mm×215mm
Standard rubbing white cotton cloth size	50mm×50mm
Counter	LED digital display, programmable from 0 to 9999 cycles
Overall dimension (W×D×H)	14×59×22 cm
Net weight	Approx. 15 kg
Power supply	Single-phase AC 220V, 2.7A
