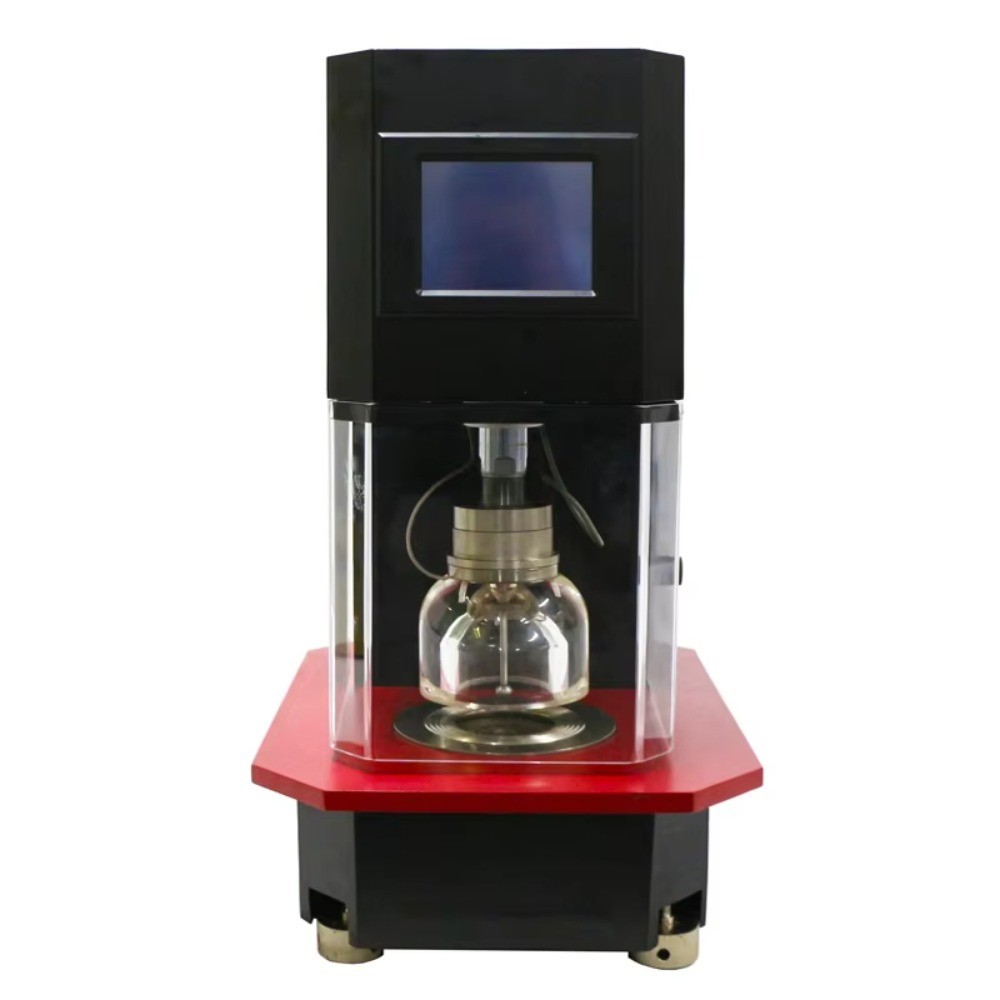

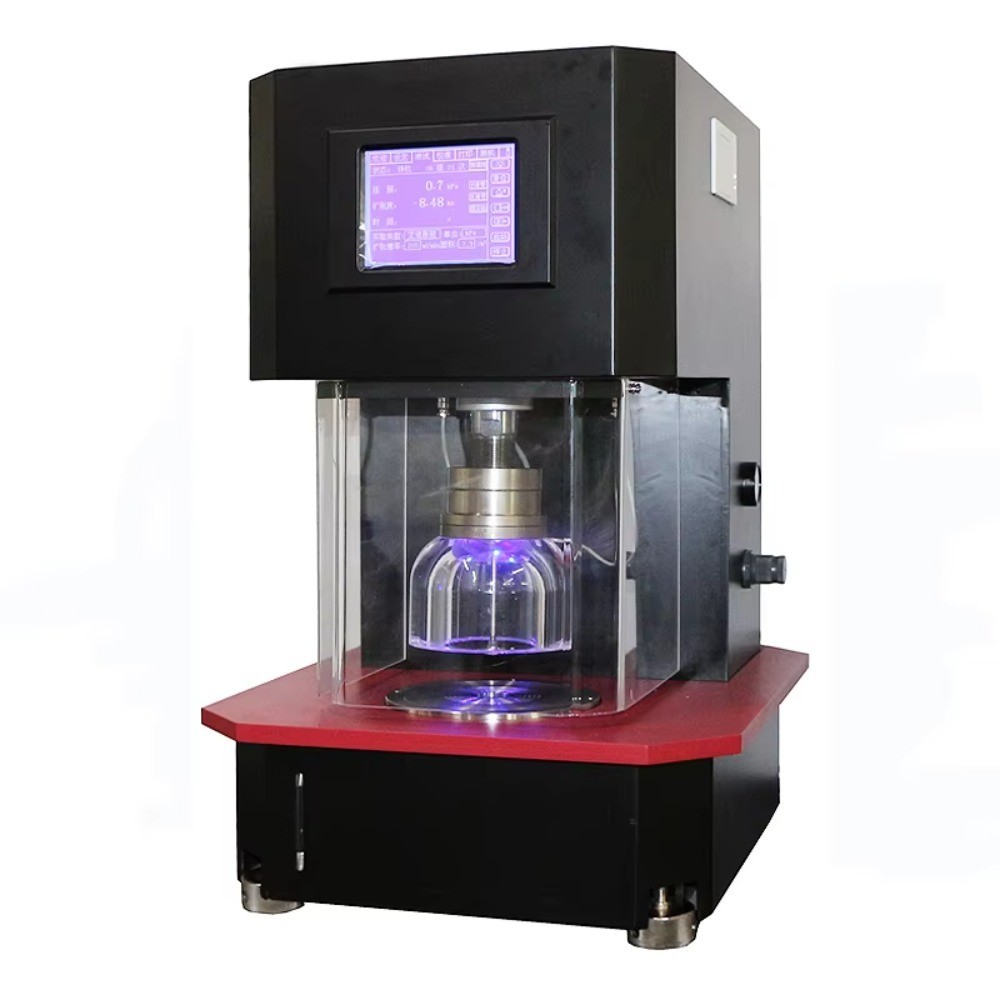

Burst Strength Tester

Product Item : BST-300
Category： Textile Testing Equipment
burst strength tester
burst strength tester for textile
Burst Strength Tester-Textile & Fabric
Product description：It is design to measure the burst strength and expansion of woven and knitted fabrics, as well as technical textiles, non-wovens, bonded fabrics, plastics, leather (artificial and natural) and cardboa
INQUIRY

Product Introduction

Textiles without a specific orientation cannot be tested for strength in a tensile tester; A multi directional force created by hydro-static pressure is applied to the fabric to check its strength fabrics, this phenomenon is called burst strength testing. It is specially designed for bursting strength testing of rigged fabrics, with pneumatic control. It can also be used on leather, paper and cardboard, etc.

Application

Determine the burst strength and expansion of woven and knitted fabrics, as well as technical textiles, nonwovens, bonded fabrics, plastics, leather (artificial and natural) and cardboard.

Textiles: knitted and woven clothing, technical textiles

Non-wovens: wet wipes, surgical gowns/masks

Plastics: food packaging, bin liners, sacks, and various plastic products

Medical: Organ patches, hernia patches, wound dressings, animal skin

Paper: kitchen paper, toilet paper, and other paper products

Standards

ASTM D 3786 Standard Test Method for Hydraulic Bursting Strength of Textile Fabrics Diaphragm Bursting Strength Tester Method

BS 4768 Determination of Bursting Strength and Bursting Expansion

ISO 13938-1 Textiles—Burning properties of fabrics—Hydraulic method for determining bursting strength and bursting expansion

ISO 2758 Paper—Determination of bursting strength

ISO 2759 Boards—Determination of bursting strength

ISO 3303 Determination of bursting strength of rubber or plastic coated fabrics—Hydraulic method

WSP 030.1.R3(12), BS 3424(PT6), ERT 80-4-20, EN 12332-2, IWS TM 29, ASTM D751, JIS L-1018

Technical Data

Model	BST-300
Expand the measurement range	Up to 75 ± 0.02 mm

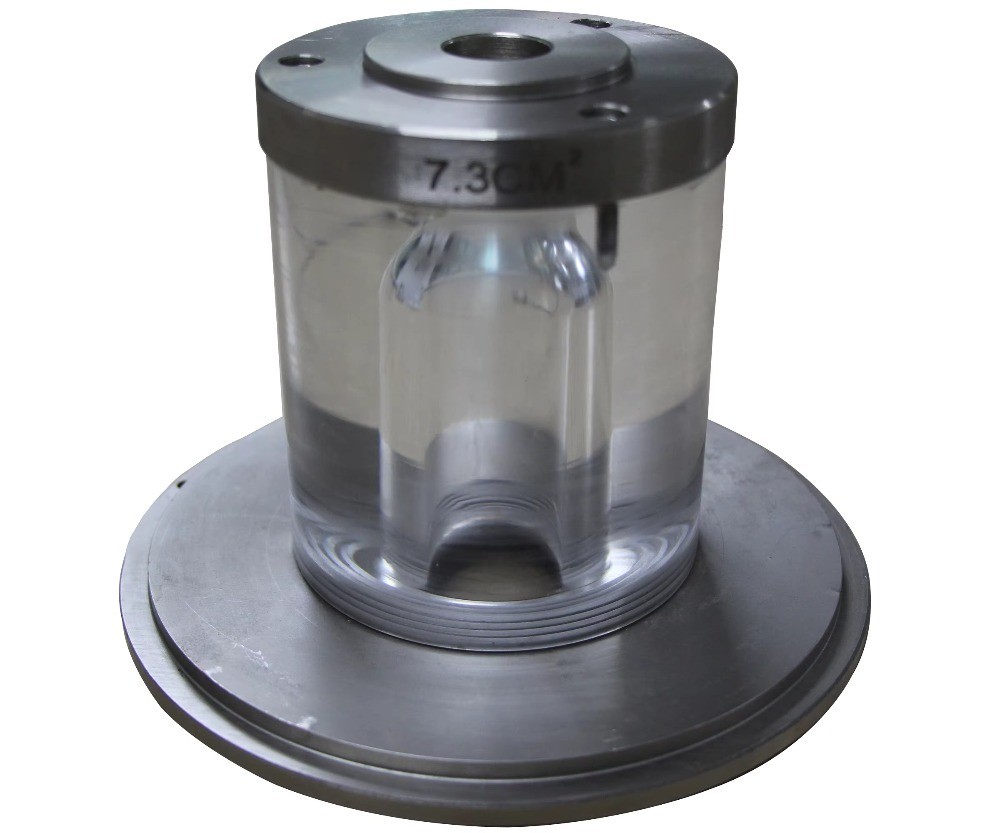

Measurement area	7.3cm² (Ø 30.5mm), 50cm² (Ø 79.8mm)
Optional	7.1cm ² (ø30.1mm)，7.55cm ² (ø31mm)，7.8cm ² (ø31.5mm)， 10cm ² (ø 35.7mm)，100cm ² (ø 113mm)
Unit of measurement	kPa - kgf/cm² - mmHg - lb/in² - atm
Test method	Constant rate - constant pressure - constant expansion - timing
Hydraulic system flow rate (adjustable)	20-600 ml/min
Hydraulic oil	Glycerin 85%, Distilled Water 15%
Safety sensor	Overscale automatic stop
The diaphragm rubber is thick	≤ 2 mm
Data port	RS232 port for printer connection and 3-pin Mini-DIN connector for PC.
Dimensions	550x450 x 700 mm
Power supply	220V, 50hz or 110V, 60Hz
Air demand	600-800kPa
Weight	125 kg
