Coating Thickness Gauge

Category： Coating Thickness Gauge
Model :ZY-CM10
Measuring Range: 0-3000um /0-10000um/0-2000um/0-1500um
Product description：Application：Painting, Varieties of Anti-Corrosion Coating, Powder Spraying, Plastic, Rubber, Synthetic Material, Phosphate Coating, Chromium, Zinc, Aluminum, Tin, Cadmium, Oxide Film and Phosphate Fil
INQUIRY

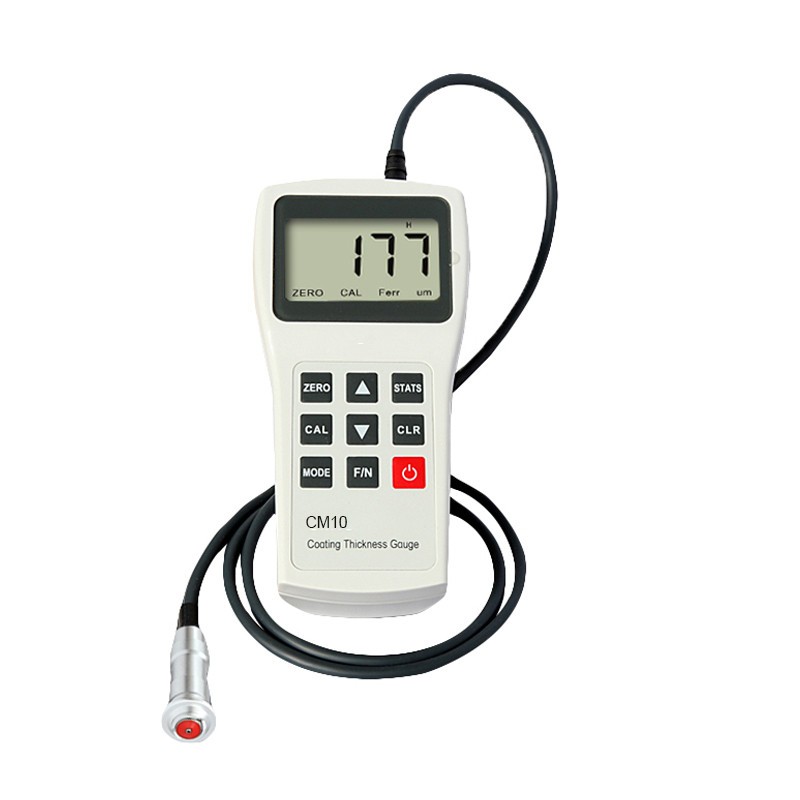

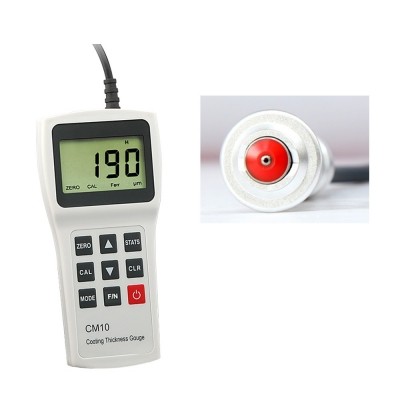

This compact and handy pocket gauge has been designed for non-destructive, fast and precise coating thickness measurement. Fit for both experiment and project site. According to the probe type, the gauge work either on the magnetic induction principle or on the eddy currents principle.

Measuring Principle:

Magnetic Method (Fe): Measuring the thickness of non- magnetic coatings on steel, iron and otherferromagnetic metal substrates, e.g. painting, varieties of anti-corrosion coating, powder spraying, plastic, rubber, synthetic material, phosphate coating, chromium, zinc, Aluminum, tin and cadmium, etc.
Eddy Current Method (NFe): measuring the thickness of non-conductive coatings on copper, aluminum, stainless steel and other non-ferromagnetic substrates, e.g. painting, varieties of anti-corrosion coating, powder spraying, plastic, rubber, synthetic material, oxide film and phosphate film, etc.
