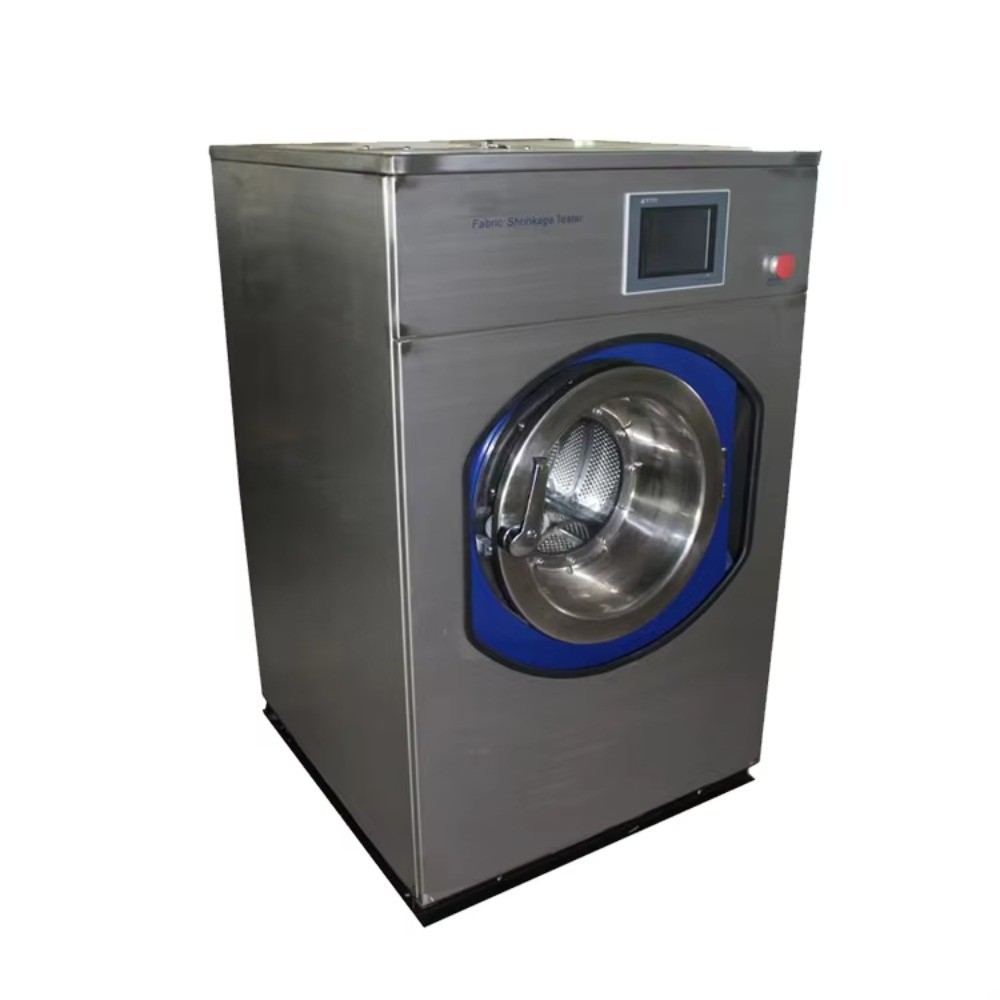

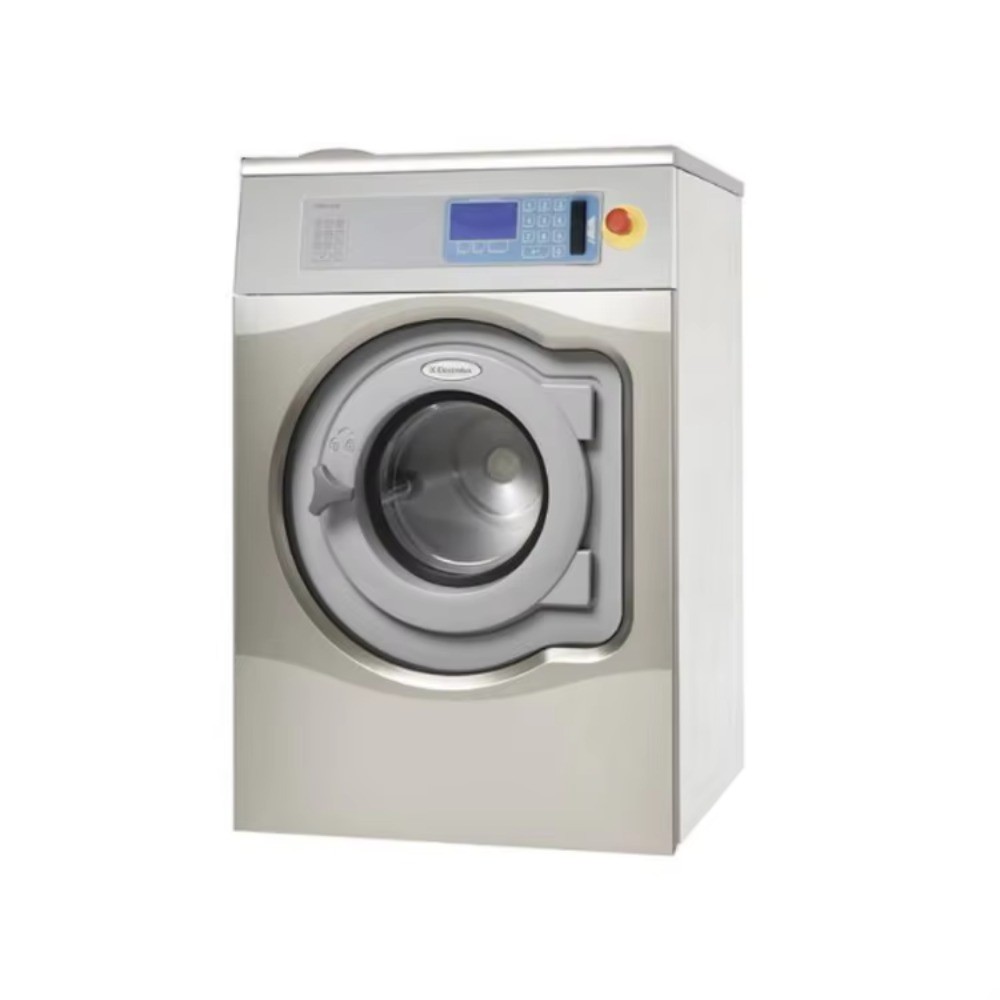

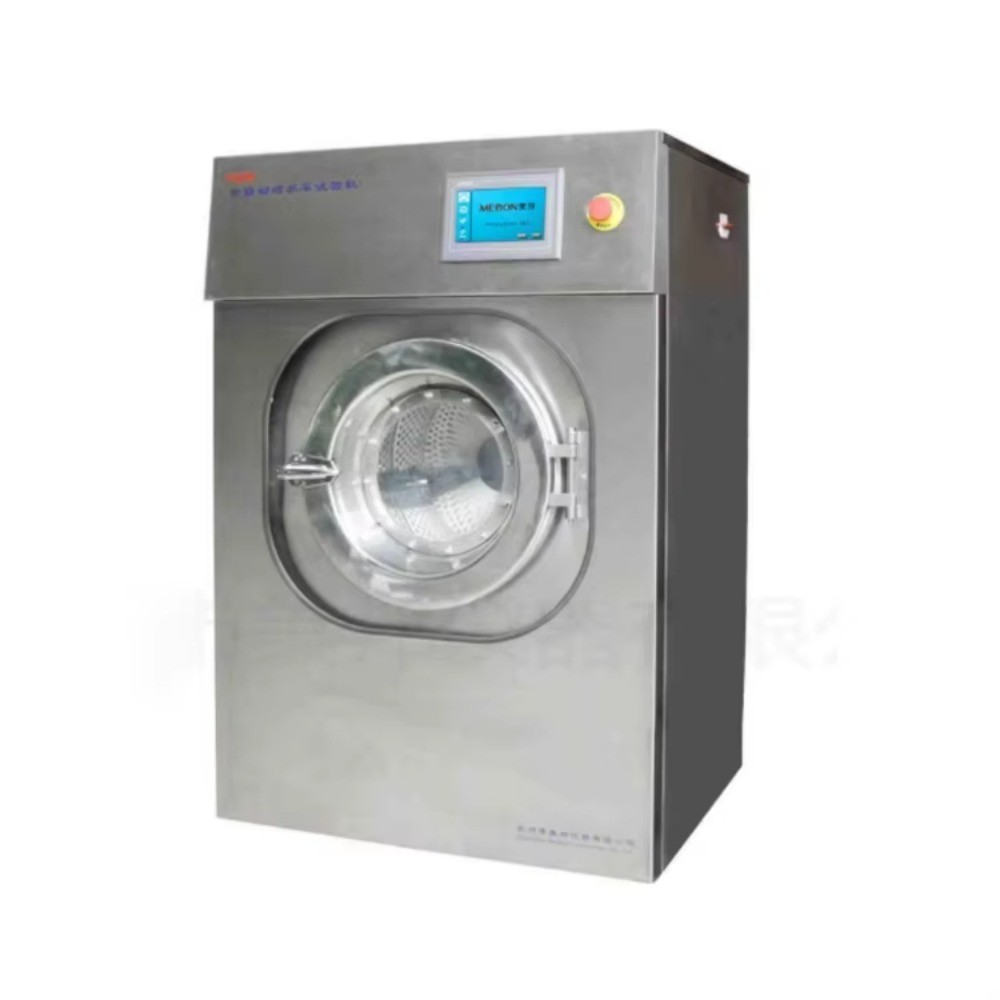

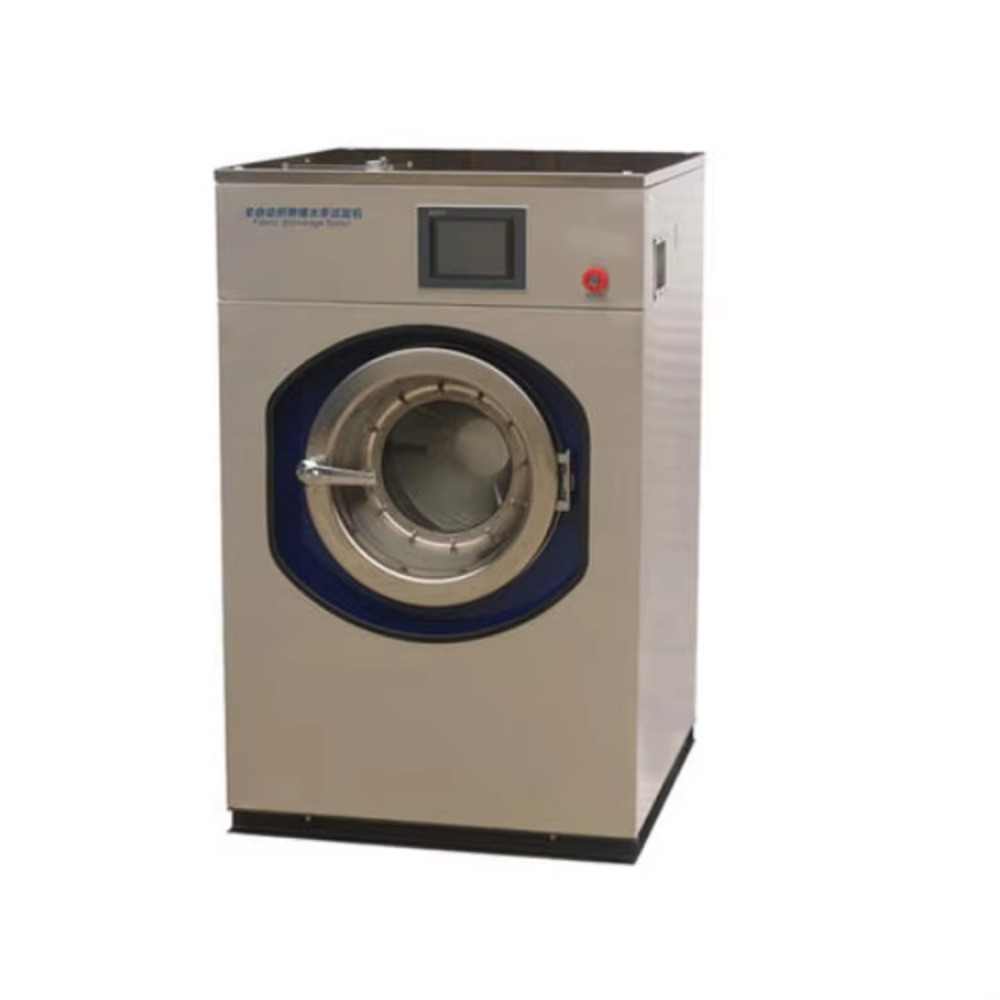

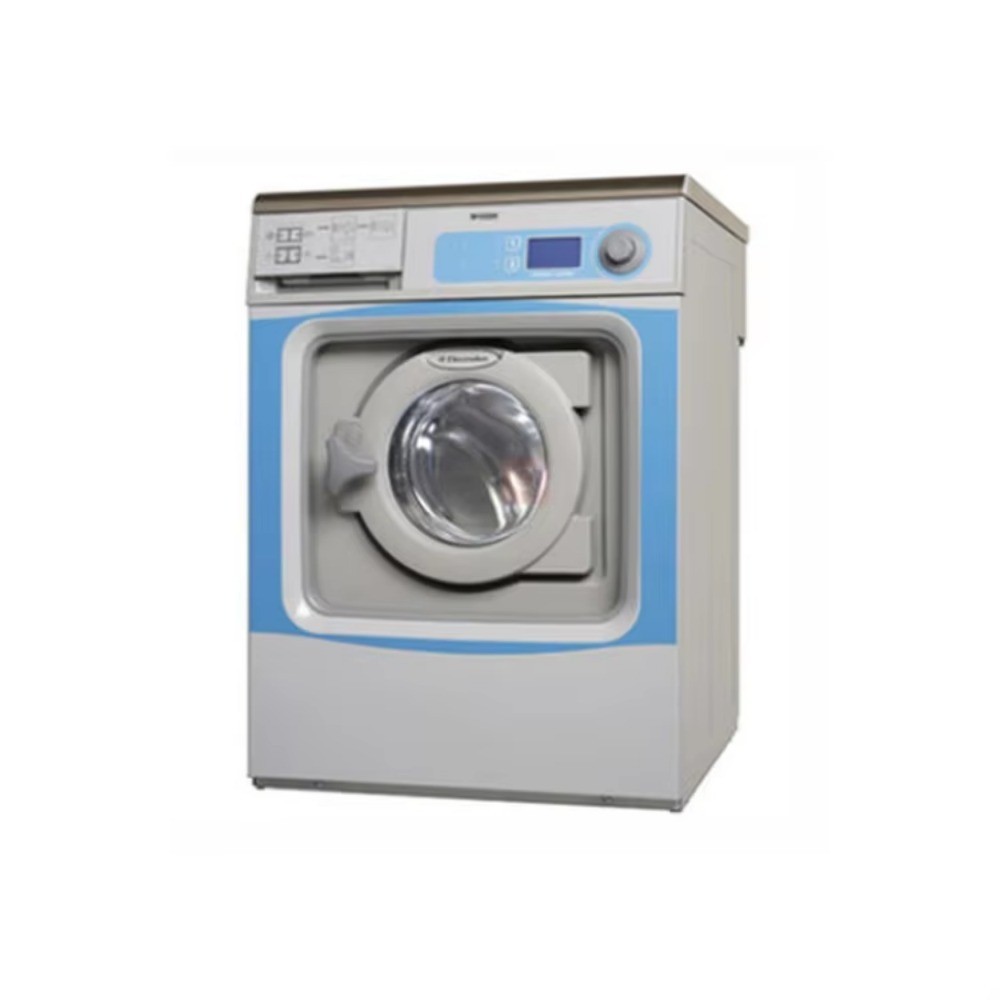

Fabric Shrinkage Tester

Product Item : FST-520
Category： Textile Testing Equipment
Shrinkage Testers
Shrinkage Test Machine
Fabric shrinkage tester price
Product description：Fabric Shrinkage Tester is used to test the shrinkage and sagging of various textiles (such as cotton, wool, silk, linen, chemical fiber, knitwear, clothing, etc.) after washing. Suitable for long-ter
INQUIRY

Product Introduction

Fabric Automatic Fabric Water Shrinkage Tester is used to test the shrinkage and sagging of various textiles (such as cotton, wool, silk, linen, chemical fiber, knitwear, clothing, etc.) after washing. Suitable for long-term testing in factories and test centers. It is horizontal drum type and front door feeding method.

Standard:

EN/ISO-6330-2012 ISO 5077 IWSTM31 JISL1909 BS4923

EN25077/26330 FZ/T70009 AATCC 135

Product Feature

1. The instrument used is used in industrial design and is suitable for demanding long-term continuous testing requirements

2. Dedicated hanging inner tank, smooth operation without vibration Includes
12 sets of washing programs, users can prepare 6 sets of their own shrink programs, and provide program storage

3. Adopt frequency conversion control technology to protect electrical safety and smooth operation.

4. Large touch screen display with clear digital display

5. High-precision pressure sensor is used to ensure accurate and reliable water level.

6. Out fully made of stainless steel on the sides and interior.

Technical Data

Inner layer roller	Diameter: 520 ± 1 mm
Inner layer roller	Depth: 315 ± 1 mm
Inner and outer roller clearances	2.8 cm ± 0.1 cm
Increase the amount of leaves	3 PCS 120° evenly distributed
Increase blade height	53 mm ± 1 mm
Rotation action	Normal Opening :( 12 ± 0.1)S, normal shutdown (3 ± 0.1)S Lightly on :( 8 ± 0.1)S, light off (7 ± 0.1)S Gently open :( 3 ± 0.1)S, gently close (12 ± 0.1)S Soft: Rotate clockwise (3 ± 0.1)S, stop (12 ± 0.1)S Rotate counterclockwise (3 ± 0.1)S, stop (12 ± 0.1)S
Rotation speed	Washing :( 52 ± 1)r.p.m Low spin :( 500 ± 20)r.p.m High spin :( 800 ± 20)r.p.m
Water level control	Low level: 10 cm, High level: 13 cm
Water filling time	<2min (water in high water level 13 cm.)
Drainage duration	<1min (water in high water 13cm)
The set range is water temperature	Room temperature to 99 °C (accuracy: ± 1 °C)
Heating power	5.4 kW
Washing capacity	5 kg
Exterior dimensions	850 mm × 750 mm × 1200 mm
weight	140 kg
power supply	Three-wire four-phase 380V ± 10% 50Hz
