ISO Laundering Machine Standard European Washing Machine Fabric Shrinkage Testing Machine

Product Item : ZHIYI-C22
Category： Textile Testing Equipment
Product description：ISO Laundering Machine Standard European Washing Machine Fabric Shrinkage Testing Machine
INQUIRY

Product Description

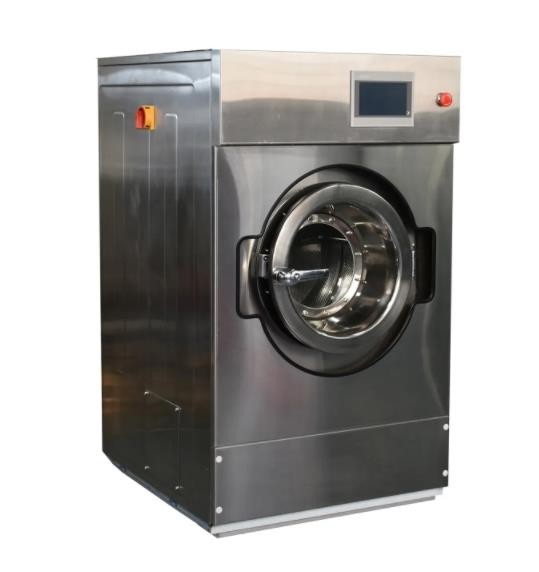

ISO Laundering Machine Standard European Washing Machine Fabric Shrinkage Tester

It is suitable for the shrinkage test after washing of cotton, wool, silk, linen and chemical fiber woven fabrics in the textile laboratory, and the relaxation and felting test of wool textiles after machine washing.
Compliant with standards: GB/T1105, GB/T8629-2001, FZ/T70009, ISO5077/6330, IWS TM31, BS 4923, EN25077/26330, JIS L1909, etc.

Type	front loading, horizontal drum type
Washing tub action	Normal washing: forward 12S, stop 3S, reverse 12S, stop 3S Gentle washing: forward 3S, stop 12S, reverse 3S, stop 12S
Diameter of washing drum	51.5±0.5 cm
Washing tub depth	33.5±0.5 cm
Working water level	low water level 10cm High water level 13cm
Water inlet time	<2min when filling 13cm (water pressure 0.1Mpa)
Drainage time	from 13cm water level to <1min after draining
Maximum washing capacity	4Kg
Electric heating power	5.4KW
Temperature control	water temperature ~ 99°C (accuracy ±1°C)
Power supply	220±10% 50Hz
Dimensions	850mm×720mm×1220mm
Net weight	about 300Kg
