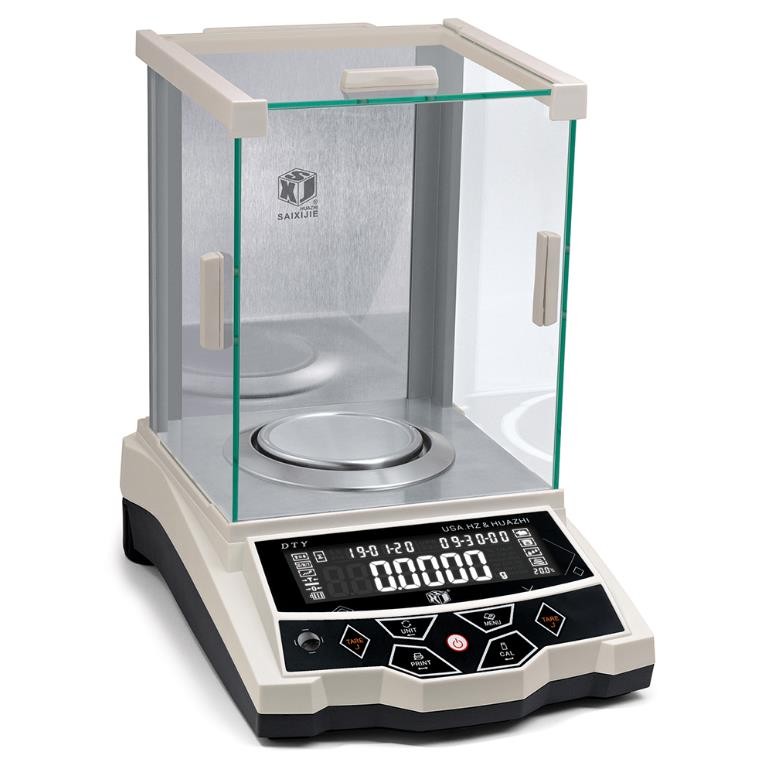

DTY series using new numberic mainboard: multiple mainboard technology, higher integration project. DTY series balance has many different application, multiple intelligent anti-shock technology, temperature compensation with whole range, multipoint linearity calibration and so on. Highly compatible software program widely satisfy user’s advanced request of high precision balance.
■Application Mode
※Percentage Weighing
※With density determination
※With dynamic weighing function
※Selectable weighing and count mode
※Pricing function
※High-low weighing function
※Gross/Net/Tare weight weighing
※Peak holding function
※Accumulate function
Weighing functions are selectable on PC. Measurements can be imput into EXCEL, WORD and other files on PC.
■Characteristic
◆Super Monobloc sensor
◆Auto dual range, dual precision
◆Set internal calibration according to use-set temperature
◆Real-time temperature compensation
◆Seven level anti-vibration adjustable
◆VATN Backlit LCD Display
◆Weighing stableness time adjustable
◆More than 20unit shield: g, mg, ct...
◆Default weighing mode automatically
◆Date, time and temperature setting
◆With carrying handle and rear tool box
◆RS232 to communicate with external equipment
◆Measurements are directly readable on PC
◆Anti-static draftshield with mental backboard
◆Overload protection
On condition that nothing on the pan, the balance will calibrate itself automatically when temperature reaches user-set value.
Item No. |
Capacity |
Readability |
Repeatability |
Linearity |
Pan Size (mm) |
Response Time |
Housing (mm) |
DTYN-124/223 |
120g/220g |
0.1mg/0.5mg |
±0.1mg/±0.5mg |
±0.2mg/±1mg
|
Φ90 |
2-5 sec. |
295×205×305 |
DTYN-224/323 |
220g/320g |
||||||
DTYN-324/423 |
320g/420g |
±0.2mg/±1mg |
±0.3mg/±2mg |
||||
DTYN-404/503 |
400g/500g |
||||||
DTYN-504 |
500g |
0.1mg |
±0.2mg |
±0.4mg |
