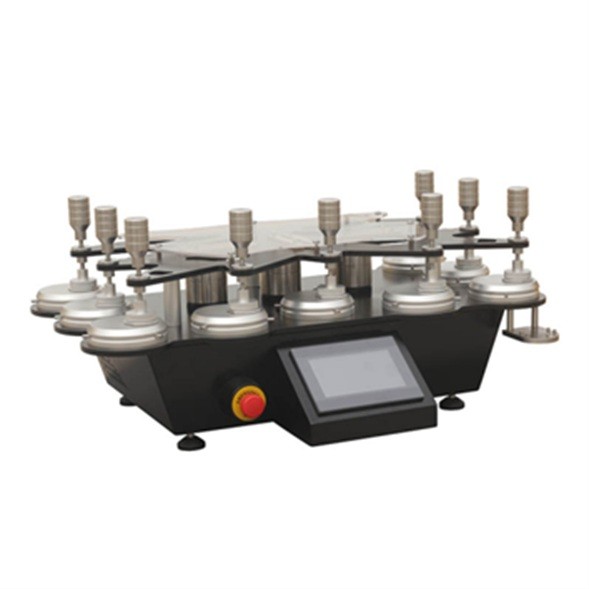

Martingale Abrasion and Pilling Tester (9 head)

Product Item : ZHIYI-401G
Category： Textile Testing Equipment
Abrasion and Pilling Tester
Martingale Abrasion
Martingale Abrasion and Pilling
Pilling Tester
Product description：It is designed for determining the abrasion resistance, pilling properties, and surface changes of woven fabrics, knitted fabrics, napped fabrics, coated fabrics, and non-woven fabrics. Product Featu
INQUIRY

Product Introduction

It is designed for determining the abrasion resistance, pilling properties, and surface changes of woven fabrics, knitted fabrics, napped fabrics, coated fabrics, and nonwoven fabrics.

Standards

1. Abrasion Resistance: GB/T 21196.2, GB/T 13775, ISO 12947, ISO 17704, ISO 5470-2, ASTM D4966, IWS TM 112, BS 2543, BS 3424-24, BS 5690, BS 8428, M&S P19, Next 18, SN 198529, TWC 112, JIS L1096.

2. Pilling Resistance: GB/T 4802.2, ISO 129+45-2, ASTM D4970, IWS TM 196, M&S P17, Next TM26, 198525.

Product Features

1. Three motion trajectory modes are available:

Mode 1: Lissajous graphic trajectory with an envelope of 24×24mm

Mode 2: Lissajous graphic trajectory with an envelope of 60×60mm

Mode 3: Linear motion trajectory with a stroke of 100mm

2. Two counting methods: forward counting and reverse counting.

3. No-flip guide plate design; samples do not need to be moved.

4. PLC modular control, 7-inch color touch screen, and dual-selection menu operation (Chinese and English).

5. Brushless motor drive, smooth and noiseless operation.

6. Key components such as the grinding head and counterweight are made of high-quality 316 stainless steel.

7. Imported needle roller bearings reduce friction on the guide rod; each table is formed in one piece by a CNC grinder, ensuring that each station is on the same plane and guaranteeing consistent test results.

Technical Data

1	Number of Stations	9 units
2	Counting Range	0 to 999999 cycles
3	Maximum Stroke	Horizontal: 60.5±0.5mm; Longitudinal: 24±0.5mm
4	Mass of Pressurized Objects	a. Clamp: 198±2g b. Fabric Sample Weight Hammer: 395±2g c. Furniture Decoration Sample Weight Hammer: 594±2g d. Type B Clamp: 155±1g e. Stainless Steel Butterfly Disc: 260±1g
5	Effective Friction Diameter of Grinding Block	Type A 198g (1.96N) Friction Head: Φ28.65 ±0.05mm Type B 155g (1.52N) Friction Head: Φ90 ±0.10mm
6	Relative Movement Speed Between Clamp and Grinding Table	50±2r/min (Adjustable within 30-70r/min)
7	Mass of Sample Loading Press Hammer	2385±10g
8	Overall Dimensions	850×650×350mm
9	Power Supply	AC220V 50Hz 500W
10	Net Weight	150kg

Test Modes

Mode 1: A circular fabric sample is rubbed against a standard abrasive material under a given pressure, following a Lissajous curve trajectory. After reaching a specified number of revolutions, the pilling level of the sample is evaluated. This principle corresponds to the standard test for fabric pilling. (24*24mm)

Mode 2: A circular fabric sample is rubbed against a standard abrasive material under a certain pressure, following a Lissajous curve trajectory, until the sample breaks. The number of abrasion cycles at which the sample breaks represents the fabric's abrasion resistance. This principle corresponds to the standard test for fabric abrasion resistance. (60*60mm)

Mode 3: A circular fabric sample is rubbed against a standard abrasive material under a certain pressure, following a straight-line trajectory, until the sample breaks. The number of abrasion cycles at which the sample breaks represents the fabric's abrasion resistance. This principle corresponds to the standard test for fabric abrasion resistance. (100mm)
