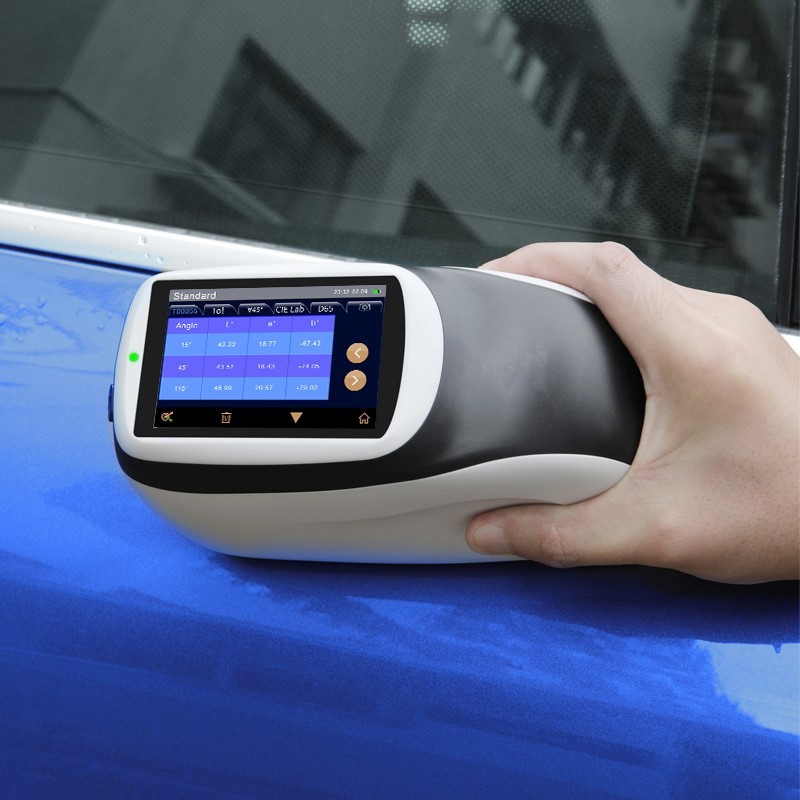

Multi Angle spectrophotometer for car paint

Multi-angle spectrophotometer ZHIYI-3000 is used to measure the color difference for the surface paint which is affected by different viewing angles and viewing conditions. It can provide accurate and consistent color measurement for metalllics, pearlescents and other complex special effect finished products.


ZHIYI-3000 multi-angle spectrophotometer adopts industrial-grade MCU and is equipped with 3 measuring angles, under the superior performance of the optical measurement system supported by ZHIYI-3000 multi-angle spectrophotometer has excellent performance in multi-angle chromatic aberration measurement, even in the curved surface, but also has a high measurement accuracy and stability.



Technical characteristics

1. Multi-angle measurement

Adopt 3 illumination sources, 1 receivers to measure 3 measurement angles at the same time


2. More intuitive display

Touch screen can display all Angle measurement results, more intuitive view of the comprehensive data.

3. 256 Image Element Double Array CMOS Image Sensor

The higher optical resolution ensures the measuring speed, accuracy, stability and consistency of the instrument. The core technology makes it as the same platform with international standards and complete compatibility.

4. Adopt Full spectrum LED light source with blue enhancement

The Full spectrum LED light source with blue enhancement ensures sufficient spectral distribution in the visible light range, avoids the spectral loss of LED in a specific band, and ensures the accuracy of instrument measurement results and low cost maintenance.

5. Concave grating spectrophotometric technology

Using concave grating spectrophotometric technology, with higher resolution, makes  color measurement more accurate.
