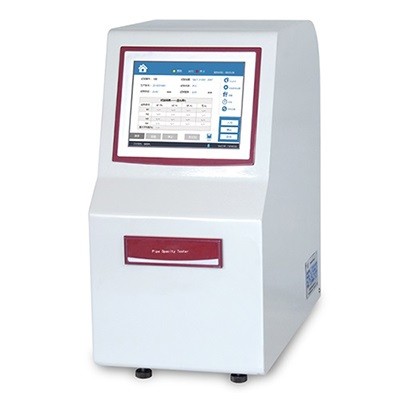

Pipe Opacity Tester

Pipe opacity tester is mainly used to determine the opacity of pipes and fittings. An ideal measuring device for pipe manufacturers, research and inspection institution. It consists of optical source, Luminous flux collection system, automatic sample going

in/out controlling system, sample automatic moving device, sample support, touch screen and micro-printer.

Pipe Opacity Tester Standard

ISO 7686,GB/T 21300-2007 and the equivalent.

Pipe Opacity Tester Features

1.Accuracy
High accurate parallel optical source ensures a stable result.
High accurate luminous flux collection device and 24 bit analog-digit convert ensure accurate measurement.

2.Test operation

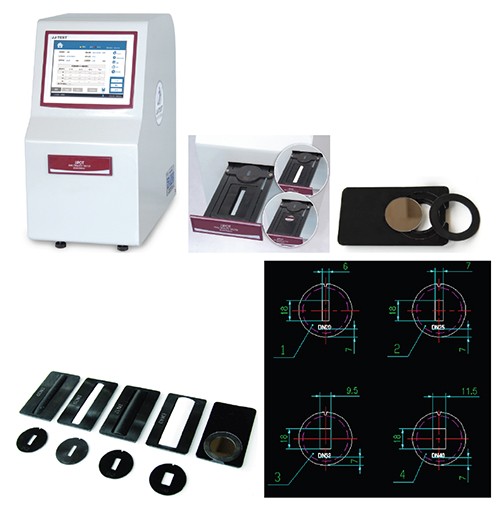

Different diameter of pipe has its matching specimen support and raster；
Specimen chamber going in/out automatically, easy to position and fetch specimen, to increase test efficiency;
Automatic calibration and three-point measurement can be done successfully;

3.Data proceeding
May save max. 1000 groups of test data automatically.
Fast test data search and filtration.
Print out the report through micro-printer.

4.Display
Large size full-color touch screen makes it easy to be operated and read the result directly.

Pipe Opacity Tester Technical Parameter
