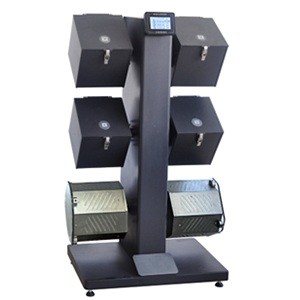

Rota Pill Pilling and Snagging

Product Item : ZHIYI-6C
Category： Textile Testing Equipment
Rota Pill Pilling and Snagging
Product description：Rota Pill Pilling and Snagging is used for testing the pilling performance of wool, knitted fabrics, and other easily pilling fabrics. Standards ISO12945.1, GB/T4802.3, GB/T11047.2-2022, JIS L1076,
INQUIRY

Product Introduction

This instrument is used for testing the pilling performance of wool, knitted fabrics, and other easily pilling fabrics.

Standards

ISO12945.1, GB/T4802.3, GB/T11047.2-2022, JIS L1076, BS5811, IWS TM152, GB/T30159.1-2013, BS 8479-2008, etc.

Product Features

1. Metal housing, sturdy and never deforms;

2. Imported high-quality rubber and cork pads, removable for easy and quick replacement;

3. Equipped with imported polyurethane sample tubes, durable and stable;

4. Large color touchscreen display with Chinese and English bilingual operating system;

5. Equipped with high-quality hooks, detachable for quick replacement;

6. Transparent observation window for easy observation of the interior;

7. Precision motor control drive, short response time, no overshoot, and uniform speed.

Technical Data

No.	Parameter Item	Specification
1	Number of pilling boxes	4 pcs
2	Inner chamber dimension (L×W×H)	235×235×235 mm
3	Chamber rolling speed	60±1 r/min
4	Sample tube size, weight & hardness	Φ31.5×140 mm, wall thickness 3.2 mm, weight 52.25 g, Shore hardness 37.5±2
5	Liner rubber cork	Thickness: 3.2±0.1 mm; Shore hardness: 82-85; Density: 917-930 kg/m³; Friction coefficient: 0.92-0.95
6	Number of stainless steel snagging boxes	2 pcs
7	Box dimensions	Depth: (228.0±0.1) mm; Parallel face: (224.5±0.3) mm
8	Needle tip height	(5.0±0.3) mm
9	Needle inclination angle	60°±0.5°
10	Needle diameter	(1.0±0.1) mm
11	Needle tip	Conical tip, taper per needle: 1.5±0.1 mm
12	Needle arrangement	20 needles per row, spacing 10.0±0.5 mm
13	Rolling cycles	1～999999 times (arbitrarily settable)
14	Polyurethane tube size	Length: (70±1) mm; Inner diameter: (25±1) mm; Wall thickness: (3±0.5) mm
15	Polyurethane tube hardness	Shore hardness 35
16	Wool felt dimensions	(70±0.5) mm × (110±0.5) mm
17	Power supply	AC220V, 50Hz, 800W
18	Overall dimension (L×W×H)	850×500×1280 mm
19	Net weight	130 kg

Packing List

No.	Item Description	Quantity
1	Main Unit	1 Set
2	Specimen Template (for Pilling Box)	1 Pc
3	Imported Polyurethane Sample Tubes (for Pilling Box)	16 Pcs
4	Lock Rings (for Snagging Box)	8 Pcs
5	Sample Tubes (for Snagging Box)	8 Pcs
6	Wool Felts (for Snagging Box)	8 Pcs
7	Sample Loader (YG511S-1)	1 Set
8	Product Qualification Certificate	1 Pc
9	Operation Manual	1 Copy
10	Delivery Note	1 Pc
11	Acceptance Form	1 Pc
