Rub Resistance Tester for Ink Abrasion / Rubbing Resistance Test

Product Item : ZHIYI-RT1
Category： Paint,Coating&Ink
Rub Resistance Tester
Rubbing Resistance Test
Ink Abrasion test
Product description：The (Solvent) Rub Resistance Tester adopts reciprocating wiping motion to test the solvent rub resistance of paints & inks, or paper rub resistance of coated surfaces. It realizes reciprocating wiping
INQUIRY

Product Introduction

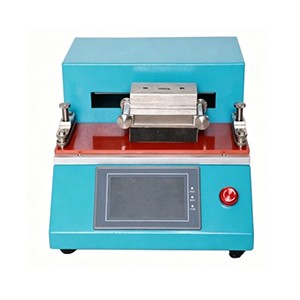

The (Solvent) Rub Resistance Tester adopts reciprocating wiping motion to test the solvent rub resistance of paints & inks, or paper rub resistance of coated surfaces. It realizes reciprocating wiping movement via a crank-slider mechanical structure.

ZHIYI-RT1 Rub Resistance Tester is designed to test paper friction resistance of cured sample surfaces in laboratory, complying with ASTM D5264 standard.

Technical Data

Model	ZHIYI-RT1 Rub Resistance Tester
One-way Wiping Stroke	110 mm
Wiping Speed	20~85 rpm
Reciprocating Cycle Setting Range (1 cycle = one back-and-forth wipe)	0~65535 cycles
Max Sample Size	50 × 250 mm
Wiping Head Contact Area	50 × 90 mm
Standard Wiping Head Weight	1000 g
Optional Additional Weights	250 g, 250 g, 500 g
Instrument Operating Power Supply	DC 24 V
Power Adapter Input (Accessory)	AC 100~240 V, 50/60 Hz
Overall Outer Dimensions	330 × 260 × 210 mm
