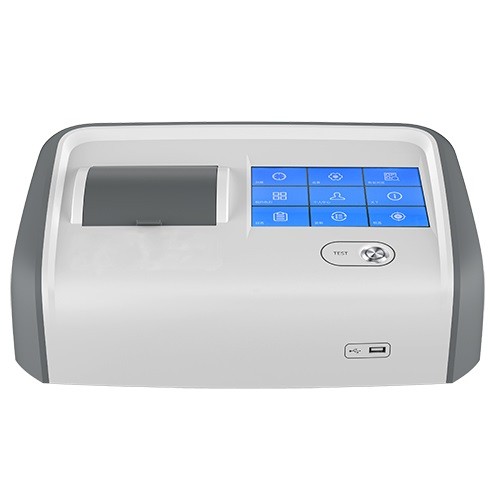

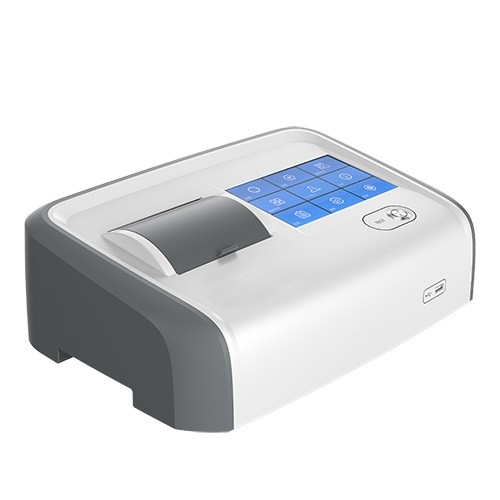

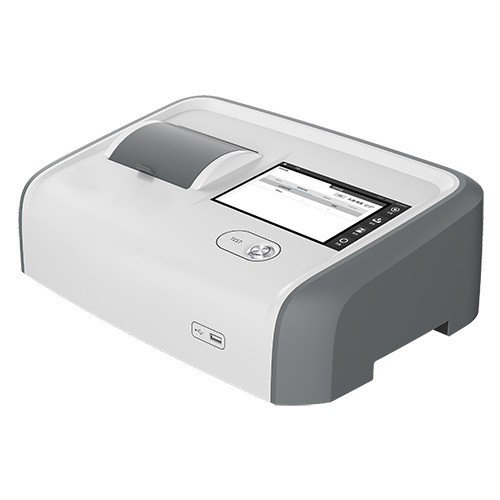

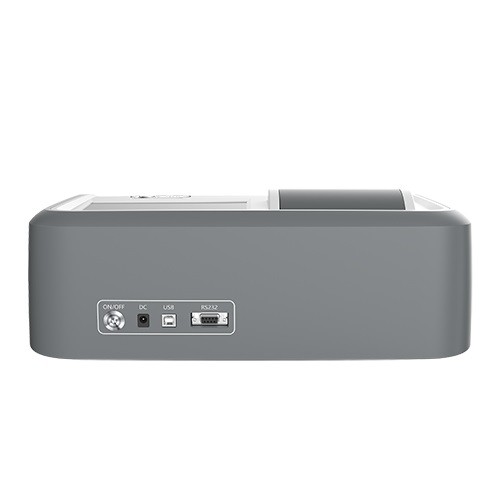

Spectrophotometric Colorimeter for Liquid

Product Item : ZHIYI-995
Category： Color and Gloss meter
Liquid Color Measurement
Spectrophotometric Colorimeters
liquid colorimeter
spectrophotometer for color measurement
Product description：The spectrophotometric colorimeter can measure more than 30 color indicators, including pt-co, Gardner, Saybolt, China, the United States, European Pharmacopoeia standards. The minimum liquid addition
INQUIRY

Spectrophotometric Colorimeter for Liquid Introduction

The Spectrophotometric Colorimeter is mainly designed to measure the color of transparent and translucent materials such as petroleum, edible oils, pharmaceuticals, brewing products, and honey,etc.

Spectrophotometric Colorimeter for Liquid Features

More than 30 color indicators, including pt-co, Gardner, Saybolt, China, the United States, European Pharmacopoeia standards

Intelligent zero calibration ensures accurate measurement of △E*ab≤0.01

The minimum liquid addition is reduced to 1ml, 10mm and 50mm cuvette are standard, and 33mm and 100mm cuvette are optional

Fast measurement, and a single measurement takes only 1.5 seconds

The thermostatic sample tank (up to 90 ° C) design ensures sample fluidity

The 7-inch touch screen make the instrument more user friendly and the instrument can store more than 100,000 pieces of data

Free QC software to generate and print test report

Spectrophotometric Colorimeter for Liquid Technical Data

Product model	ZHIYI-995
Geometry	d/0(diffused illumination，0 degree viewing）（conform to：CIE No.15、ISO 7724/1、ASTM E1164、DIN 5033 Teil7、JIS Z8722 Condition c、GB/T 3555、ASTM D156、GB/T 6540、ASTM D1500、ASTM D1209、ASTM D5386、ASTM D6045、ASTM D6166、ASTM D1502）
Stand-alone operation	Support
Integrating sphere	Φ40mm，Avian-D Fully diffuse surface coating
Lighting source	CLEDs(Full band balanced Led light source）
Inductor	Dual optical sensor array sensor
Wavelength range	360-780nm
Wavelength interval	10nm
Half-band width	5nm
Measuring range	0~200%
Resolution	0.0001
Observer Angle	2°/10°
Observation light source	A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V4
Display	Pharmacopoeia color number, transmission map/data, sample chromaticity value, color difference value/map, pass/fail result, color deviation, color simulation, historical data color simulation, manual input of standard sample, test report
Measuring time	≤1.5s
Measuring optical path	Standard: 10mm glass cuvette, 50mm glass cuvette (optional 33mm and 100mm glass cuvette)
Color space	CIE Lab,LCh,CIE Luv,XYZ,Yxy,Transmissivity, Hunter Lab Munsell，MI,CMYK
Color difference formula	ΔEab,ΔECH,ΔEuv,ΔEcmc(2:1),ΔEcmc(1:1),ΔE94,ΔE*02
Other indicators	Pharmacopoeia (Chinese Pharmacopoeia, European Pharmacopoeia, American Pharmacopoeia)，WI(ASTM E313-20，ASTM E313-73，CIE,ISO2470/R457，Hunter，Taube Berger Stensby)，YI(ASTM D1925，ASTM E313-20，ASTM E313-73)，Tint(ASTM E313-20)，Allochromic index Milm，APHA，Hazen, Pt-Co（Platinum-cobalt index）(ASTM D1209, ISO 6271) ，Gardner（Gardner index），Iron cobalt index，Saybolt（Seibert index），ASTM Color，EBC（Beer color），ICUMSA Color(Sugar chroma)
Repeatability*	Transmittance: standard deviation ≤0.08% Chroma value: ΔE*ab≤0.01 standard deviation, maximum ≤0.03
Inter instrument agreement	ΔE*ab ＜ 0.2
Heating function	Yes
Heating temperature range	From ambient temperature to 90℃
Audit trail	Yes (as required by FDA and CFDA)
Special function	Intelligent zero calibration
Screen size	7 inch touch screen
Store data	Over 100,000 pieces of data
