Tape Adhesive Test Roller

Product Item : ZYAT-600
Category： Film Mechanical Performance

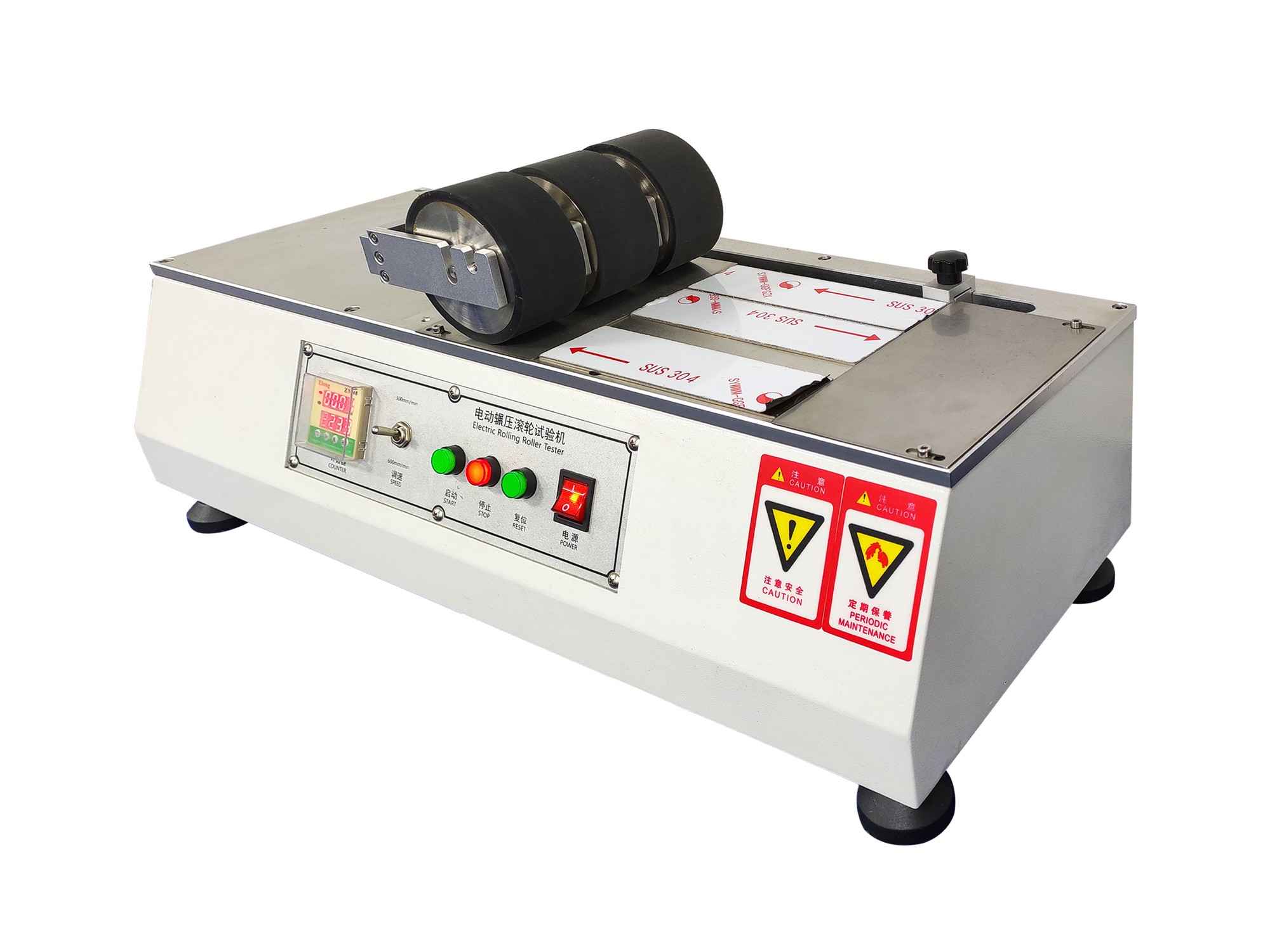

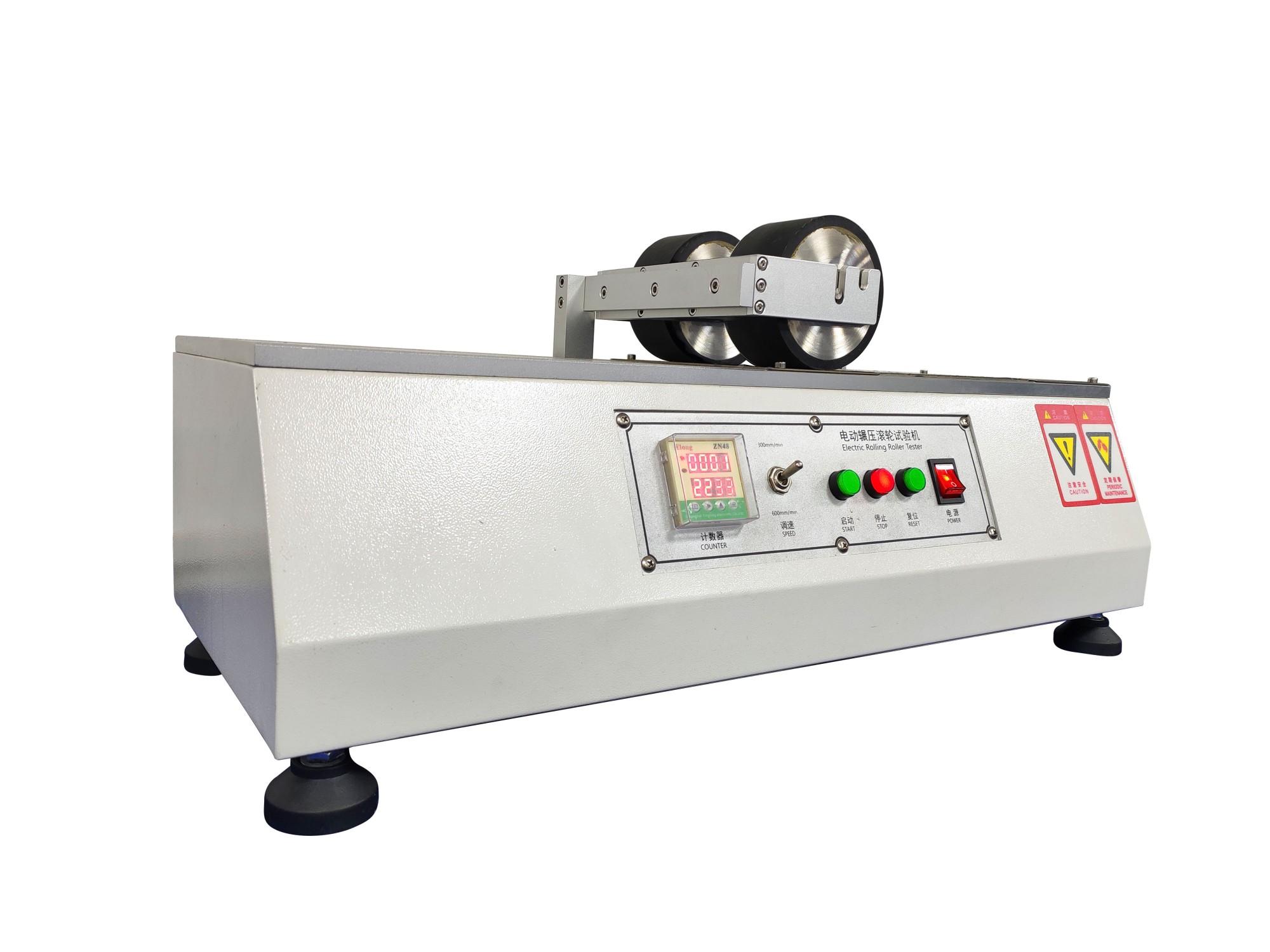

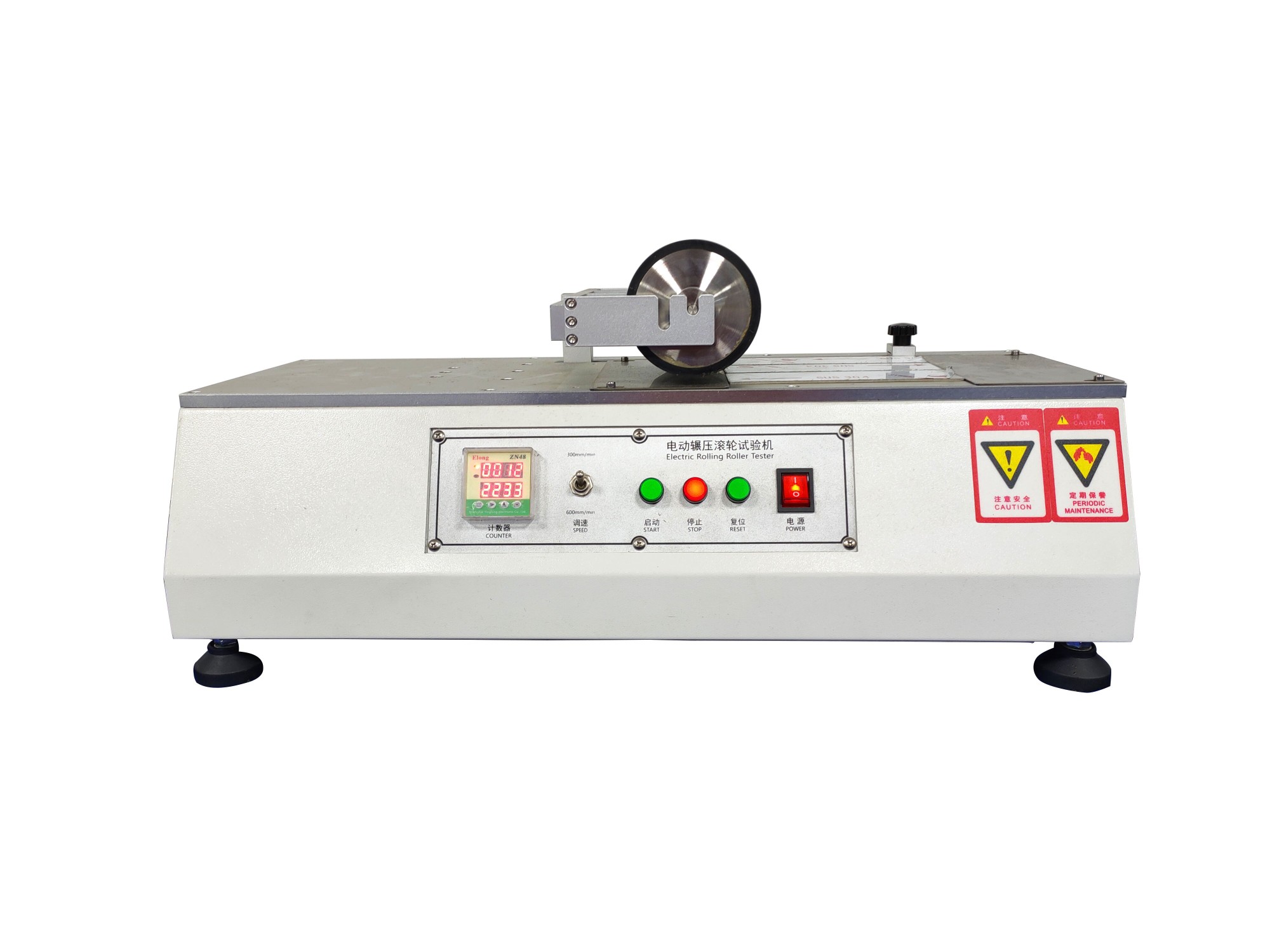

Tape Adhesive Test Roller
Tape adhensive test
Product description：Tape adhesive test roller sticks the adhesive tape to the standard steel plate with a constant pressure and speed to prepare the sample for peeling test and retention test.
INQUIRY

Product Introduction

Tape adhesive test roller sticks the adhesive tape to the standard steel plate with a constant pressure and speed to prepare the sample for peeling test and retention test.

Test Standards

CNS-11888, PSTC-8

Technical Data

Model	ZYAT-600
Roller load	2kg
Roller sizer	84mm×45mm
Rubber Hardness	Hs80±5
Rolling speed	300mm/min
Roller number	2 sets
Dimension (L×W×H)	510×310×230 mm
Weight	24kg
Power	AC220V,50/60Hz, 2A
