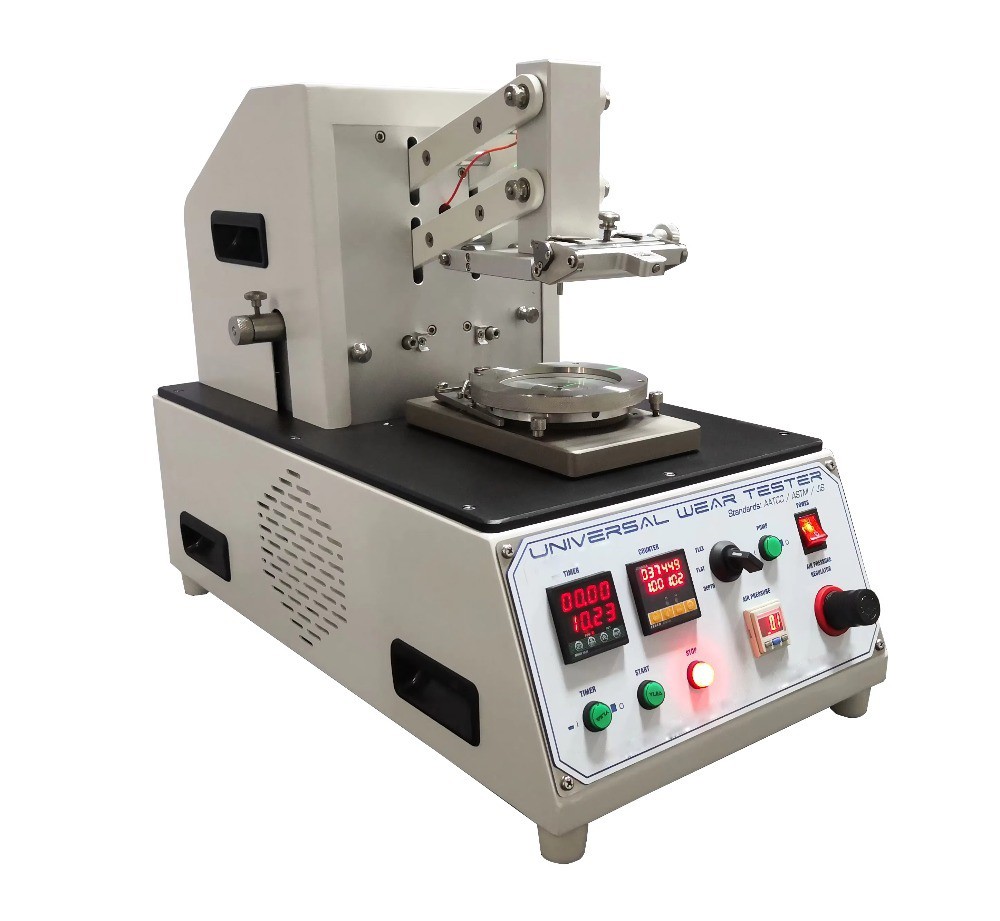

Textile Abrasion Resistance Tester

Product Item : ZHIYI-56
Category： Textile Testing Equipment
Textile Abrasion Resistance Tester
Abrasion Resistance Tester
Abrasion Resistance machine
Product description：Universal abrasion resistance tester is used to determine the abrasion resistance of fabrics used in clothing, footwear and other industries. Surface wear heads (pneumatic diaphragm method and flex we
INQUIRY

Product Introduction

Universal abrasion resistance tester is used to determine the abrasion resistance of fabrics used in clothing, footwear and other industries. Surface wear heads (pneumatic diaphragm method and flex wear heads are available as well as the necessary weight and initial supply of abrasives. Equipped with a built-in timer and mechanical cycle counter.

Technical Data

Speed	120 rpm
Tension weight	0.5 lbs (2 pcs), 1 lb (2 pcs), 2 lbs (1 pc)
Head weight:	0.5Lb(2pcs),1Lb(2pcs),2Lb(1pc)
counter	0 ~ 999 999 (can be set)
Timer	0 ~ 9 999min (settable)
Vote for Stoke	25.4 mm (1 inch)
Size:	340x660x470 mm
weight	80 kg
Power supply	110V/220V，50Hz/60Hz
