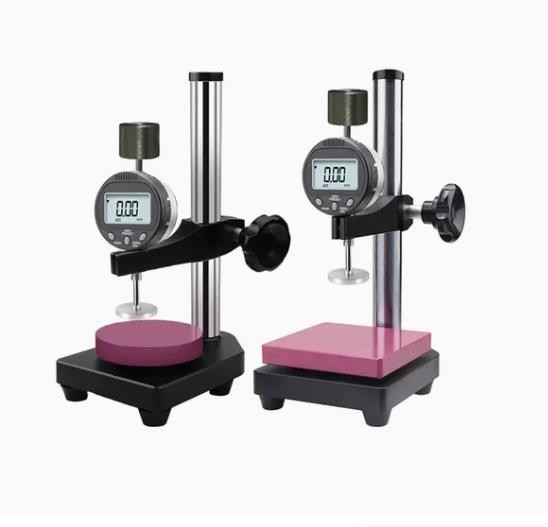

Textile Thickness Meter

An affordable and accurate thickness gauge for soft materials with a gauging balance that applies minimal load to the specimen through a 1.129-inch (28.7mm) diameter presser foot. Thickness gauges have ranges up to 1/2 inch (13mm) or 1 inch (25mm) with a resolution of 0.001 inch (0.01mm). Comes with 1 load weight to provide 0.6psi (4.14KPA). Other configurations are also available on request.
Standard: ASTM D1777

ZHIYI-B12A digital fabric thickness gauge, thickness test range is 0.01-12.5mm.
ZHIYI-B12B digital fabric thickness gauge, thickness test range is 0.01-25mm.
