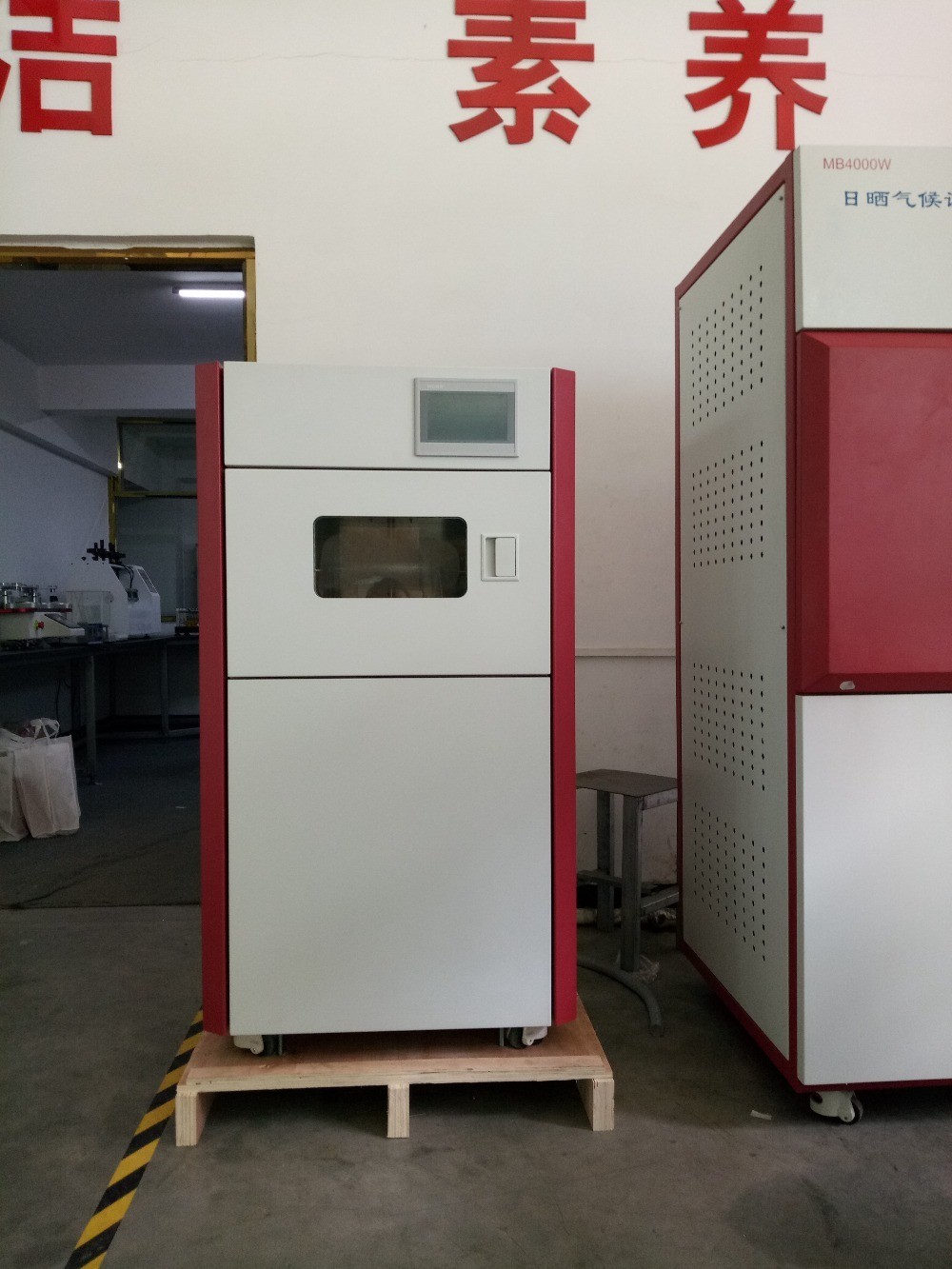

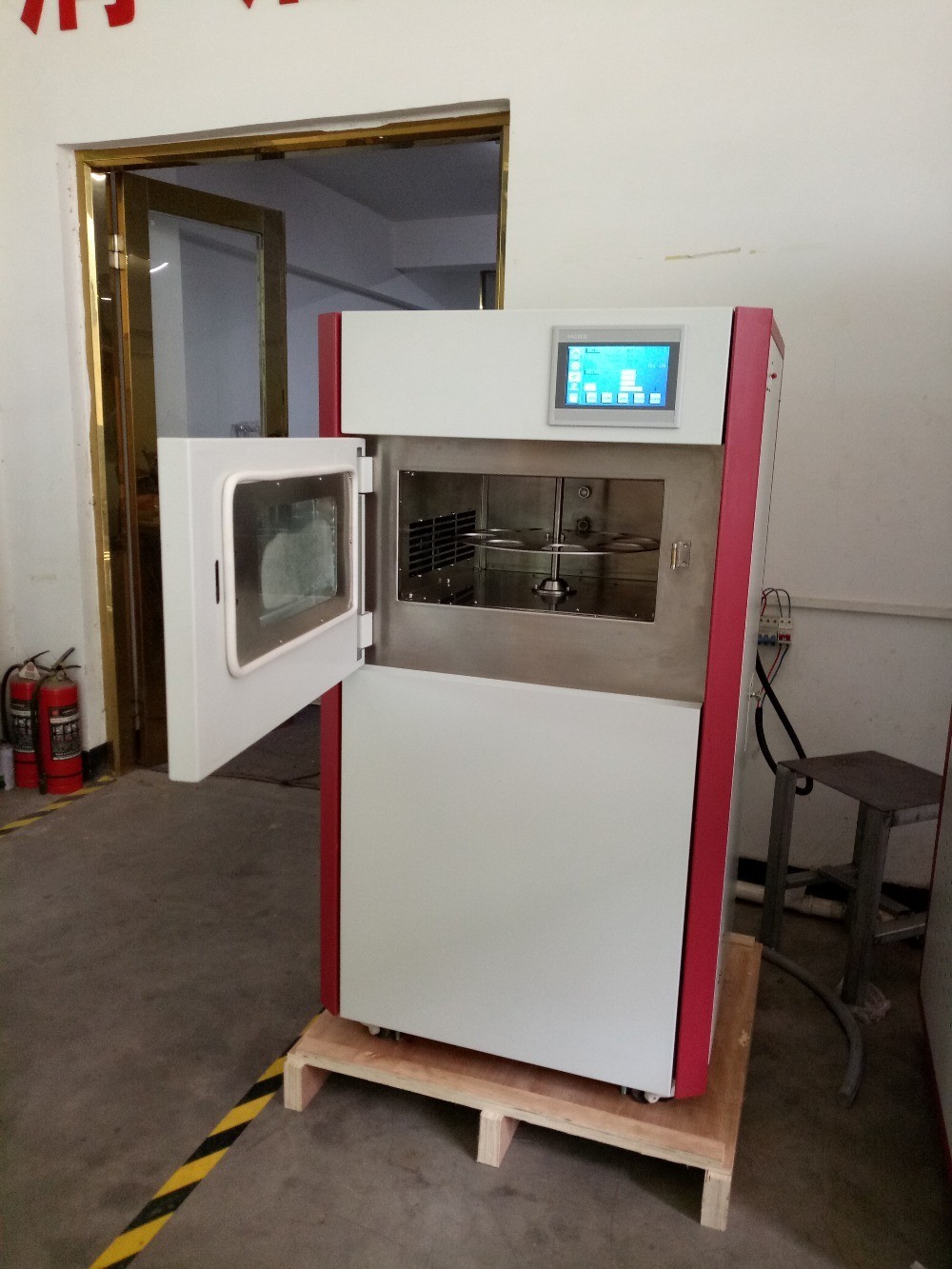

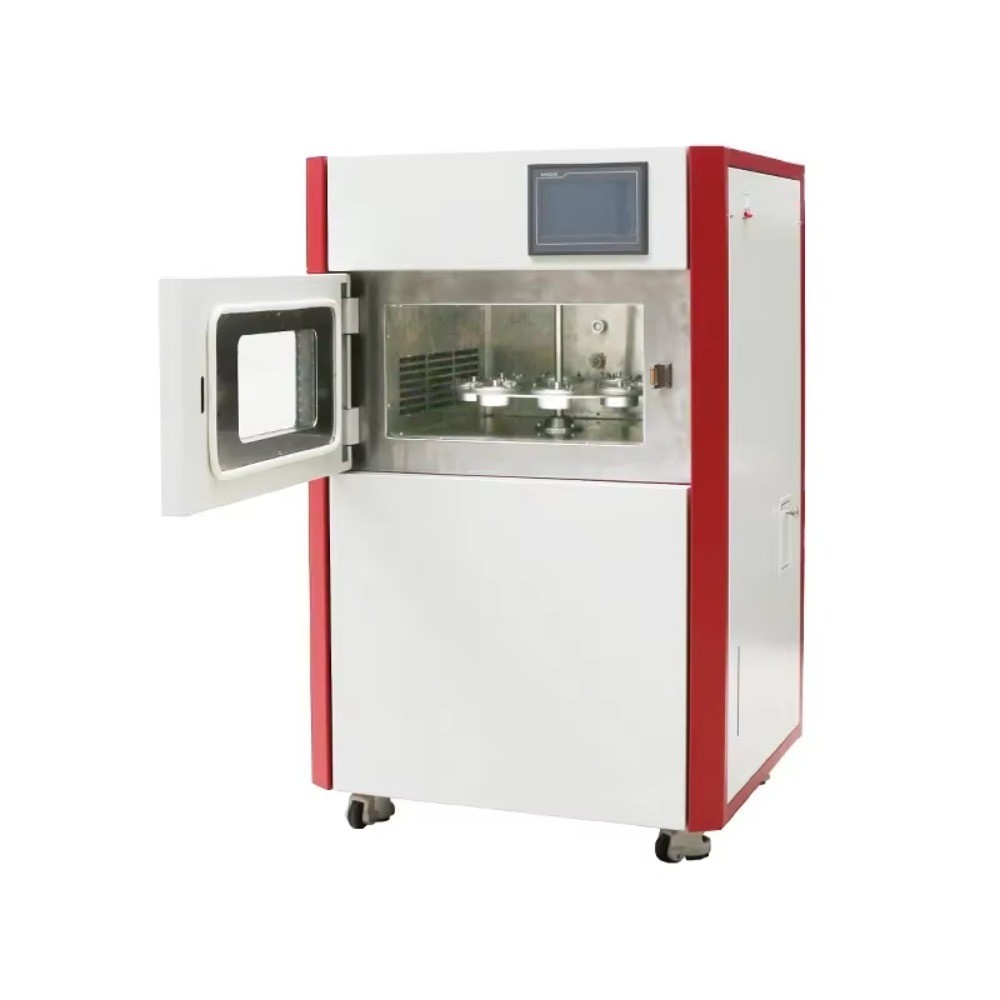

Water Vapor Permeability Tester

Product Item : PT-2000
Category： Textile Testing Equipment
Water Vapour Permeability Tester
Water Vapour Permeability Tester price
Measure Water Vapor Transmission
Product description：It is used to test the moisture permeability of all products. Types of fabrics, including breathable coated fabrics and non-woven fabrics.
INQUIRY

Product Introduction

It is used to test the moisture permeability of all products. Types of fabrics, including breathable coated fabrics and nonwoven fabrics.

Standards

GB/T12704, ASTM E96, JIS L1099, BS 7209

Features

1. Integrated structure of oven and constant temperature and humidity box

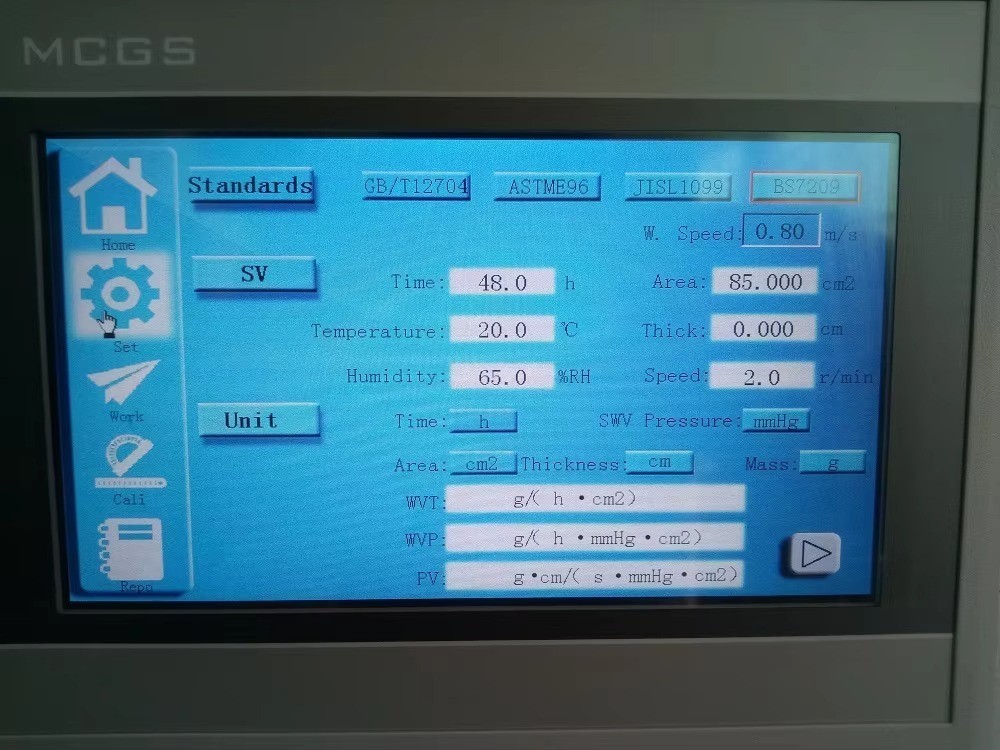

2. Computer control, LCD Chinese menu operation
3. Flow circulation wind speed 0.02-1.5 m/s, digital set
4. Imported high-precision temperature and humidity sensor, imported motor driver, ceramic tube heating

Technical Data

Working mode	Computer control, LCD Chinese menu operation, test Environmental monitoring
Test box temperature. Control range	20 ~45 ℃; Distinguishability 0.1 °C
Test box temperature. Control precision	± 0.5 ℃
Humidity control of the test chamber	40% Relative Humidity ~95% Relative Humidity 2% Relative Humidity
Test chamber humidification	≥ 300 ml/h
Drying oven temperature. Control range	Internal temperature. ~199 ℃
Test time	1 minute ~999h59min
Circulating air velocity	0.02 ~1.5 m/s
Penetration area	2827 sqm (60 mm GB) Optional 3848 sqm (70mmASTM)

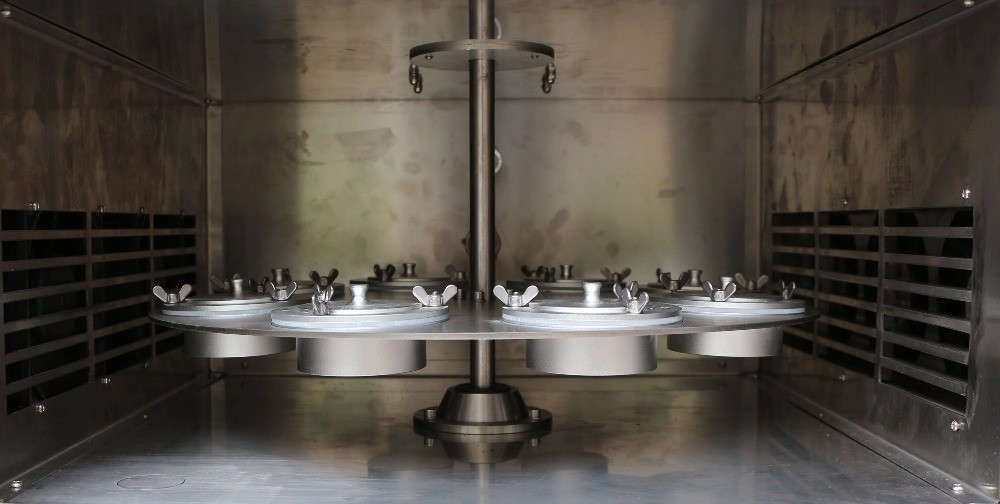

Number of moisture-permeable cups	6 pieces
Drying Oven Dimensions	490400215 mm
power supply	AC220V 50Hz 4kW
Exterior dimensions	7205601570 mm
weight	100 kg
