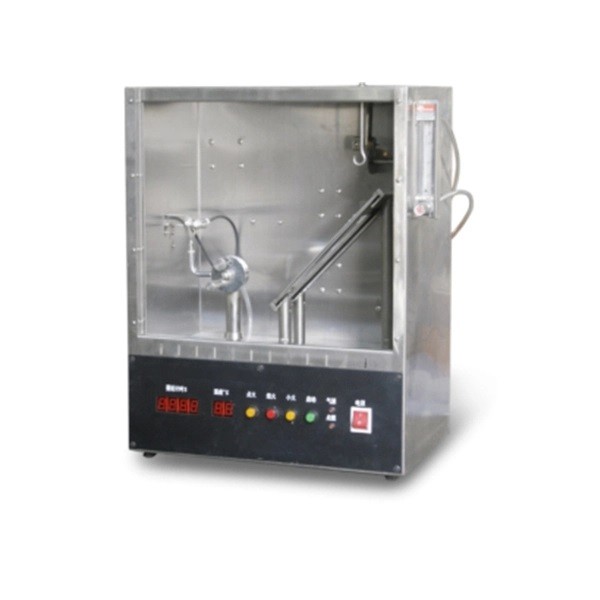

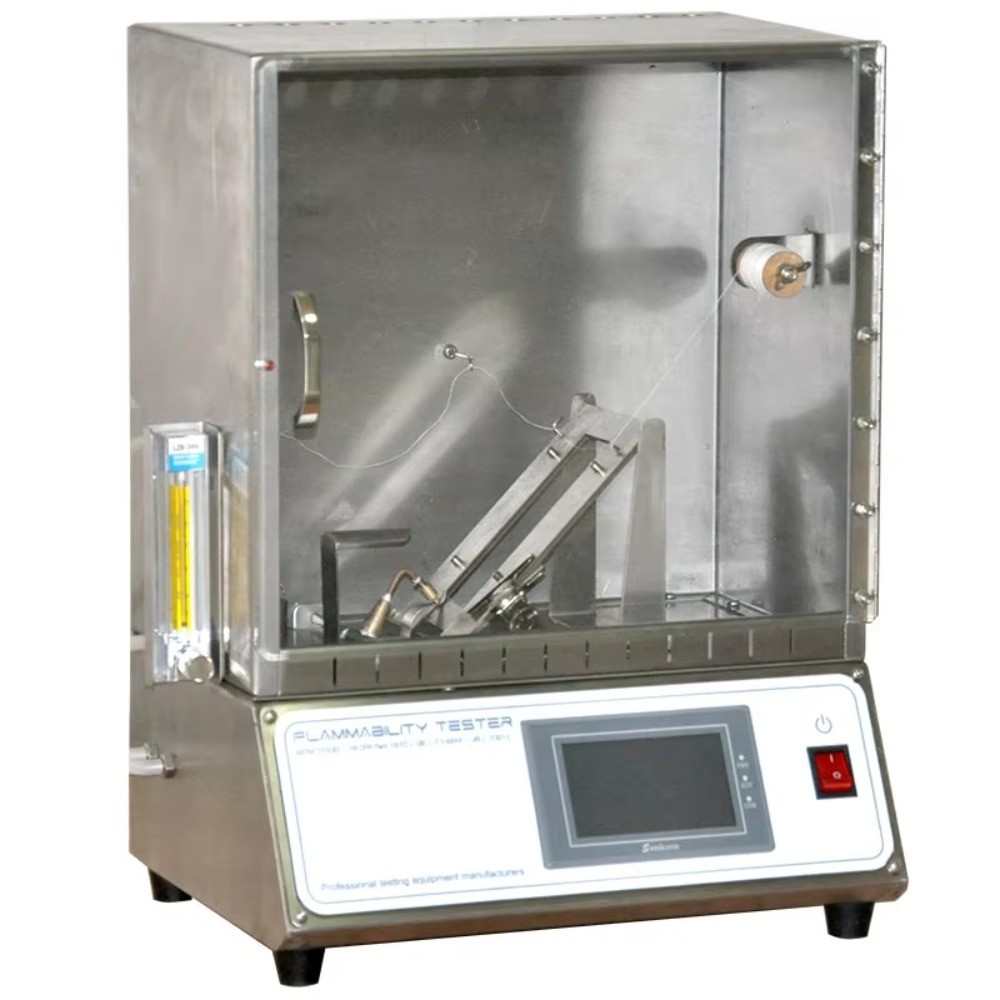

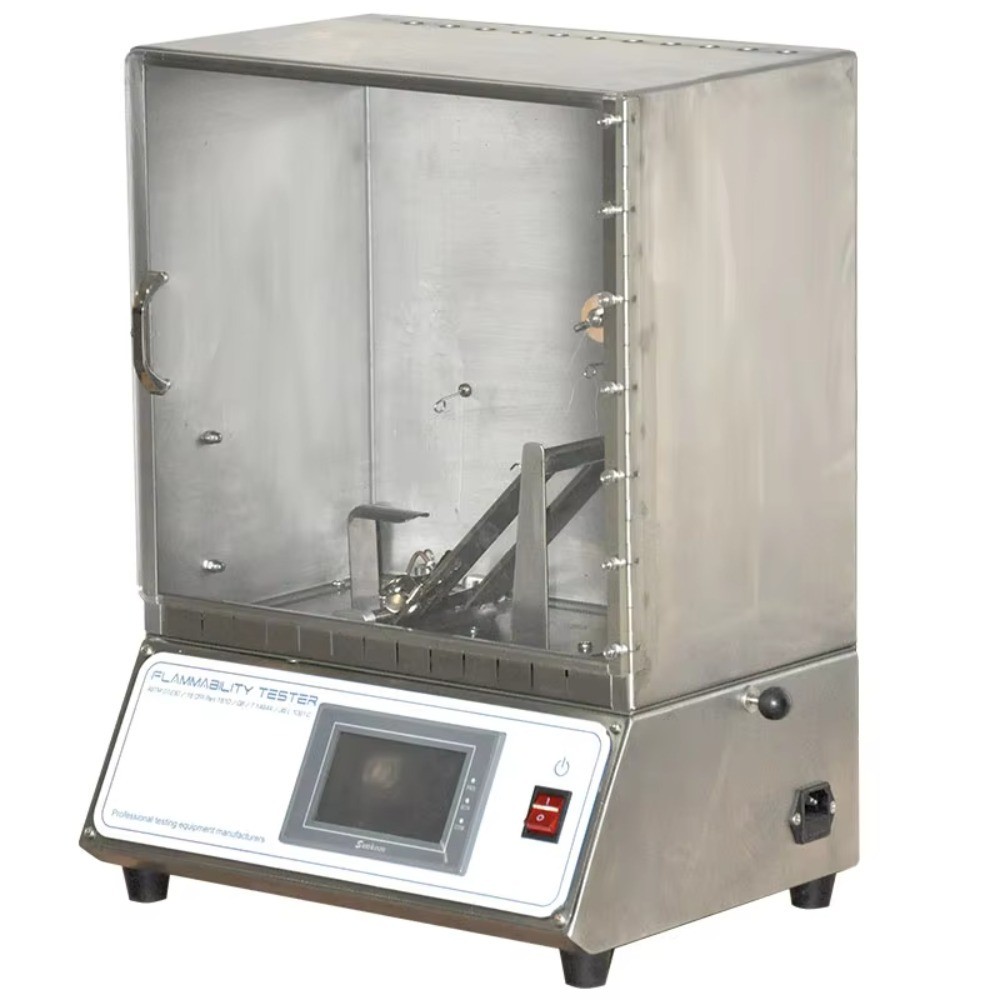

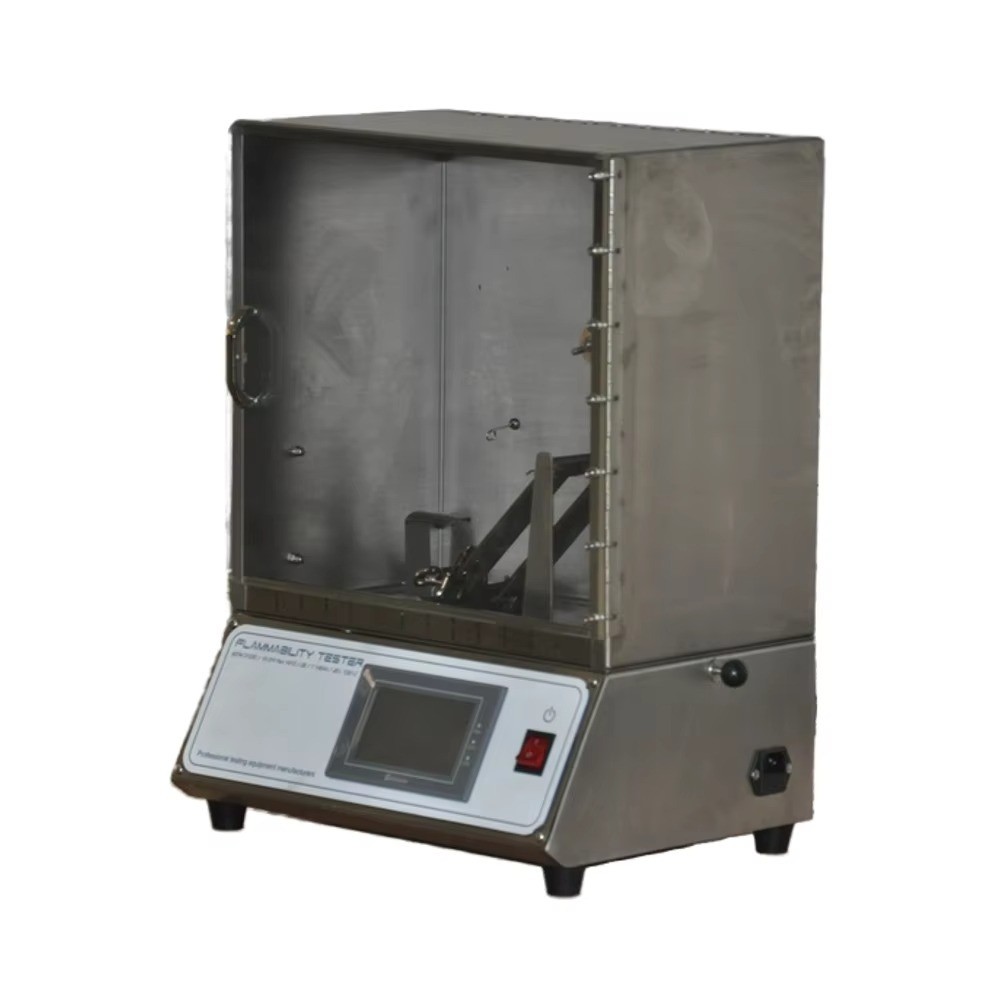

45 Degree Automatic Flammability Tester

45 Degree Automatic Flammability Tester Application

The 45 degree flammability tester is used to measure the damaged area and length of textiles, as well as the flame contact time when the textile is heated and fused to a specified length under 45 ° conditions. PLC control, large color touch screen operation, box and fixture material are made of stainless steel.

45 Degree Automatic Flammability Tester Testing standard

GB/T 14644 Textiles - Determination of burning rate in 45° direction

16CFR 1610 American clothing fabric flame retardant standard

ASTM D1230 for textile flammability testing

FTMS 191-5908, ASTM F2100

45 Degree Automatic Flammability Tester Features

1. Stainless steel making, and the experiment cabin door is made of high temperature resistant and explosion-proof glass to ensure the safety of the test;

2. Microcomputer program control of the gas supply system, with two gas source connection methods, which can be connected to household gas;

3. Adopt imported gas source main valve, thermal sensor, spark generator, stable and accurate test;

4. The ignition device is automatically ignited, the flame size and height can be adjusted according to needs;

45 Degree Automatic Flammability Tester Technical Data
