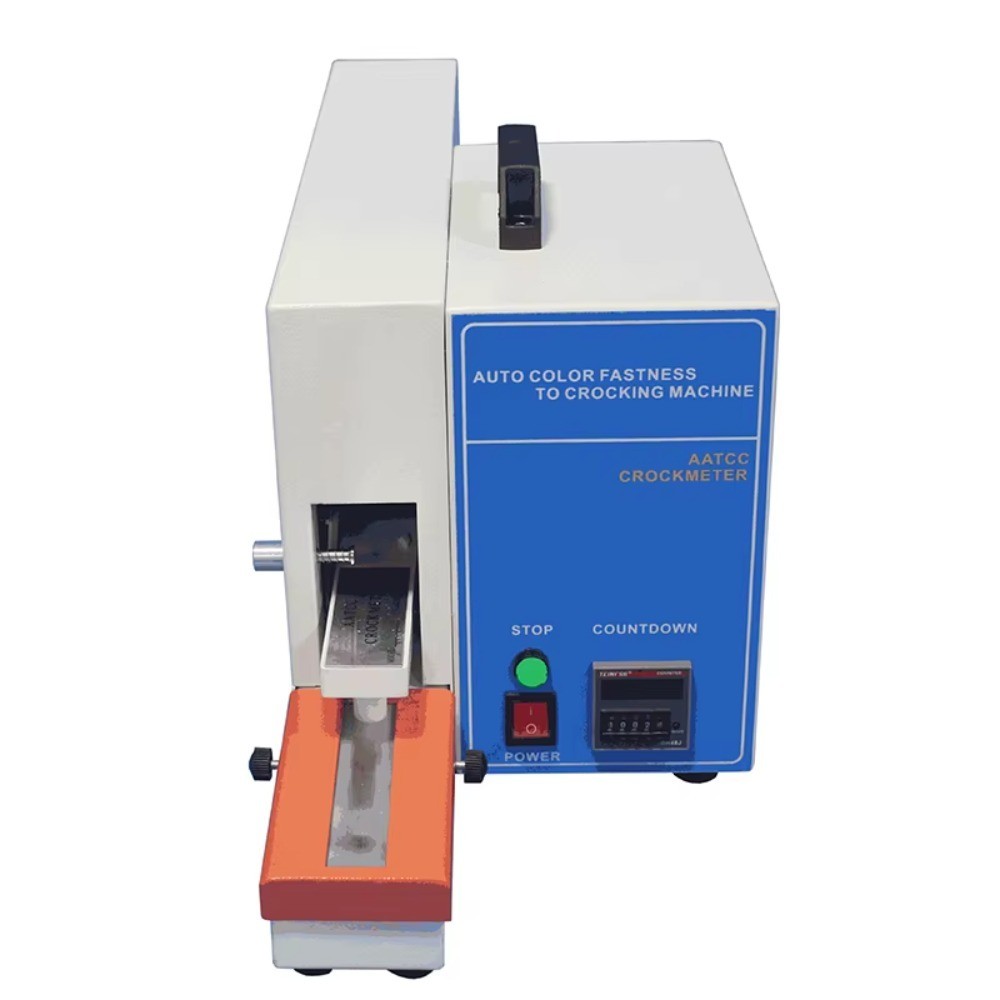

AATCC Crockmeter

Product Item : CFT-210
Category： Textile Testing Equipment
Crockmeter
AATCC Crockmeter
Product description：The crockmeter is designed for testing the degree of dyeing of fabrics after dyeing and rubbing. Other materials measure fabric dry/wet friction fastness. The instrument is an integral design and is m
INQUIRY

Product Introduction

The crockmeter is designed for testing the degree of dyeing of fabrics after dyeing and rubbing. Other materials measure fabric dry/wet friction fastness. The instrument is an integral design and is mainly composed of a base, a friction transmission mechanism and a counter. Secure the sample and sandpaper to one side of the base with the sample clip, shake the handle, and use the friction head of a white cotton cloth to specify on the sample. After ten frictions, the viscosity degree of the white cotton cloth and the gray card is observed and compared, and the stability of the dyeing or surface coating of the fabric sample is judged. Evaluation and selection provide reference data. The instrument is suitable for all fabrics on or in textiles, such as yarns, yarn dyeing, printing and dyeing, and toy products.

Standards

AATCC 8/165，BS 1006 D02，JIS K6328，L0815，L1084，ISO 105 × 12 / D02，M & S C8，BS 4655

Technical Data

Model	CFT-210
Friction head size	16th round mm
Vertical pressure on the head	9N
stroke	100 mm
Friction speed	60 times/minute
Sample size	200 mm × 50 mm
Attachments	Standard clamping ring / Standard sandpaper
Optional	Imported standard friction cloth (1000 pieces/box)
