Cutting Resistance Tester

Product Item : ZHIYI-130
Category： Textile Testing Equipment

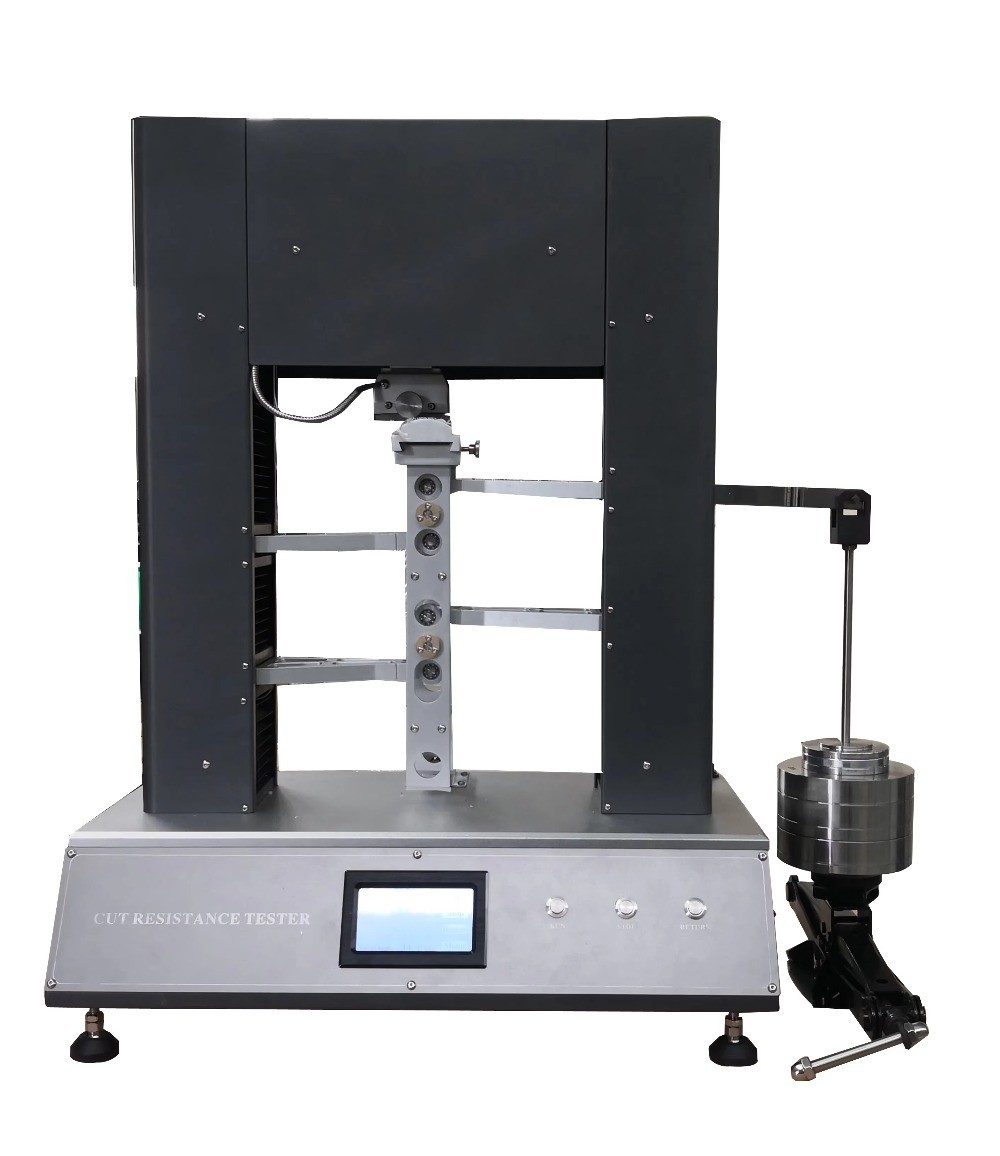

Cutting Resistance Tester
glove Cutting Resistance Tester
Product description：The cut resistance of a material is its ability to resist being cut by the blade. This is measured in a machine where a sharp blade is scratched across the sample. When a range of forces are applied t
INQUIRY

Product Introduction

The cut resistance of a material is its ability to resist being cut by the blade. This is measured in a machine where a sharp blade is scratched across the sample. When a range of forces are applied to the blade perpendicular to the sample surface, cutting is achieved in blade movement from 3 mm to 50 mm in length.

Technical Data

Force Range	1.0-200N
Blade Cutting Distance	0-50 mm
Blade	Thickness (1 ± 0,5) mm, bevel width (2.5 ± 0,2 mm), hardness > 45HRC
Blade Movement Speed	2.5 ± 0,5 mm/s
Load Weight	8 pieces of 20N, 3 pieces of 10N, 1 piece of 5N, 2 pieces of 2N, 1 piece of 1N, 1 piece of 0.5N
Size:	560 × 400 × 700 mm
Weight	40 kg
Power Supply	AC 220V, 50Hz
