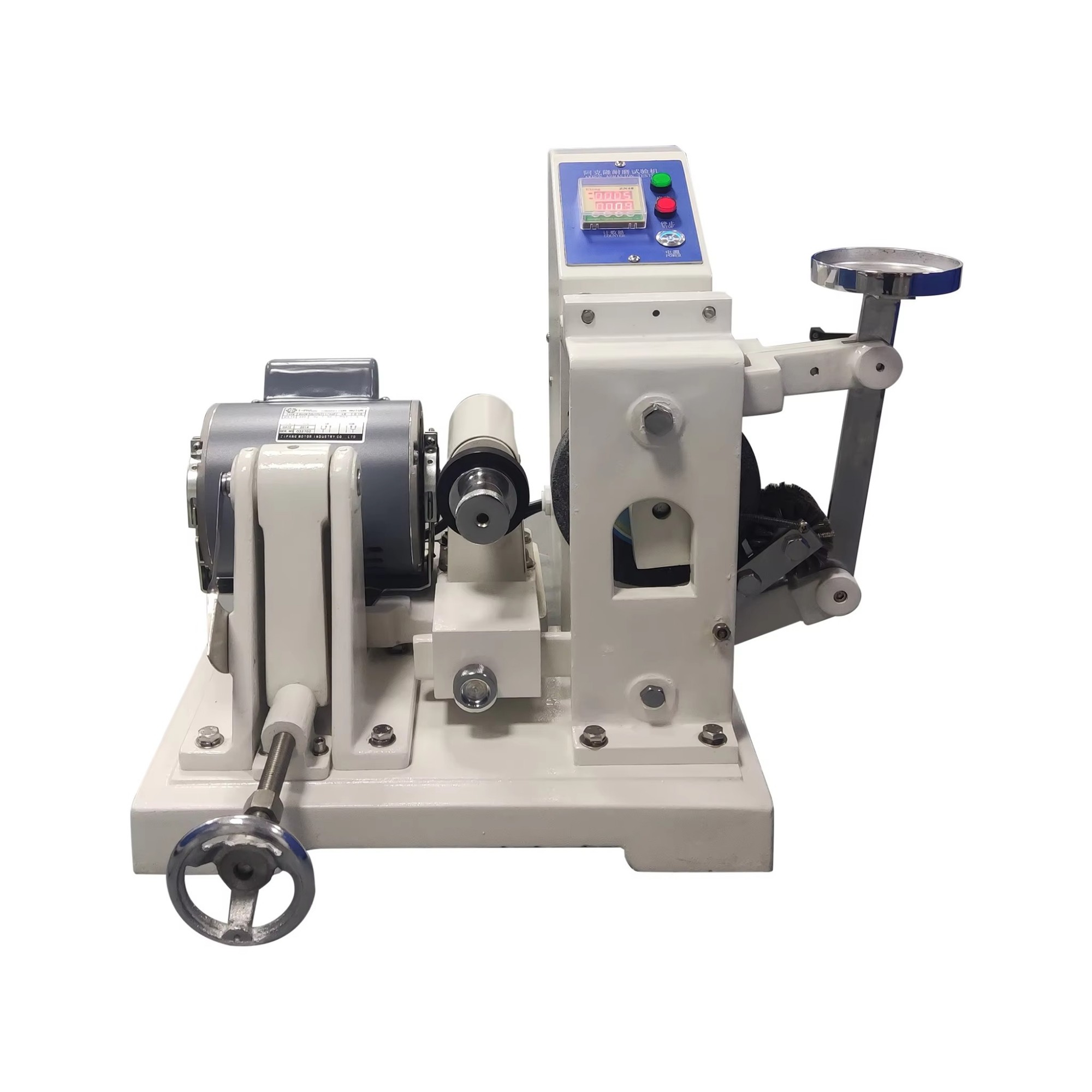

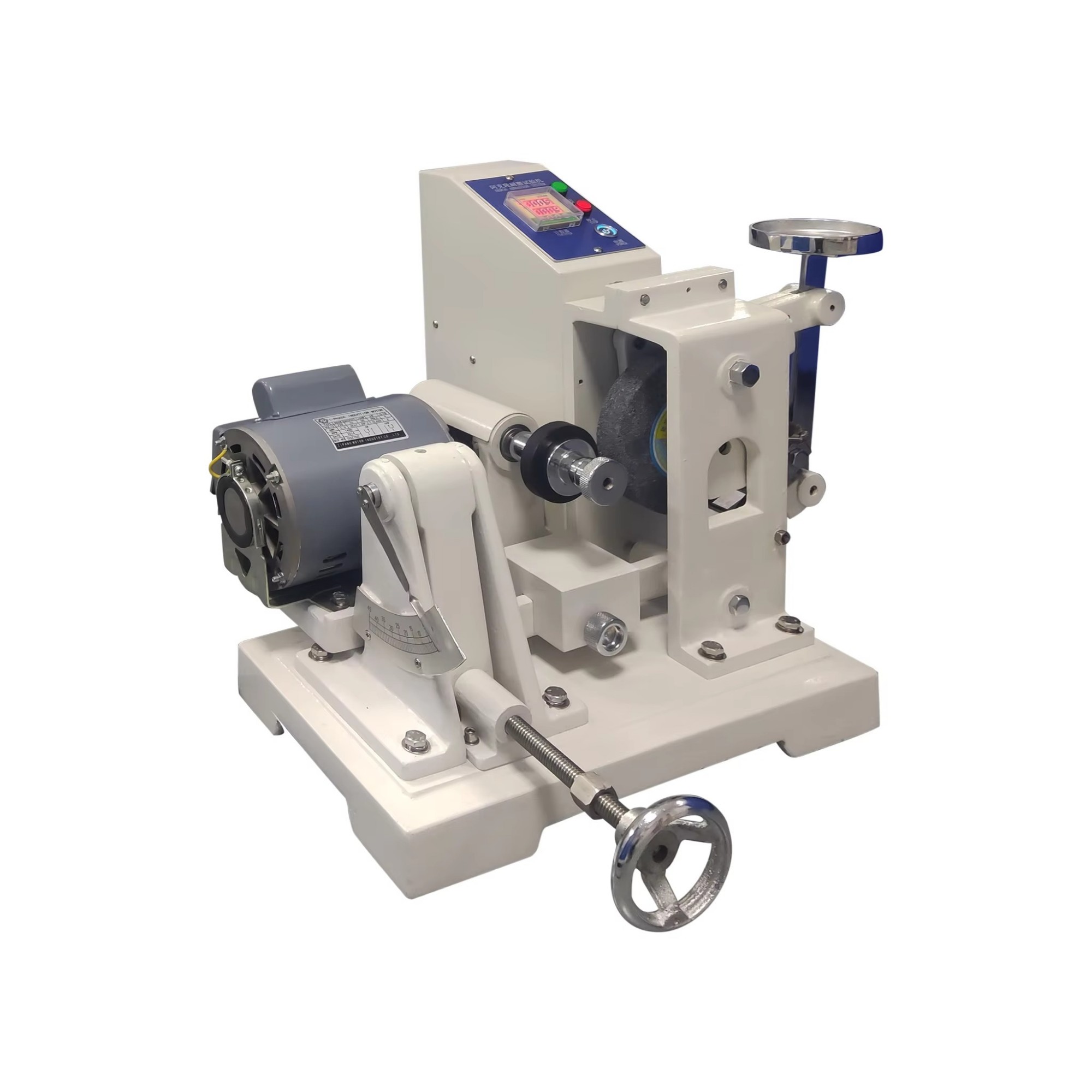

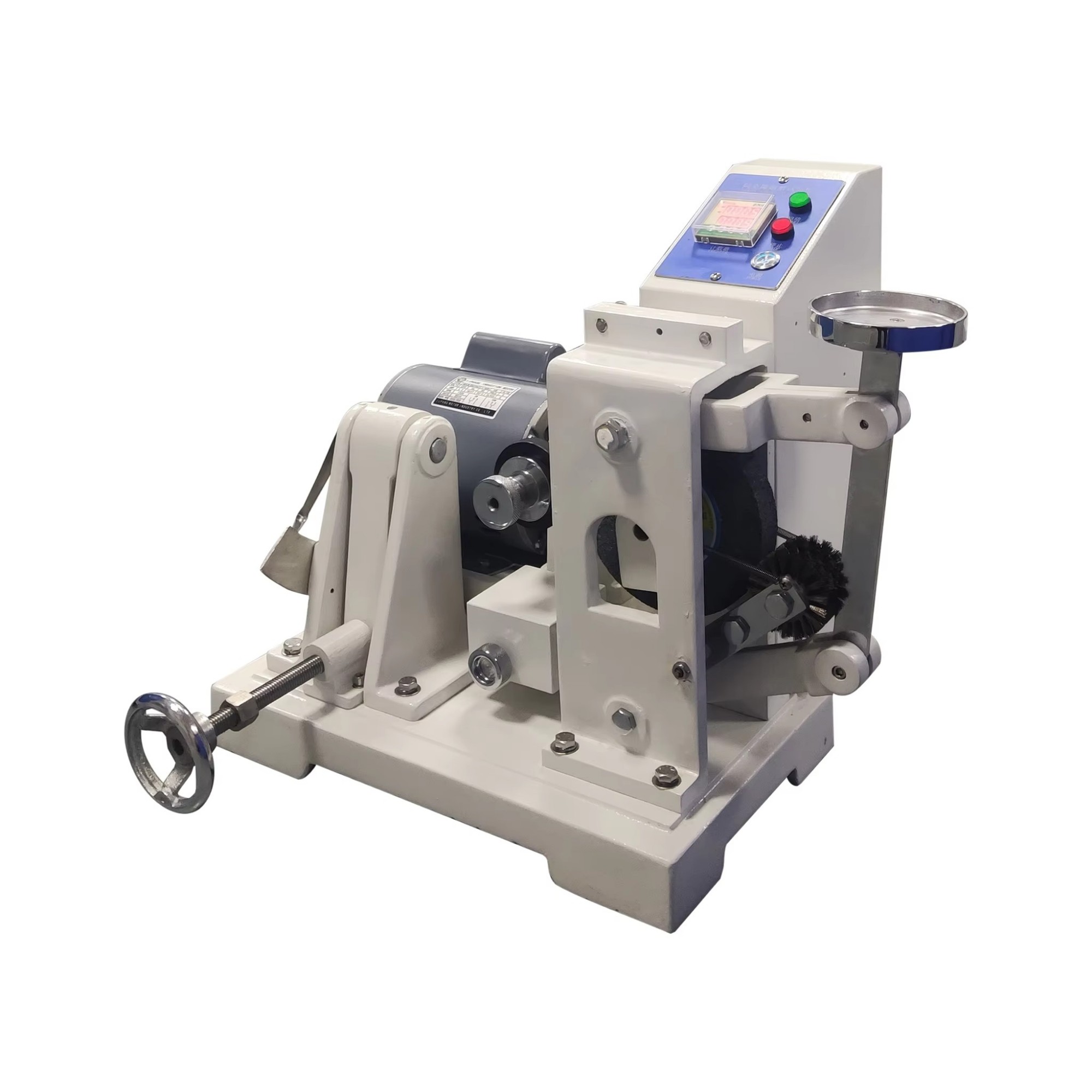

Akron Abrasion Tester

Product Item : ZYAT-500
Category： Other
Akron Abrasion Tester
Abrasion Tester
Rubber Abrasion Tester
Akron Abrader
Product description：The Akron rubber abrasion tester is used to test the wear ability of vulcanized rubber. It tests wear consumption over a certain test range by friction at a certain tilt angle and load. Automatic stop
INQUIRY

Product Introduction

The Akron rubber abrasion tester is used to test the wear ability of vulcanized rubber. It tests wear consumption over a certain test range by friction at a certain tilt angle and load. Automatic stop and integration of the main unit and controller with digital setting and display of friction time.

Standard

ISO:4661-1:1993，ISO 2481:1988，ISO 471:1983，ISO 1826:1981

GBT 1689; BS 903: Part 9; JIS K6264；.

Product Feature

1. High-quality steel is used to form the testing machine.

2. The number of revolutions can be preset and displayed explicitly on the display.

3. Once the preset number is reached, the Akron machine will stop automatically.

4. The tilt angle of the grinding wheel plane and the specimen plane is adjustable between 0-35°

5. Different sizes of rubber wheels are optional.

6. Two types of rubber shaft speed and load are available.

7. It meets different testing standards.

8.lt is easy for users to use and maintain.

Technical Data

Model	ZYAT-500
Tire stress	26.7 N (2.7 kgf)
Tire shaft rotation speed	76 ± 2rmin
Wheel axis speed	33-35 minutes
The angle between the two axes	0°~45°
impetus	AC220V ± 10%
size	600 × 480 × 400 (mm)
weight	60 kg
