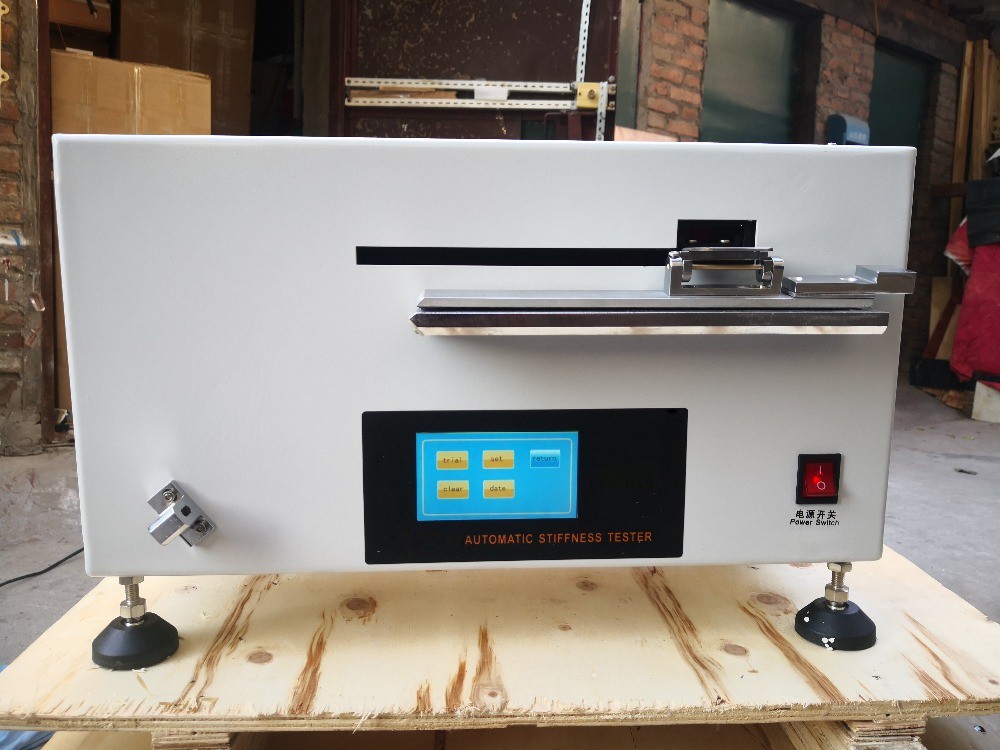

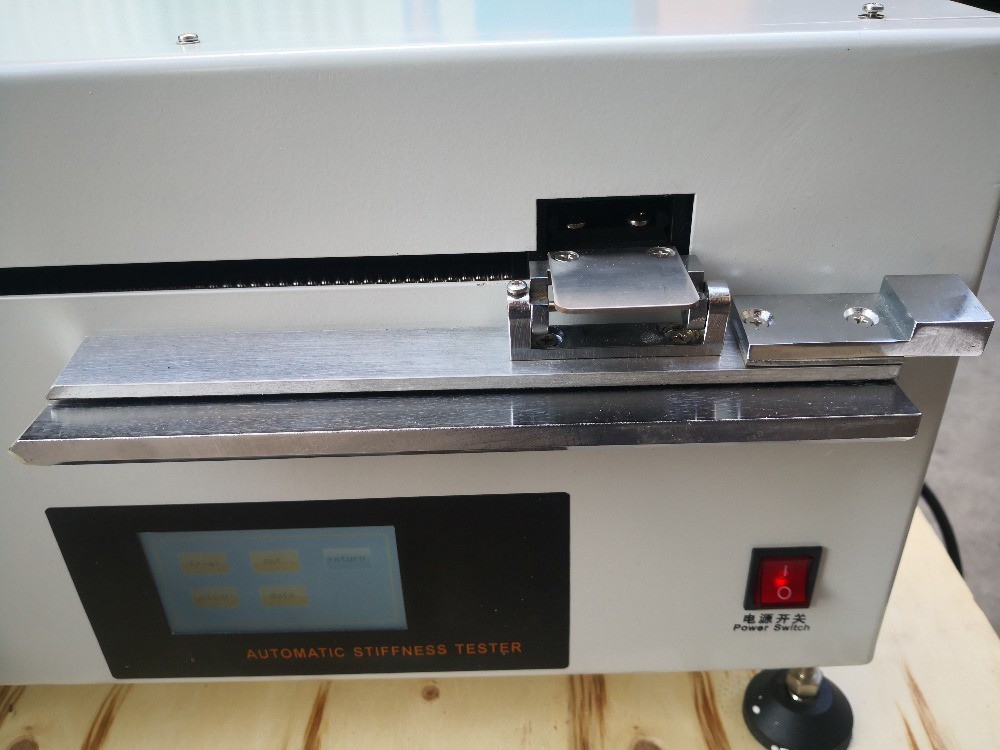

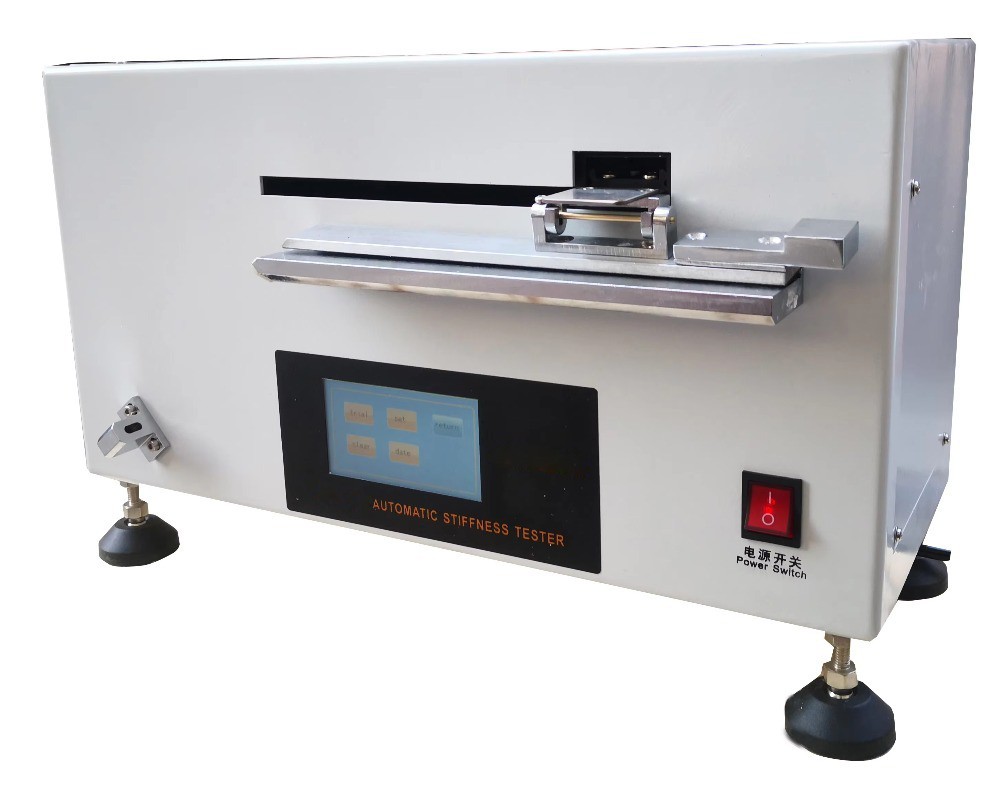

Automatic Stiffness Tester

Product Item : ZHIYI-68
Category： Textile Testing Equipment
Fabric Stiffness Tester
Stiffness Tester
Product description：The Automatic Fabric Stiffness Tester is used to test a wide range of woven and knitted products, non-wovens, and coated fabrics, including cotton, wool, silk, linen, and chemical fibers, as well as e
INQUIRY

Product Introduction

The Automatic Fabric Stiffness Tester is used to test a wide range of woven and knitted products, nonwovens, and coated fabrics, including cotton, wool, silk, linen, and chemical fibers, as well as elastic paper, leather, film, and other materials.

Standards

ASTM D1388, IS09073-7, British Standard EN22313

Technical Data

Main Parts	Microcomputer control, infrared stealth tilt detection, touch screen operation
Measure the angle	41. 5°, 43°, 45°
Extended E length	0.5-20.5 cm
Test Accuracy	0.01 cm
Specimen size	2.5 × 25 cm
Test speed	0.1-5 mm/s (adjustable).
Statistics F function	A: Average bending length (cm), average bending stiffness in mN.cm, CV %
Power supply	AC 110/220V 50/60Hz
I don't want to be a good person	470 × 230 × 310 mm
weight	18 kg
