Automatic Warp Reel Tester

Product Item : ZHIYI-086C
Category： Textile Testing Equipment
Warp Reel Tester

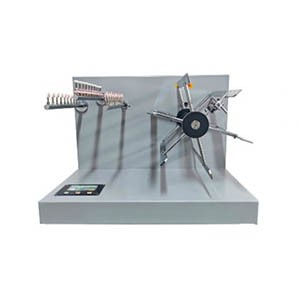

Automatic Warp Reel Tester
Product description：Automatic Warp Reel Tester ZHIYI-086C is designed for extracting a certain length of yarn for measuring its linear density and length. Standards GB/T4743, GB/T14343, GB/T6838,ISO2060, ASTM D1907,
INQUIRY

Product Introduction

It is designed for extracting a certain length of yarn for measuring its linear density and length.

Standards

GB/T4743, GB/T14343, GB/T6838,ISO2060, ASTM D1907, DIN53830.3.4 and other international standards

Technical Data

No.	Parameter Name	Parameter Value
1	Reel Circumference	1000mm±0.5mm
2	Number of Turns Setting Range	1～9999, LED Display
3	Reel Rotational Speed	30～300r/min, Stepless Speed Regulation
4	Tension Range	0～100cN
5	Yarn Guide Rod Stroke	35mm
6	Number of Test Bobbins	1～6
7	Overall Dimensions	780×660×480mm
8	Power Supply	AC220V
