Home Products Electronic Yarn Twist Tester

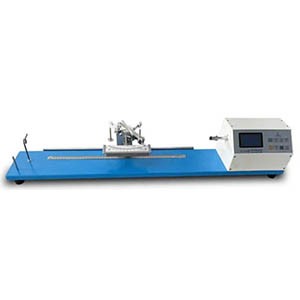

Electronic Yarn Twist Tester

Product Item : ZHIYI-155A
Category： Products
Yarn Twist Tester
Twist Tester
Twist Tester Machine
Electronic Yarn Twist Tester
Product description：Yarn Twist Tester is designed for determining the twist of yarns such as cotton, wool, silk, linen, and synthetic fibers, and can automatically print test data and statistical results. Test Methods:
INQUIRY

Product Introduction

It is designed for determining the twist of yarns such as cotton, wool, silk, linen, and synthetic fibers, and can automatically print test data and statistical results.

Test Methods: Direct counting method; single untwisting and retwisting method; double untwisting and retwisting method; triple untwisting and retwisting method

Standards

GB/T2543.1.2/14345 FZ/T10001 ISO2061 ASTM D1422/1423 JIS L1095,etc

Technical Data

No.	Parameter Name	Parameter Value
2	Test Length	25, 50, 100, 200, 250, 500 mm
3	Twist Measurement Range	1～9999.9
4	Rotational Speed	500～2000 r/min
5	Overall Dimensions	1070×204×200 mm
6	Power Supply	AC220V, 40W
