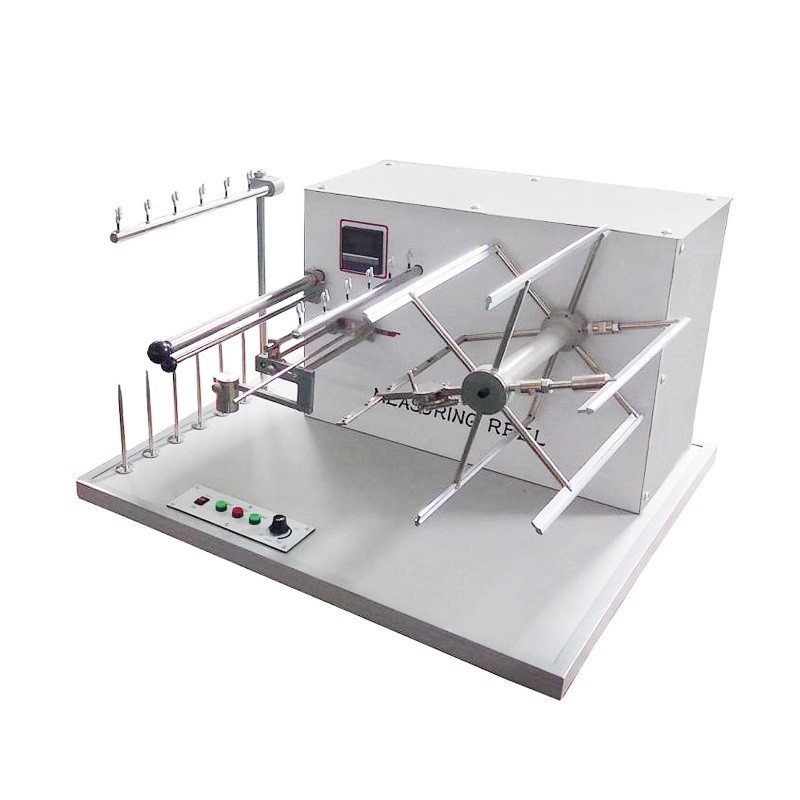

Automatic Wrap Reel For Textile

Automatic Wrap Reel For Textile Introduction

Automatic Wrap Reel ,also as a kind of textile testing equipment,is an ideal equipment to produce Skeins (lea/hank) of yarn for checking the yarn count and for lea strength testing. Supplied with 1 meter or 54 Inches Collapsible arm Swift/wheel (Specify)

Automatic Wrap Reel For Textile Usage

Automatic Wrap Reel For Textile To produce Skeins (lea/hank) of yarn for checking the yarn count and for lea strength testing.

Automatic Wrap Reel For Textile Testing Standards

ASTM D1907 Textile Testing Equipment Standard Test Method for Linear Density of Yarn (Yarn Number) by the Skein Method

ASTM D2260 Tables of Conversion Factors and Equivalent Yarn Numbers Measured in Various Numbering Systems

ISO 2060 Textiles -- Yarn from packages -- Determination of linear density (mass per unit length) by the skein method

BS 2010 Method for determination of the linear density of yarns from packages

DIN 53830 Testing of textiles; determination of linear density of single and plied yarns (reel method)

Automatic Wrap Reel For Textile Features

1. Wrap reels available in Metric and English system.

2. Digital control panel with resettable revolution counter.

3. Equipped with a yarn-tensioning device.

4. Speed from 20 up to 250 r.p.m.

5. Six Skeins (lea/hank) can be made together.

6. Complete with all accessories.

7. Supplied with inspection & calibration certificates.

Automatic Wrap Reel For Textile Technical Data:

Automatic Wrap Reel For Textile Accessories
