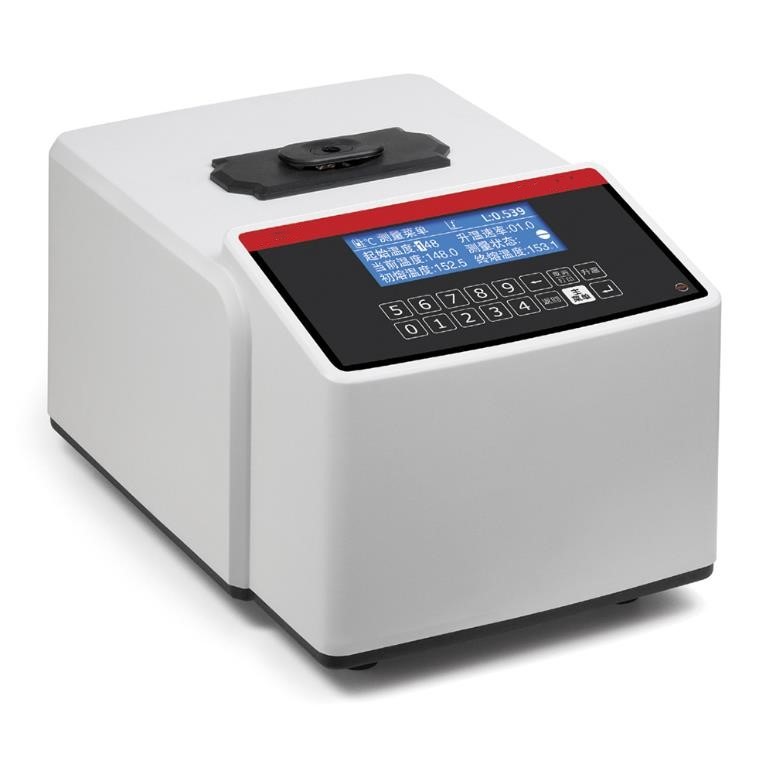

Micro Processor Melting Point Apparatus

Product Item : ZHIYI-805
Category： Other
Product description：Micro-Processor-Melting-Point-Apparatus
INQUIRY

Fully Auto Measurement/0.5 Grade

The melting point of a substance is the temperature at which the material changes from a solid to a liquid state. In organic chemistry, melting point determination is not only the basic approach to determine the nature of material, but also an important method to obtain the purity of a substance. Therefore, melting point apparatus is widely used in the chemical industry and the medical research, and it's a must-have instrument in the manufacturing of medicine, spices, dyes and other organic crystal substances.

MAIN CHARATERISTICS

~Quick, efficient and reliable melting point determination

~LCD display is intuitive

~Numeric keypad input simplify the operation

~Unique digital temperature control technology with high accuracy

~Wider ramp rate with stepless speed

~Capillary tubes method conforms to pharmacopoeia

~Up to 3 points temperature correction

MAIN SPECIFICATIONS
MODEL	ZHIYI-805
Test Method	Fully automatic
Sample Loading Way	Capillary Tube Method
Temperature range	Ambient ~320℃
Min. Temperature Resolution	0.1℃
Ramp Rate	Stepless setting at 0.1℃~10℃/min
Ramp Rate Error	≤5%
Accuracy	±0.4℃（＜200℃）,±0.7℃（≥200℃）
Reproducibility	0.2℃（ramp rate 0.2℃/min） 0.3℃（ramp rate 1℃/min）
Heating/Cooling time	≤3mins/3mins（50℃~320℃）
Number of Capillaries	1
Capillary dimensions	Φ1.4mm outside dia., Φ1.0mm inside dia., 90mm lengths.
Fill height	3mm~5mm
Display	4.3 inch LCD
Communication interface	X
Print Function	X
Power supply	110/220±10%V AC, 50/60Hz/120W
Dimensions	345(L)X245(W)X215(H)mm
Weight	About 4.5kg
