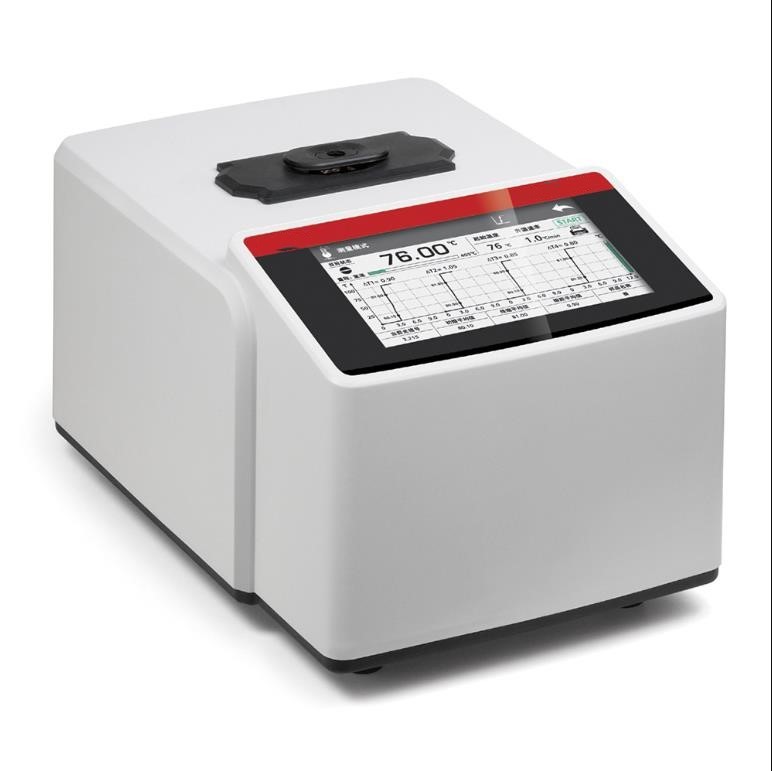

Laboratory Professional Type Micro Processor Melting Point Apparatus

Product Item : ZHIYI-805TS
Category： Other
Product description：Laboratory Professional Type Micro Processor Melting Point Apparatus
INQUIRY

Laboratory Professional Type Micro Processor Melting Point Apparatus

Fully Auto Measurement/0.2 Grade

The melting point of a substance is the temperature at which the material changes from a solid to a liquid state. In organic chemistry, melting point determination is not only the basic approach to determine the nature of material, but also an important method to obtain the purity of a substance. Therefore, melting point apparatus is widely used in the chemical industry and the medical research, and it's a must-have instrument in the manufacturing of medicine, spices, dyes and other organic crystal substances.

MAIN CHARATERISTICS

~7'inch HD color touch screen, display melting curve in real time

~Touch screen with intuitive operation

~Quickly and efficiently support auto test

~Unique digital temperature control technology with high accuracy

~Wider ramp rate with stepless speed

~Capillary tubes method conforms to pharmacopoeia

~Multiple points temperature calibration

~USB/RS232 can communicate with computer and printer

~Auto generate and store measuring report

~Up to 32 groups of preset measuring methods which help set working parameter quickly

~Two grades of user management. Support to edit passwords and multiple permission settings.

MAIN SPECIFICATIONS
MODEL	ZHIYI-805TS
Test Method	Fully automatic
Sample Loading Way	Capillary Tube Method
Temperature range	Ambient ~400℃
Min. Temperature Resolution	0.01℃
Ramp Rate	Stepless setting at 0.1℃~20℃/min
Ramp Rate Error	≤5%
Accuracy	±0.2℃（﹤200℃）±0.4℃（≥200℃）
Reproducibility	0.1℃（ramp rate 0.2℃/min） 0.2℃（ramp rate 1℃/min）
Heating/Cooling time	≈4mins/4mins（50~400℃）
Number of Capillaries	1
Capillary dimensions	Φ1.4mm outside dia., Φ1.0mm inside dia., 90mm lengths.
Fill height	3mm~5mm
Display	7" HD Colour touch screen，1024×600
Screen	display melting curve in real time
Communication interface	USB communication port，RS232printing port，USB port to export data
Print Function	Included
Measurement Report	Auto generate and store. Or store in PC via APP
User Management	Two grades：administrator+operator
Power supply	110/220±10%V AC，50/60Hz/120W
Dimensions (L ×W×H)	345X245X215mm
Weight	About 4.5kg
