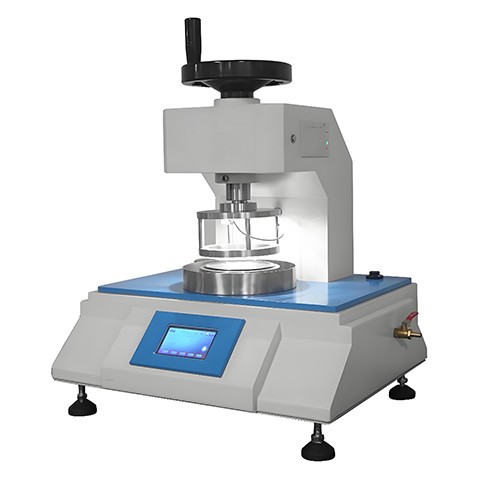

Hydrostatic Pressure Tester

Product Item : PT-500
Category： Textile Testing Equipment
Hydrostatic Pressure Tester
Hydrostatic Pressure Test Unit
Hydrostatic Testing Machine
Product description：Hydrostatic pressure tester is used for testing the water permeability resistance to the compact cloth such as canvas, linoleum, tenting, tarpaulin, non-woven fabrics, rain resistant dress fabrics, co
INQUIRY

Hydrostatic Pressure Tester Introduction

It is used for testing the water permeability resistance to the compact cloth such as canvas, linoleum, tenting, tarpaulin, non-woven fabrics, rain resistant dress fabrics, coating fabrics and so on.

Hydrostatic Pressure Tester Standards

AATCC 127 DIN 53886 JIS L1092

Hydrostatic Pressure Tester TECHNICAL DATA

Measuring range	500pa-200kpa
Accuracy	0.2%FS
Unit	Pa, Kpa, mmHg, cmH2O
Water column pressure increasing rate	10-300 cm/min
Sample chuck area	100cm2
Display unit	Pa
Water tank capacity	3.7L
External Dimensions	550x400x500
Weight	50kg
Power	1phase, AC220± 10%, 50 Hz
