Ion Meter-Laboratory Professional Type

Product Item : ZHIYI-806
Category： Other
Product description：Ion Meter-Laboratory Professional Type
INQUIRY

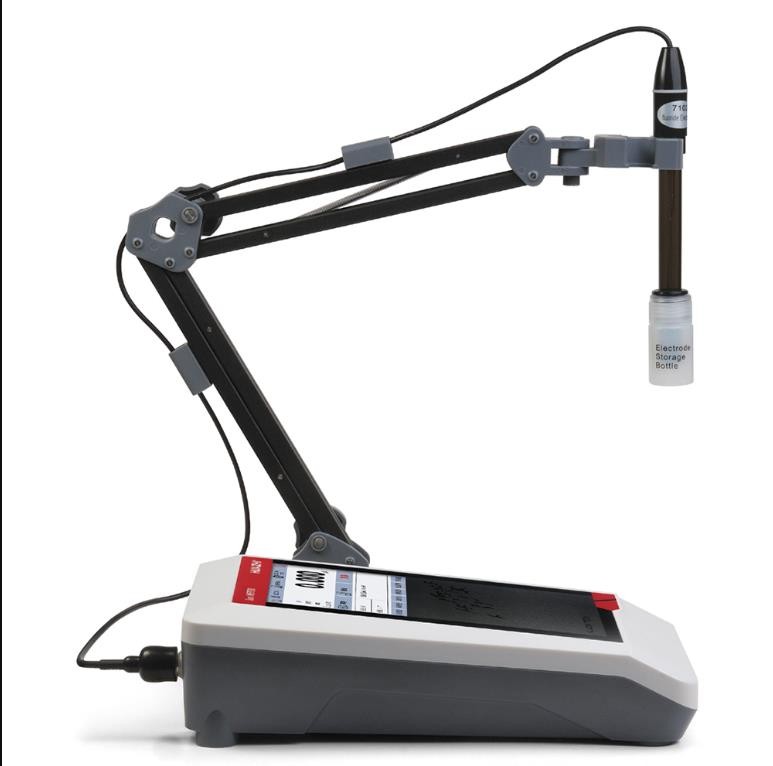

Laboratory Professional Type Ion Meter

5.0' Color Touch-screen/0.01 Grade

Ion meter is an electrochemical analysis instrument used to measure the ion concentration in solutions.

This full touch-screen ion meter is widely applied in environmental protection, disease control, quality inspection, sewage, pharmaceutical, food, scientific research, chemical industry, breeding, chemistry and biology and other fields.

Convenient Touch Operation

~Assist your daily lab work faster and reliable.

High Accuracy

~0.001 grade，higher than regular 0.01 grade from others.

~Standard Fluoride Electrode can be replaced by other types of ion measuring electrode.

Easy Operation

~10 kinds of pre-set internaltional standard solutions. Customized is supported.

~4 kinds of temp. Compensation and 3 kinds of end-point modes are optional.

~Imput known constant cell to calibrate the machine.

~2000 groups of measurement database which is auditable, trackable and managable.

Wider Applications

~ Support temp. Compensation of pure water

~Built-in variable types of ion and support customized ion.

Item No.		ZHIYI-806
Grade		0.001
Display		5.0 Inch color touch-screen
Measurement Mode		pX / mV / Ion concentration / Temperature
Range	pX	-2.000 ~ 20.000 pX
	mV	-2000.00 ~ 2000.00 mV
	Concentration Unit	1.00E-9 ~ 9.99E9 mg/L, g/L, mol/L, mmol/L,pX （ Optional）
	Temp	-30.0-135.0 °C （AT C / MTC）
Resolution	pX	0.001 / 0.01 / 0.1 pX （ Optional ）
	mV	0.01 / 0.1 / 1 mV （ Optional ）
	Concentration	0.001 / 0.01 / 0.1 （Optional）
	Temp	0.1 °C
Accuracy	pX	pX_ǀ : ± 0.002； pX_II : ±0.005
	mV	± 0.1 mV （ ± 0.005%F.S ）
	Concentration	C_ǀ : ± 0.3%； C_II : ± 0.5%
	Temp	±0.1°C
Calibration		1-5 points calibration. Calibration reminder（1-999 hours）.
Measurement Method		Direct(continuous measurement is supported), Sample addition, Standard addition, Gran addition
Ion Type		Built-in H+, Na+, K+, Ag+, NH4+, F-,Cl-,I-,NO3-,CN-,Ca2+, Cu2+, Pb2+, S2-； Self-defined ion type
Memory		2000 Measurements 10 electrodes x 1 calibration data(the last time)
Lab-Practice		Conforms to GLP requirement.
Endpoint Mode		Auto / Manual / Time, Selectable
Electrode Input		BNC, Impedance >3x10¹²Ω
Temp Input		Cinch, NTC 30KΩ
Output		RS232 & USB, Optional with printer
Power Supply		110~220V AC 50/60Hz, 9~12V DC
Housing Dimension		250 x 165 x 65 mm
Holder Movement		360° , High≈320mm,Radius≈400mm
