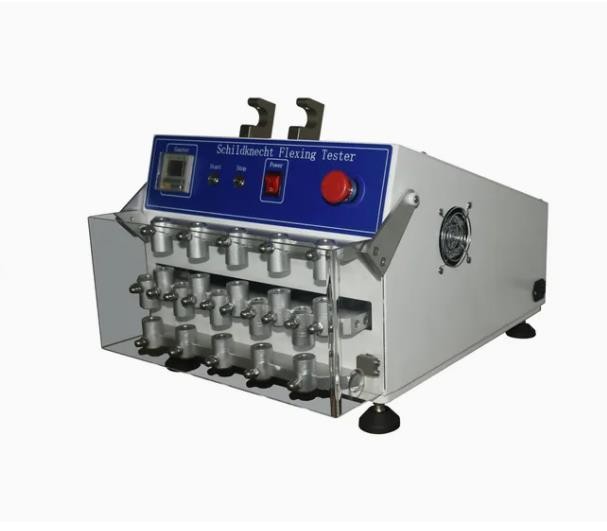

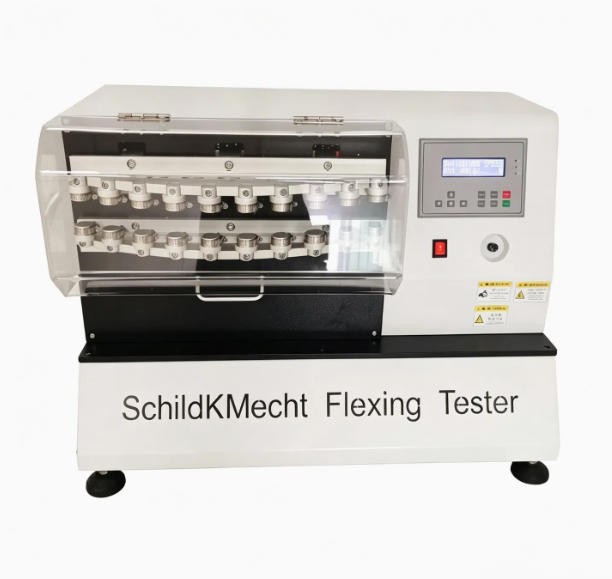

BS3424 Textile Testing Machine Schildknecht Flex Fatigue Test Machine

Product Introduction

The Schildknecht Type Flex Tester is used to evaluate reciprocating fatigueresistance performance of leather and coated fabrics (rubber / plasticcoated textile). It complies with ISO 7854 Method B, BS 34249 and GB/T 12586 (Method B) and BS 3424-9.

Working Principle
A rectangular specimen of coated fabric is wrapped around two opposite cylindrical supports to form a tubular sample. One cylinder performs linear reciprocating axial movement, making the tubular specimen undergo alternate compression and relaxation without twisting action. The test runs until preset cycles are completed or visible cracking / delamination / coating peeling occurs on the specimen.

Main Features

1. Cabinet surface adopts DuPont electrostatic powder coating, cured under 200°C for longterm antifading performance.
2. Support inching positioning adjustment and variable testing speed.
3. Key mechanical parts are made of anticorrosion structural aluminum alloy and stainless steel.
4. Precision drive motor ensures smooth and lownoise running.
5. Autostop by preset cycle count or testing time.
6. Highprecision bearings guarantee stable rotation and long service life.
7. Onetouch fullyautomatic test operation, userfriendly control.
8. Verticaltype structure facilitates sample mounting.
9. Available for simultaneous testing of 6 or 10 specimens synchronously.
10. Hinged transparent safety protective cover with safety interlock sensor; machine stops immediately once cover is opened for operator protection.
