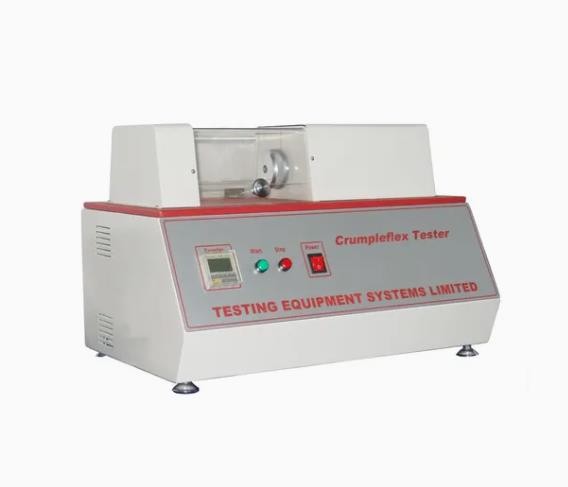

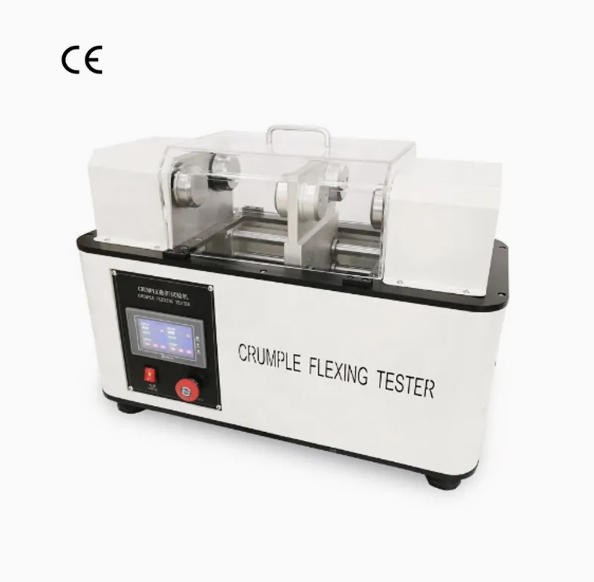

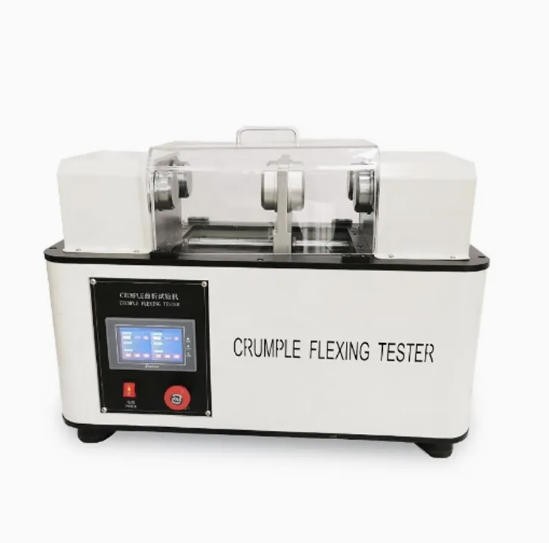

ISO7854 Crumple Flex Test Equipment

Product Item : ZHIYI-B34
Category： Textile Testing Equipment
Product description：ISO7854-Crumple-Flex-Test-Equipment
INQUIRY

Product introduction: This tester is suitable for testing the flexural damage resistance of rubber or plastic coated fabrics by the crease flexure method, and provides a reference for improving fabrics.
How it works: Sew long strips of coated fabric samples into a cylindrical shape. The coated fabric cylinder is placed and held in place between two discs, one reciprocating about 90° on its axis to twist the specimen and the other reciprocating along its axis to compress sample. After a certain number of twists and compressions or until the sample is obviously damaged, the flexural failure resistance of the sample is evaluated.
Accessories: sampling plate, throat hoop.
According to the standard: BS 3424 P9, ISO 7854-B, GB/T 12586

Test Positions	1 group/2 groups/4 groups
Disc	diameter 63.5mm, width 15mm
Rotation speed	200±10r/min (3.33Hz±0.17Hz)
Rotation angle	90°±2°
Compression speed	152±4r/min (2.53Hz±0.07Hz)
Compression stroke	70mm
Distance from inner side of cylinder flange	Max.180mm±3mm
Sample size	220mmx190mm, one piece each in warp and weft
Specimen suture size	cylindrical, length 190mm, inner diameter 64mm
Count	0~999 999 times can be set
Volume (WxDxH)	60x44x42cm
Weight	60Kg
Power supply	1∮ AC 220V 50Hz 3A
