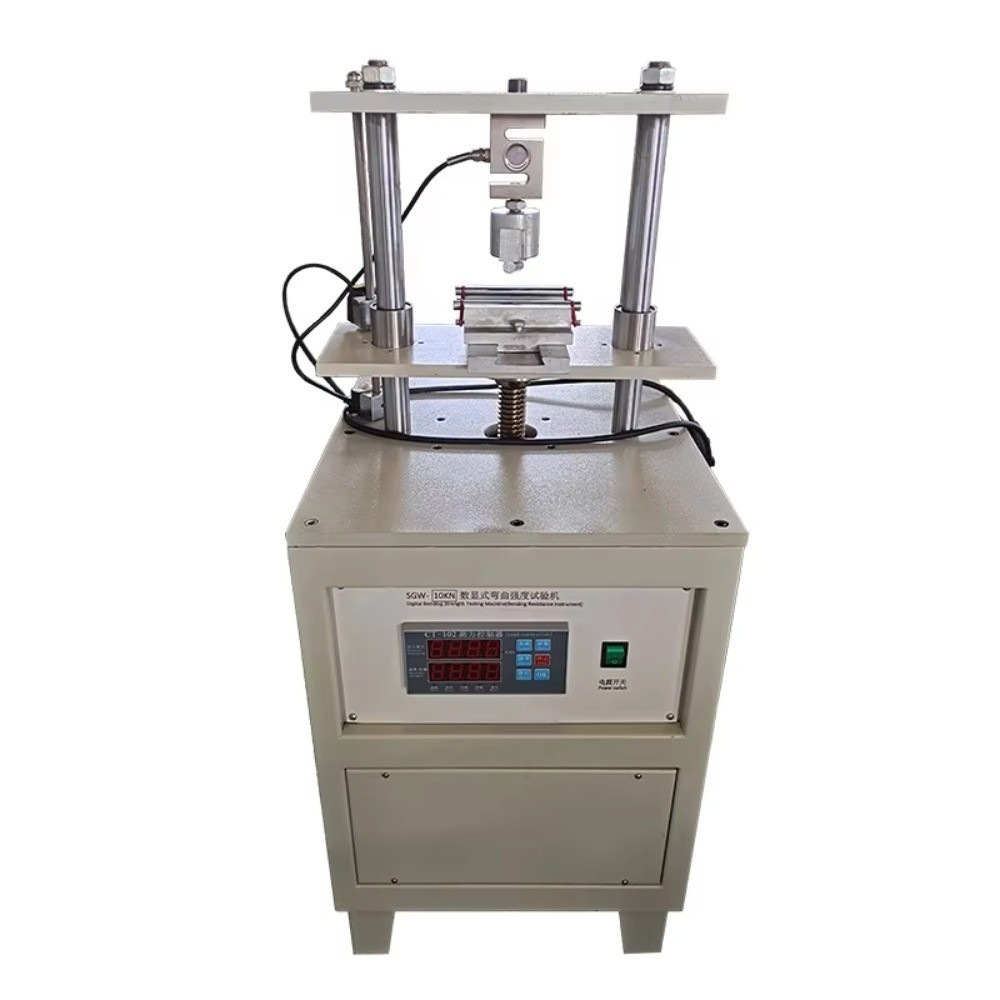

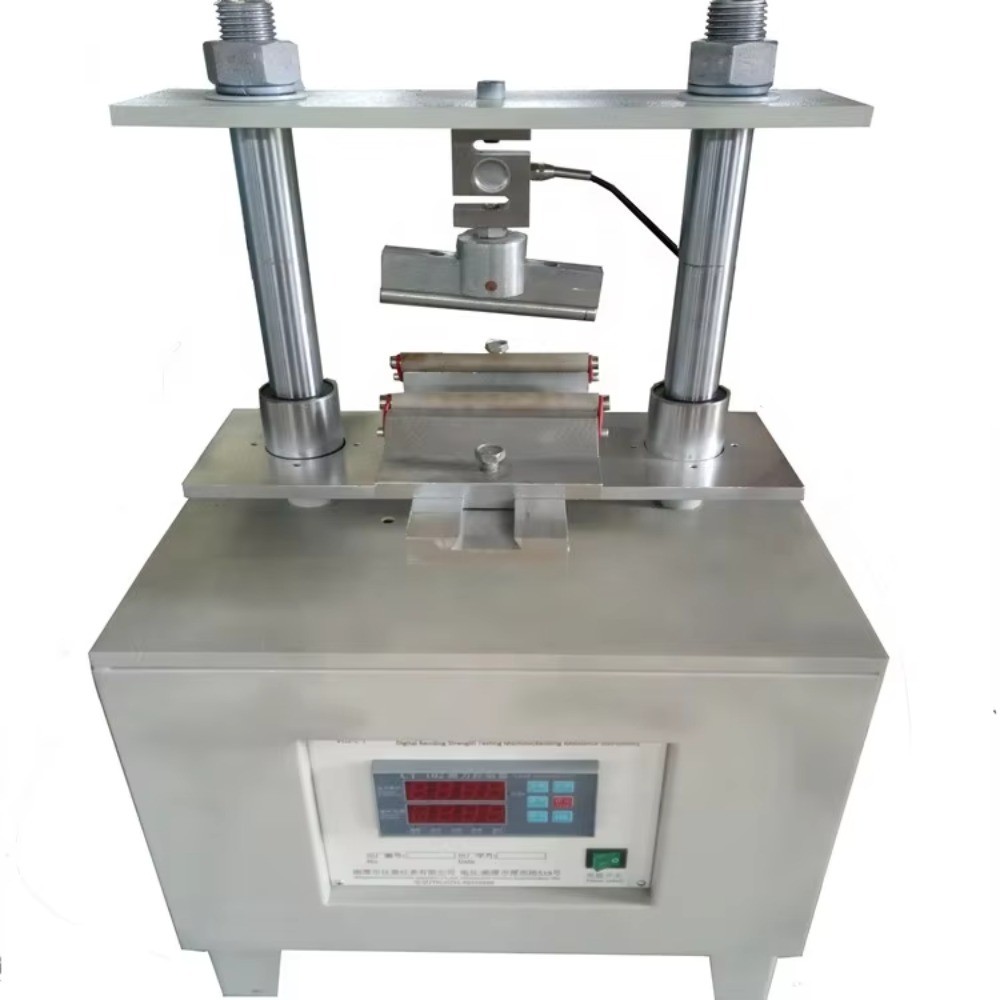

Bending Strength Tester

Product Item : ZYBT-310
Category： Other
Bending Strength Tester
bend test
Bend Testing
Bending strength tester price
Product description：The instrument meets the requirements of YB/T5201-1993 "Test Method for Flexural Strength and Compressive Strength of Dense Refractory Castables at Room Temperature" and GB/T3001-2017 "Test Method for
INQUIRY

Product Introduction

The instrument is designed for testing bending strength (i. e., bending strength) refractories, thermal insulation, ceramics, and gypsum board and other similar non-metallic materials.

Standard

B/T5201-1993 Test Method for Flexural Strength and Compressive Strength of Dense Refractory Castables at Room Temperature

GB/T3001-2017 "Test Method for Flexural Strength of Refractory Materials at room temperature

Technical Data

Model	ZYBT-310
Maximum Load	50-7kn/min (adjustable)
Loading Rate
The pressure gauge digital display	automatically stop when it breaks, and keep the maximum pressure value displayed;
Sample Size	≤ 230 × 114 × 75 mm (other sizes of fixtures can be customized according to customer requirements),
Data Microcomputer Processing Accuracy	0.5%
Voltage	220V / 380V (above 20000N specification)
